Second Row Seat Backrest Heater Element (G2308495): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the second row seat backrest cover.
Refer to: SECOND ROW SEAT BACKREST COVER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

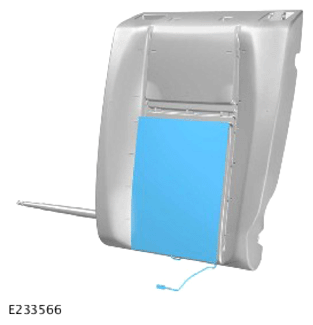

Remove the second row seat backrest heater element.
