Second Row Seat Backrest (G2308494): Removal

NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS .

  2. Remove the second row seat backrest cover.

    Refer to: SECOND ROW SEAT BACKREST COVER .

  3. G14458381Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the second row seat backrest heater element.

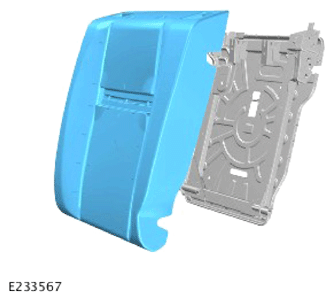

  4. G14458382Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the second row seat backrest.
