Front Row Seat Cushion Blower (G2308081): Removal
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Remove the front row seat.
Refer to: FRONT ROW SEAT .
- Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .

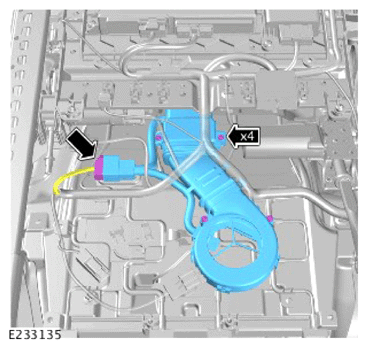

- Disconnect the electrical connector.
- Remove the 4 bolts.
- Remove the front row seat cushion blower.
