Front Row Seat Backrest Cover - Vehicles With: Climate Controlled Seats (G2308093): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front row seat backrest trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

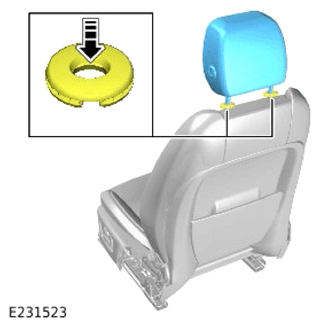

Release the 2 access covers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

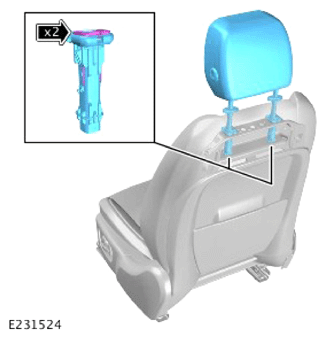

- Release the 2 clips.
- Remove the front head restraint.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

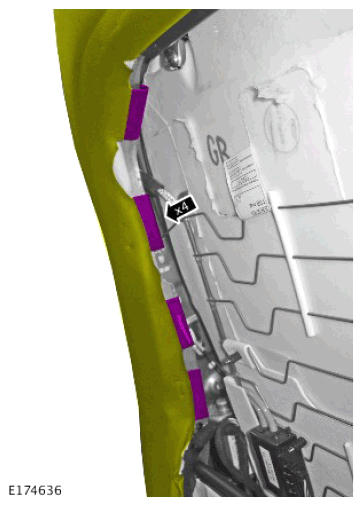

Release the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

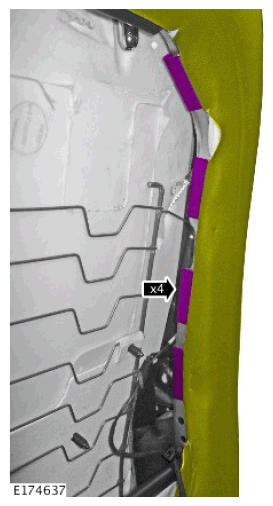

Release the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

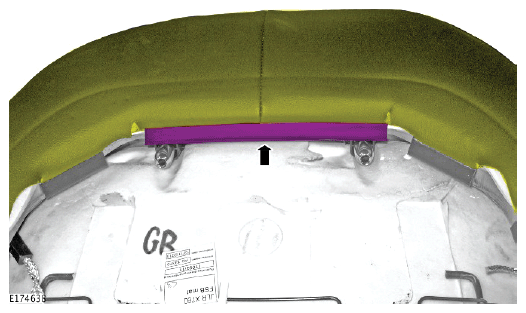

Release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the side airbag electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

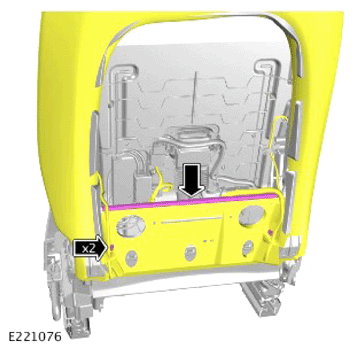

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

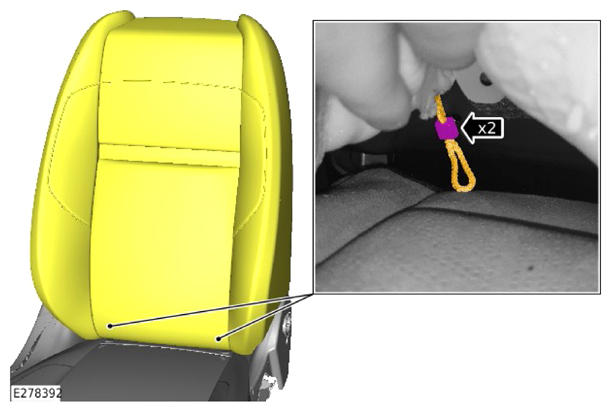

Release the 2 retainers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

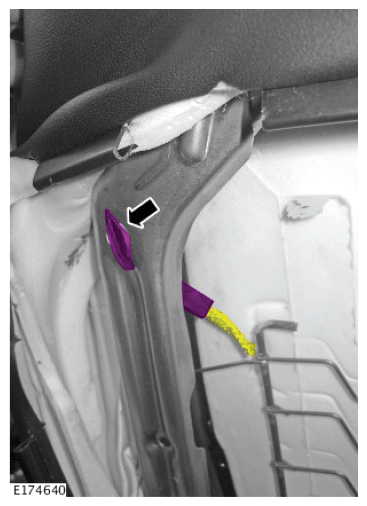

Release the retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

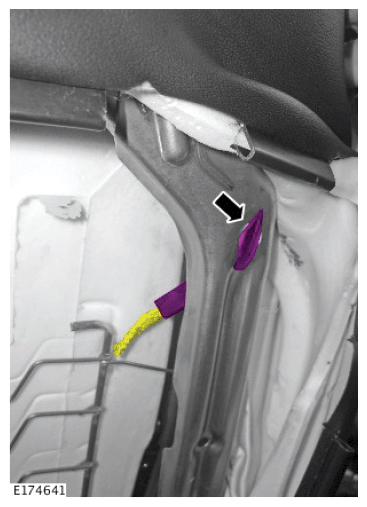

Release the retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

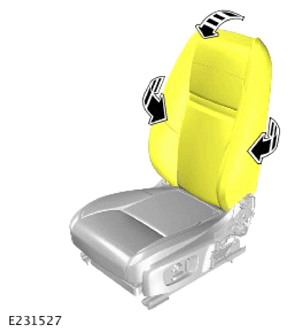

Release the front row seat backrest cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

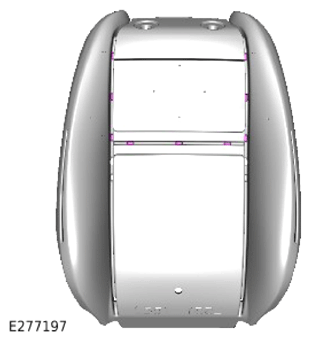

- Remove and discard the 9 hog rings.
- Remove the front row seat backrest cover.
