Front Row Seat Backrest Cover - Vehicles With: Climate Controlled Seats (G2308093): Installation

NOTE:
- Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
- Make sure that new hog rings are installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the front row seat backrest cover.

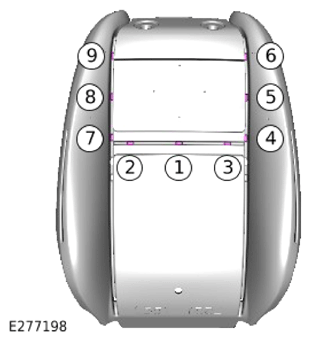

- Install the 9 hog rings in the sequence shown.
  General Equipment: hog ring plier

  Renew Part: Hog rings Quantity: 9 .
Install the 12 clips and 4 retainers reversing the sequence shown in the removal steps.
Install and tighten the 2 nuts.
Torque : 8.5 Nm
Connect the side airbag electrical connector.
Install the front head restraint.
- Visually inspect the front row seat backrest cover is correctly installed.
- If the front row seat backrest cover is not visually correct, reposition the front row seat backrest cover as required.
Install the front row seat backrest trim panel.
Connect the startup battery ground cable.
Refer to: SPECIFICATIONS .
