Front Row Seat (G2298869): Removal

WARNING:

To prevent accidental deployment, you must de-energize the power in the Restraints Control Module (RCM). Wait at least 2 minutes after you disconnect the startup battery ground cable before you do any work on, or adjacent to, the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
Always wear safety glasses when working on an airbag equipped vehicle and when handling an airbag. Failure to follow this instruction may result in personal injury.
Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Move the front row seat backwards.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

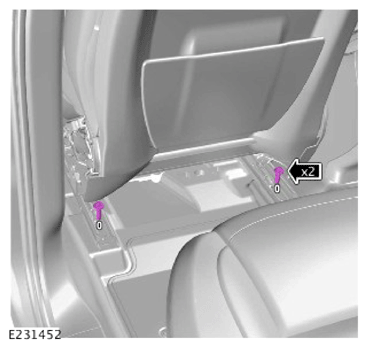

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

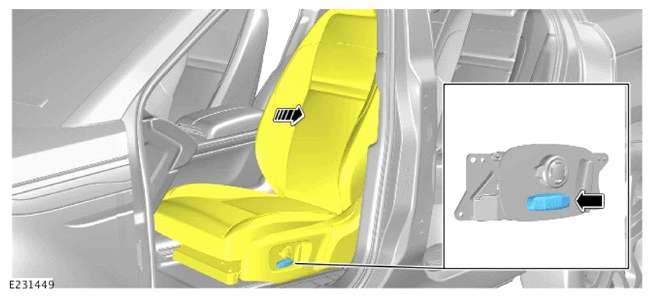

Move the front row seat fully forward.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

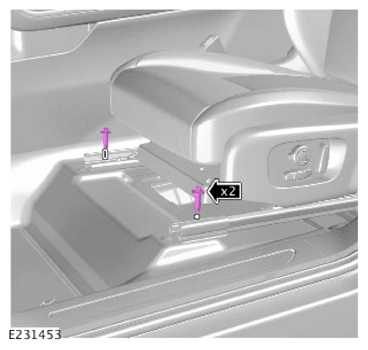

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front row seat outer trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

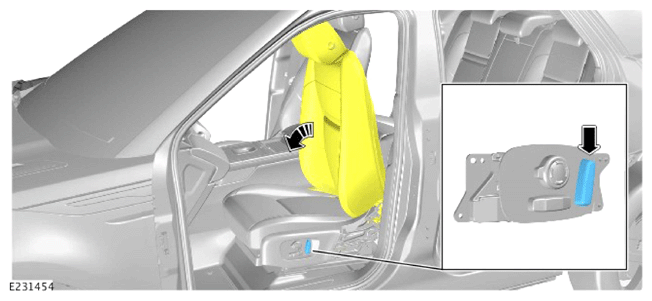

Fold the front row seat.
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the front row seatbelt pretensioner electrical connector.
- Remove and discard the bolt.
- Remove the front row seatbelt pretensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

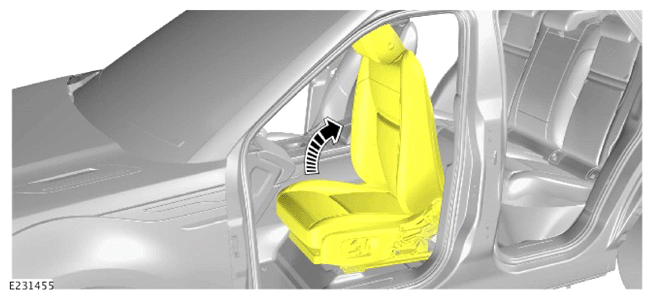

Release the front row seat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

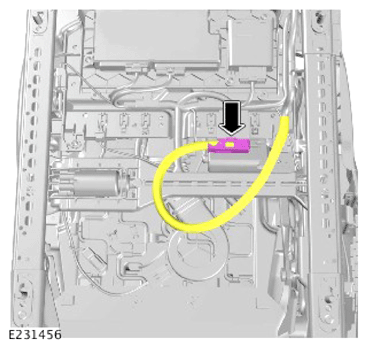

Disconnect the main wiring harness electrical connector.
CAUTION:
- Protect the surrounding trim to avoid damage.
- Protect the surrounding paintwork to avoid damage.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

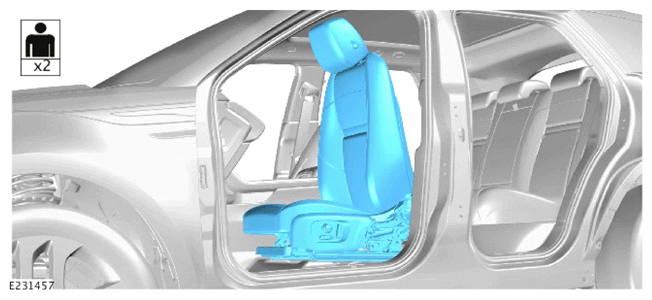

With assistance, remove the front row seat.
