Seat Memory SWITCHPACK - If Equipped

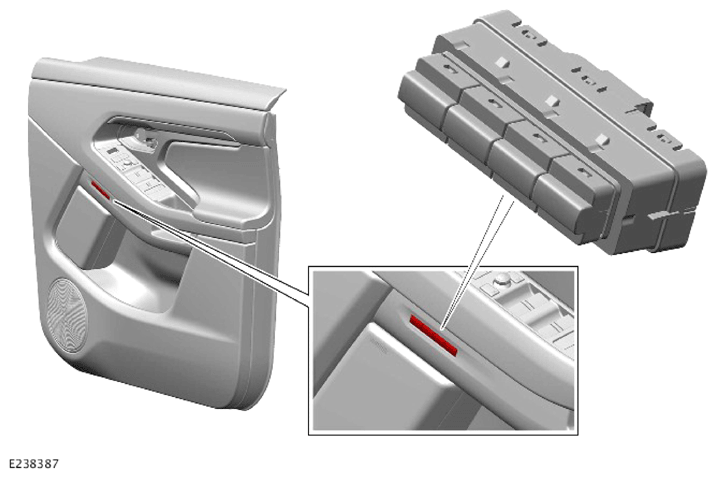

The seat memory switchpack is located in the door trim panel.
The selected memory position is transmitted from the seat memory switchpack to the Driver Door Module (DDM) or the Passenger Door Module (PDM). The DDM connects to the Driver Seat Module (DSM), the PDM connects to the Passenger Seat Module (PSM). The switches on the seat memory switchpack are resistive ladder type. The switches apply a different voltage to the DDM or the PDM in response to different switches being operated. The related seat module then operates the seat adjustment motors to the correct positions associated with that memory preset position.
The memory function will also store the steering column and door mirror positions associated with the selected memory preset switch 1 to 3.
To store a memory position, move the seat, the steering column and the door mirrors to the required positions, and press the 'M' switch on the seat memory switchpack. Then press the memory preset switch 1 to 3 to store the position against the selected memory switch preset number.
