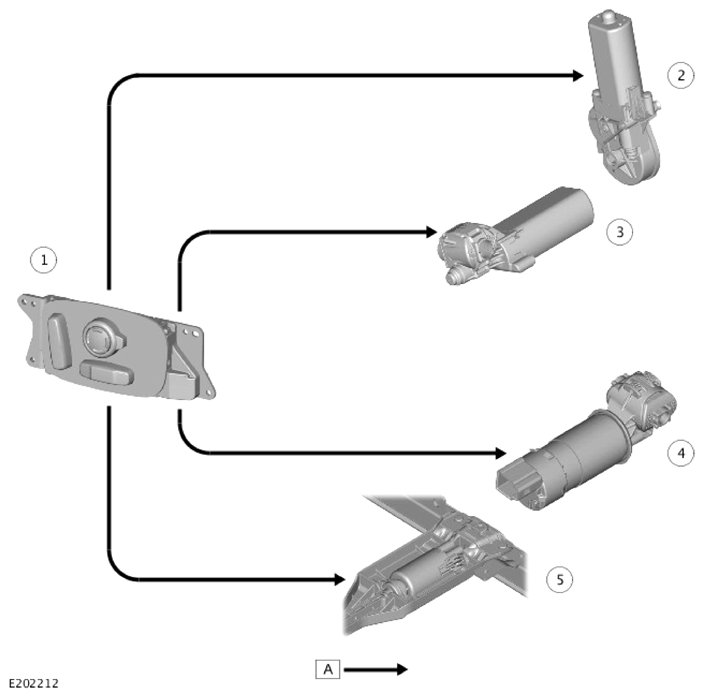

Seat Adjustment - 8-Way Front Seats Without Seat Memory

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = HARDWIRED.

ITEM	DESCRIPTION
1	Front row seat switchpack
2	Seat backrest recline motor
3	Seat height motor
4	Seat cushion tilt motor
5	Seat forward/rearward motor
