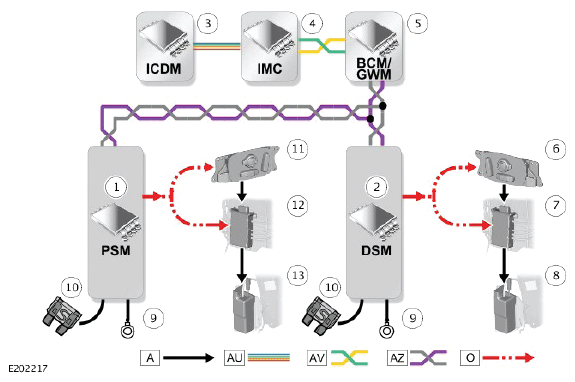

Massage Seats - If Equipped
A = HARDWIRED: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AZ = HS CAN BODY SYSTEMS BUS: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Passenger Seat Module (PSM) |
| 2 | Driver Seat Module (DSM) |
| 3 | Interactive Control Display Module (ICDM) |
| 4 | Infotainment Master Controller (IMC) |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Driver seat switchpack |
| 7 | Driver seat massage master massage solenoid |
| 8 | Driver seat lumbar/massage air pump |
| 9 | Ground |
| 10 | Power supply |
| 11 | Passenger seat switchpack |
| 12 | Passenger seat master massage solenoid |
| 13 | Passenger seat lumbar/massage air pump |
