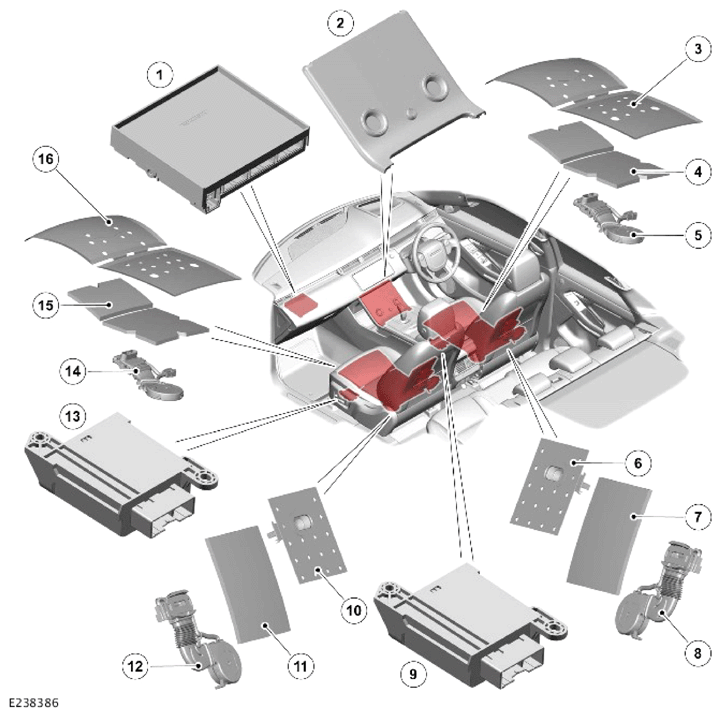

| 1 |
HVAC control module |
| 2 |
Interactive Control Display Module (ICDM) |
| 3 |
Driver climate seat cushion |
| 4 |
Driver seat cushion insulator foam |
| 5 |
Driver seat cushion climate assembly |
| 6 |
Driver climate seat backrest |
| 7 |
Driver seat backrest insulator foam |
| 8 |
Driver seat backrest climate assembly |
| 9 |
Driver Seat Climate Control Module (DSCCM) |
| 10 |
Passenger climate seat backrest |
| 11 |
Passenger seat cushion insulator foam |
| 12 |
Passenger seat backrest climate assembly |
| 13 |
Passenger Seat Climate Control Module (PSCCM) |
| 14 |
Passenger seat cushion climate assembly |
| 15 |
Passenger seat cushion insulator foam |
| 16 |
Passenger climate seat cushion |
