Rear View Mirrors (G1809583)

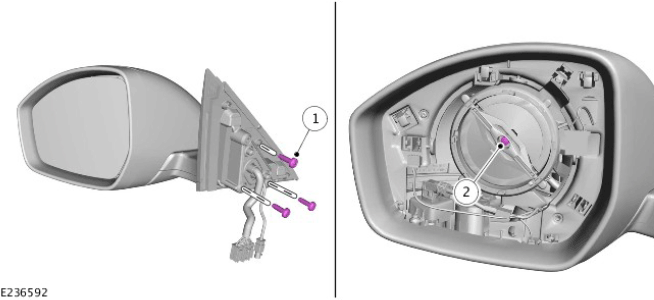

COMPONENT TORQUE LOCATION
G12536197Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Door mirror bolts 9 - 80
2 Door mirror motor assembly bolt 1.2 - 11
