Instrument Panel And Console (G2320142)

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN
1	Floor console ambience lighting LED bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

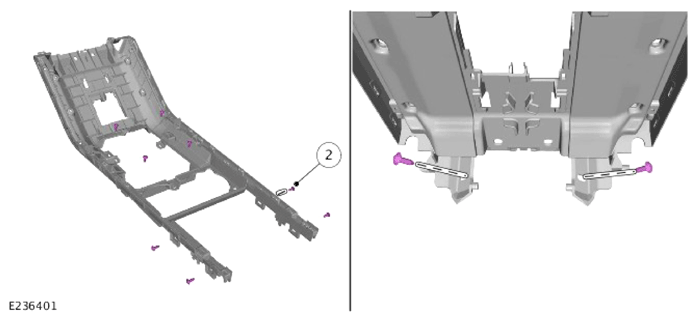

2	Floor console upper trim bolts	1.9	-	17

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

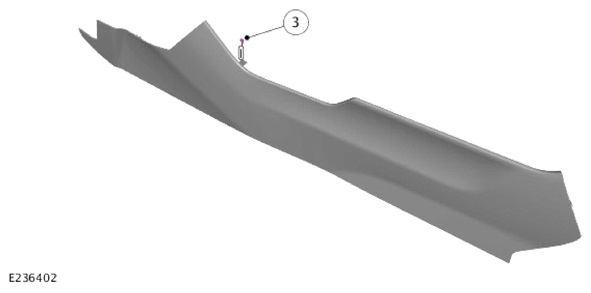

3	Floor console side trim bolts	1.9	-	17

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

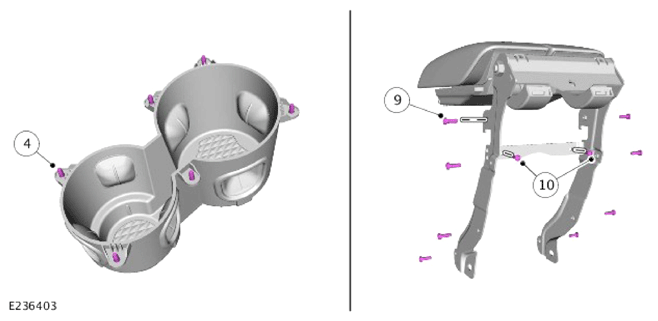

4	Cup holder screws	1.5	-	13
9	Floor console stowage compartment lid side bolts	1.9	-	17
10	Floor console stowage compartment lid rear bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

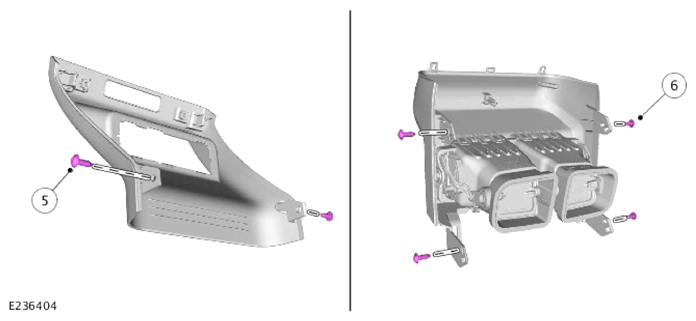

5	Floor console rear trim panel bolts	1.9	-	17
6	Rear center vent screws	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

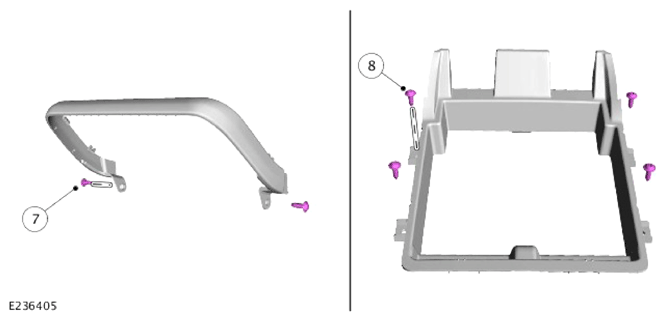

7	Floor console stowage compartment lid hinge cover screws	1.5	-	13
8	Floor console stowage compartment trim screws	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

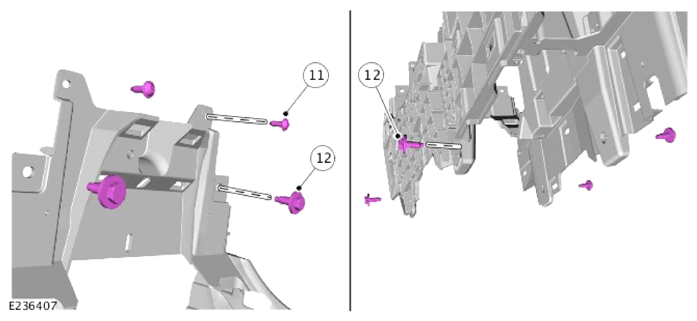

11	Floor console front screws	1.9	-	17
12	Floor console M6 bolts	4.5	-	40

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

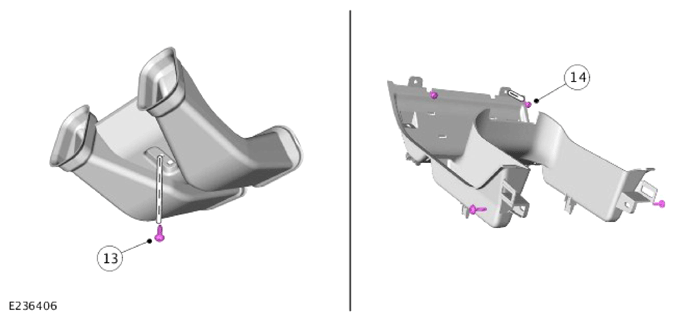

13	Floor console rear air duct screws	1.5	-	13
14	Floor console center trim	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

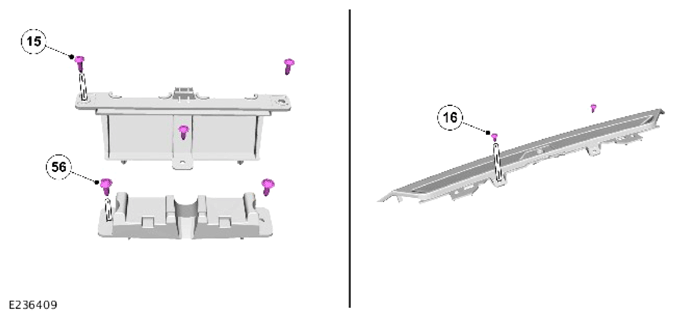

15	Floor console mounting bracket bolts	1.5	-	13
16	Demist vent trim panel screws	1.5	-	13
56	Floor console middle bracket screws	1.9	-	17

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

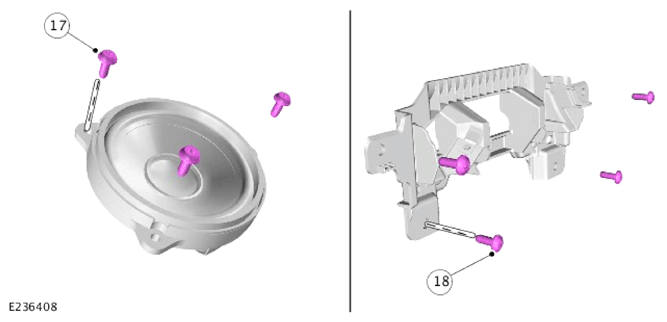

17	Instrument panel speaker screws	1.5	-	13
18	Instrument panel center carrier screw	4.8	-	42

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

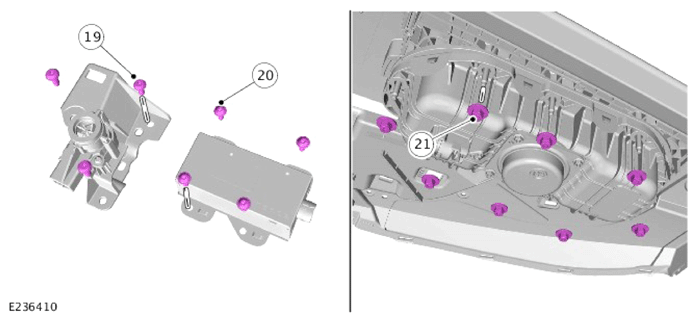

19	In-vehicle temperature sensor bolts	1.5	-	13
20	Air Ionizer screws	1.5	-	13
21	Passenger airbag nuts	6.2	-	55

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

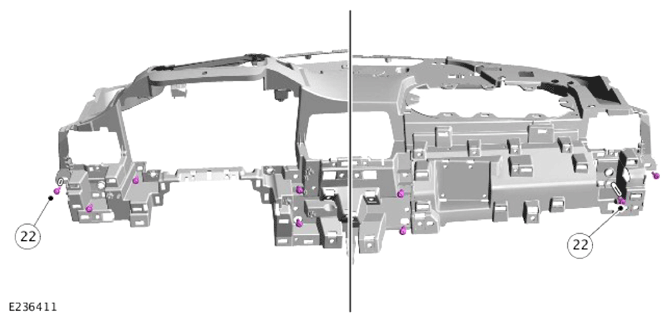

22	Instrument panel bolts	8	-	71

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

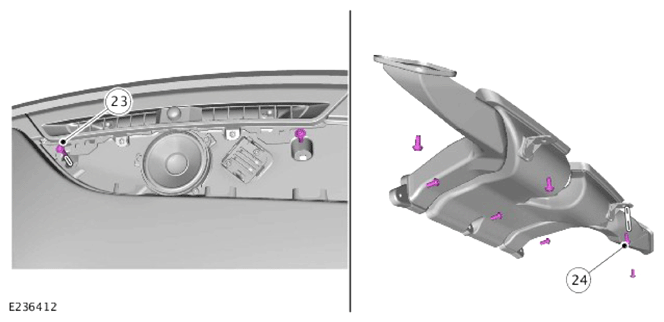

23	Instrument Panel bolts	1	9	9
24	Demist vent air duct bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

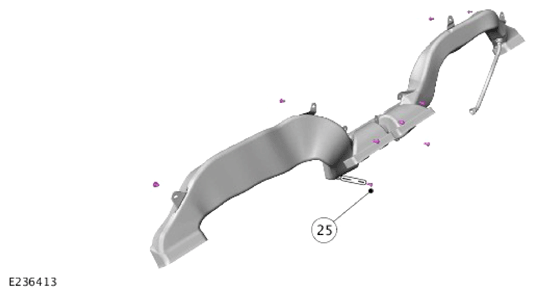

25	Face vent air duct screws	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

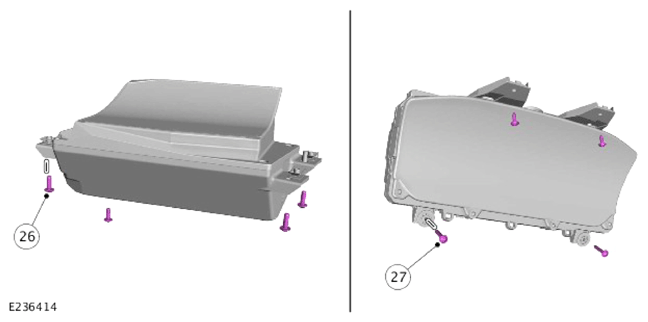

26	Head Up Display (HUD) bolts	4.8	-	42
27	Instrument Cluster (IC) bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

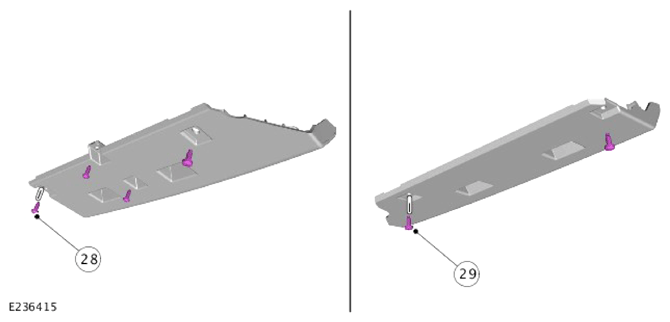

28	Driver side instrument panel footwell trim bolts	1.5	-	13
29	Passenger side footwell trim bolts	6.2	-	55

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

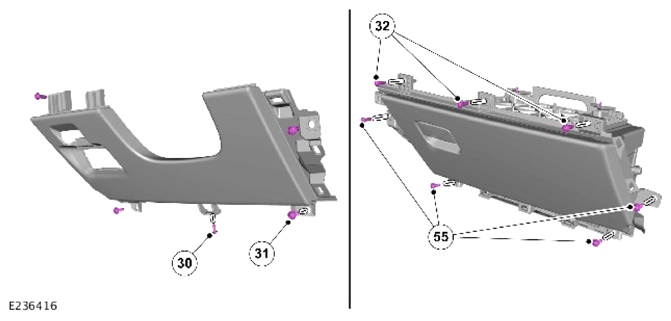

30	Instrument panel lower trim panel bolts	8	-	71
31	Instrument panel lower trim panel screw	1.5	-	13
32	Glove box upper screws	8	-	71
55	Glove box lower screws	4.8	-	42

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

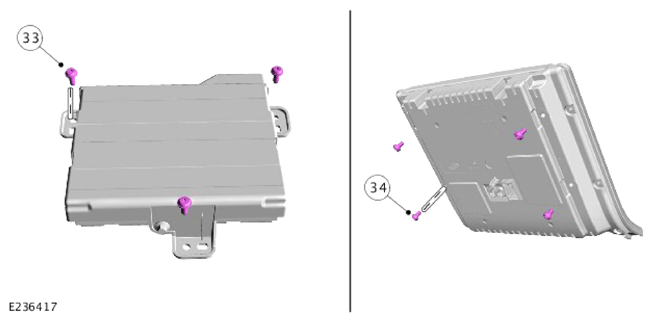

33	HVAC control module bolts	1.9	-	17
34	Lower Integrated Control Panel (ICP) bolts	1.3	-	12

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

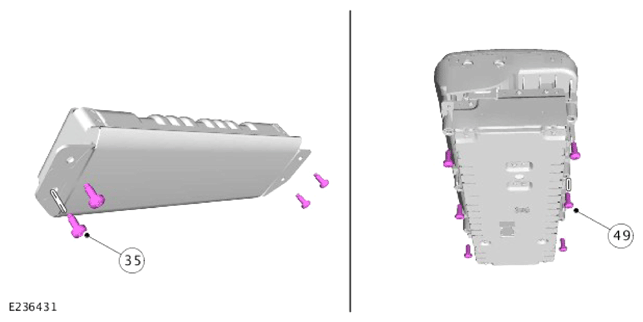

35	Driver side lower air bag module screws	4.8	-	42
49	Upper Interactive Control Display Module (ICDM) bolts	5	-	44

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

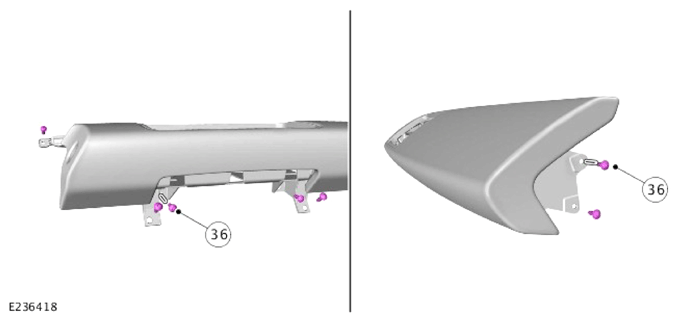

36	Instrument panel center trim panel bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

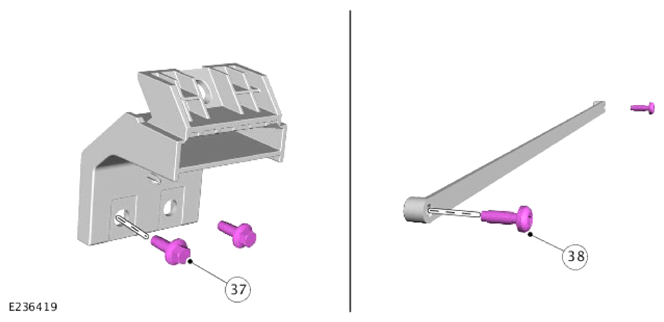

37	Instrument panel bracket bolts	4.8	-	42
38	Instrument panel cross-car beam center bracket bolts	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

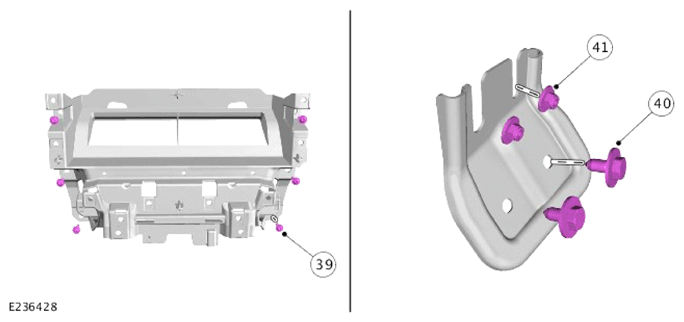

39	Instrument panel inner bracket bolts	8	-	71
40	Instrument panel cross-car beam lower bracket bolts	25	18	-
41	Instrument panel cross-car beam lower bracket nuts	5	-	44

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

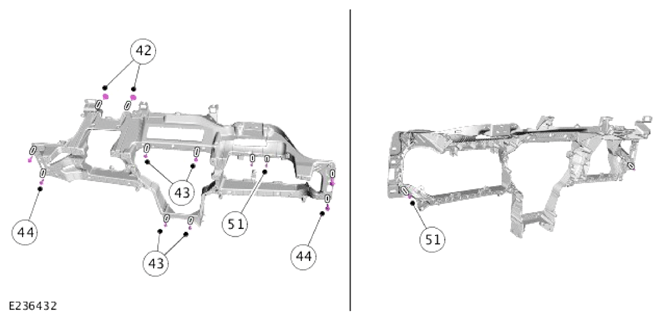

42	Instrument panel cross-car beam outer bolts	25	18	-
43	Instrument panel cross-car beam center bolts	6.2	-	55
44	Instrument panel cross-car beam side bolts	10	7	-
51	Instrument panel wiring harness ground cable bolts	8	-	71

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

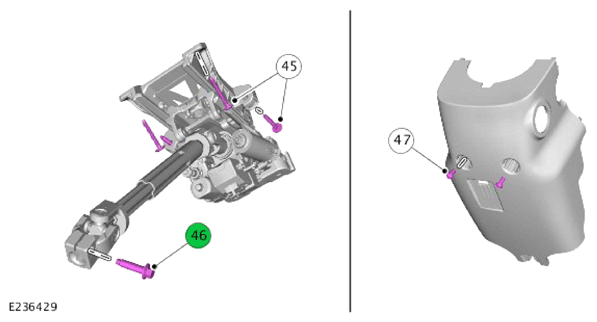

45	Steering column assembly bolts	25	18	-
46	Steering column intermediate shaft lower bolt	30	22	-
47	Steering column lower trim panel bolts	1.5	-	13

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

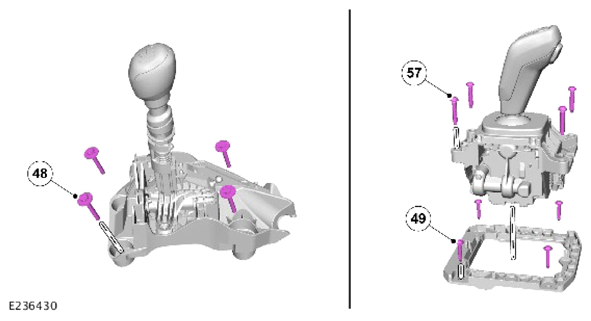

48	Selector lever assembly bolts	10	7	-
49	Transmission Control Switch (TCS) bracket to floor console screws	1.5	-	31
57	Transmission Control Switch (TCS) to bracket screws	3.2	-	28

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

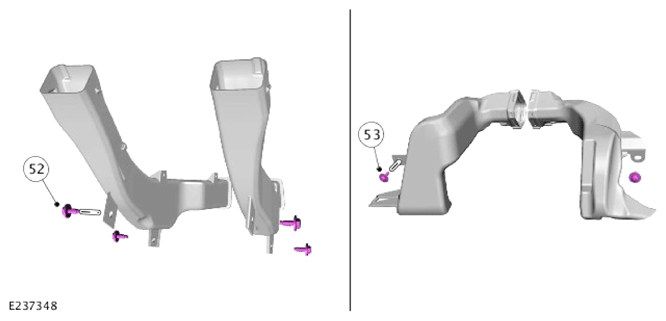

52	Floor console left and right side air duct bolts	5.4	-	48
53	Front footwell air duct bolts	6	-	53

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

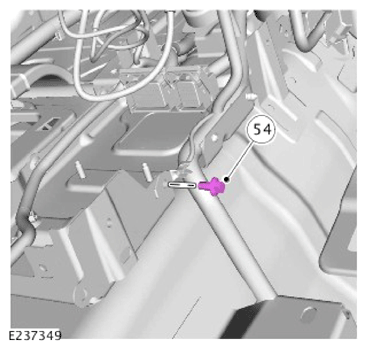

54	Floor console wiring harness ground cable bolt	12	9	-
