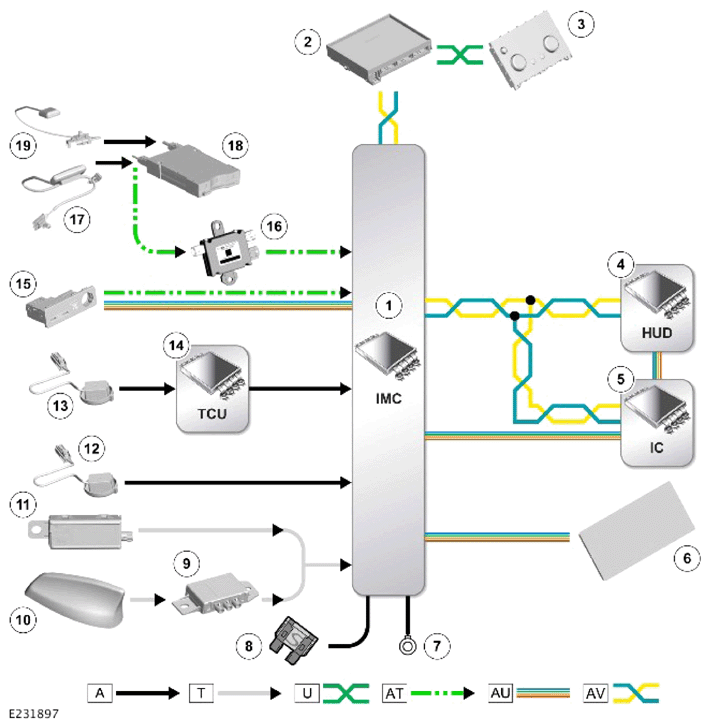

Control Diagram -
A = HARDWIRED: T = CO-AXIAL: U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS: AT = UNIVERSAL SERIAL BUS (USB): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AV = HIGH SPEED (HS) CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Infotainment Master Controller (IMC) |
| 2 | HVAC control module |
| 3 | Integrated Control Panel (ICP) |
| 4 | Head Up Display (HUD) (if equipped) |
| 5 | Instrument Cluster (IC) |
| 6 | Touchscreen (TS) |
| 7 | Ground |
| 8 | Power supply |
| 9 | Global Navigation Satellite System (GNSS) signal splitter |
| 10 | Roof pod - GNSS antenna |
| 11 | Frequency Modulation (FM)/Vehicle Information and Communication System (VICS) antenna amplifier |
| 12 | Microphone - Vehicles without telematics |
| 13 | Microphone - Vehicles with telematics |
| 14 | Telematics Control Module (TCU) |
| 15 | Front portable media interface panel |
| 16 | Universal Serial Bus (USB) 2.0 hub |
| 17 | VICS beacon antenna (Japan only) |
| 18 | Electronic toll collection module (Japan only) |
| 19 | Electronic toll collection module antenna (Japan only) |
