Instrument Cluster (G2319898)

COMPONENT TORQUE LOCATION

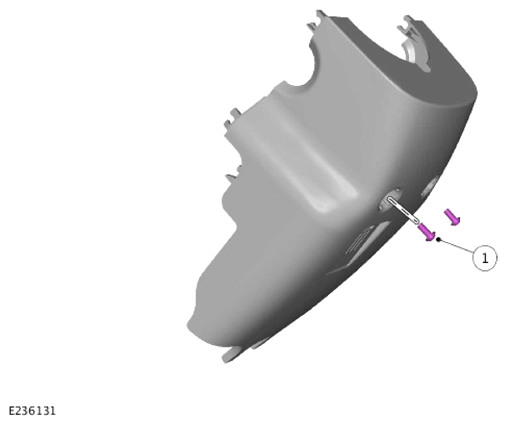

G14454020Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

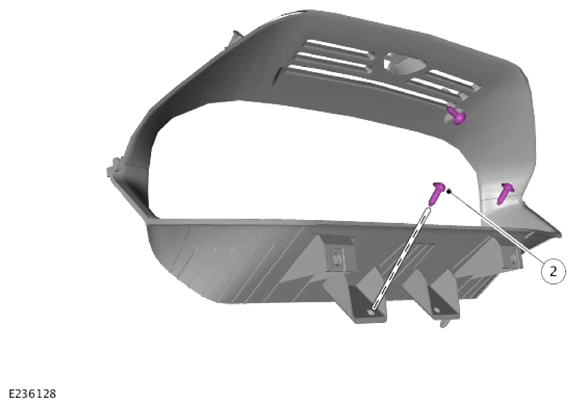

G14454021Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

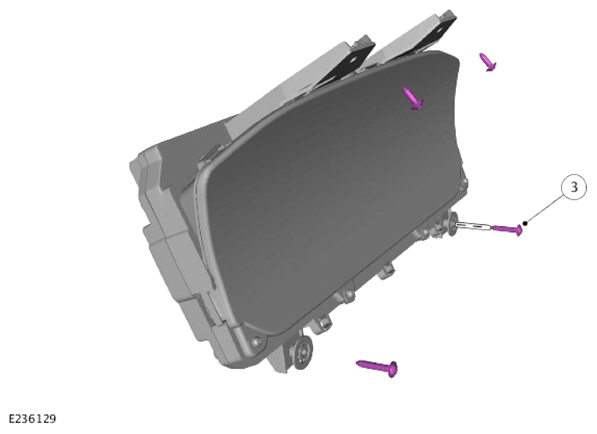

G14454022Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

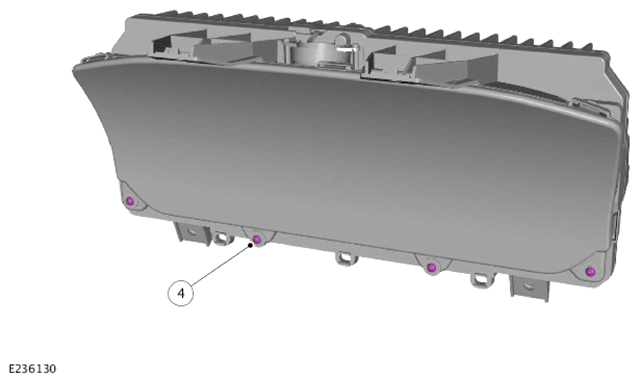

G14454023Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Steering column lower trim screws 5 - 44
2 Access panel screws 2 - 17
3 Instrument cluster screws 5 - 44
4 Instrument cluster lens screws 2 - 17
