Auxiliary Coolant Pump - ATF Cooler

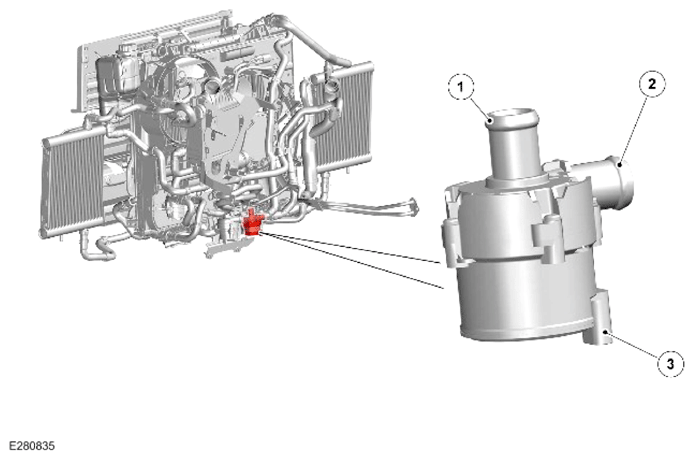

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - ATF cooler |
| 2 | Hose connection - Pressure operated 1-way valve |
| 3 | Electrical connector |
The auxiliary coolant pump is an electric pump attached on a bracket, at the front side of the engine.
When the engine is running the auxiliary coolant pump provides engine coolant flow to support the ATF cooling.
The auxiliary coolant pump has a 3 pin connector:
- Power supply receive from a fused output from the EJB .
- Connect to the PCM .
- Connect to the Ground.
