Compressor RECIRCULATION Valve
WARNING: This page is about a different variant/trim than selected.

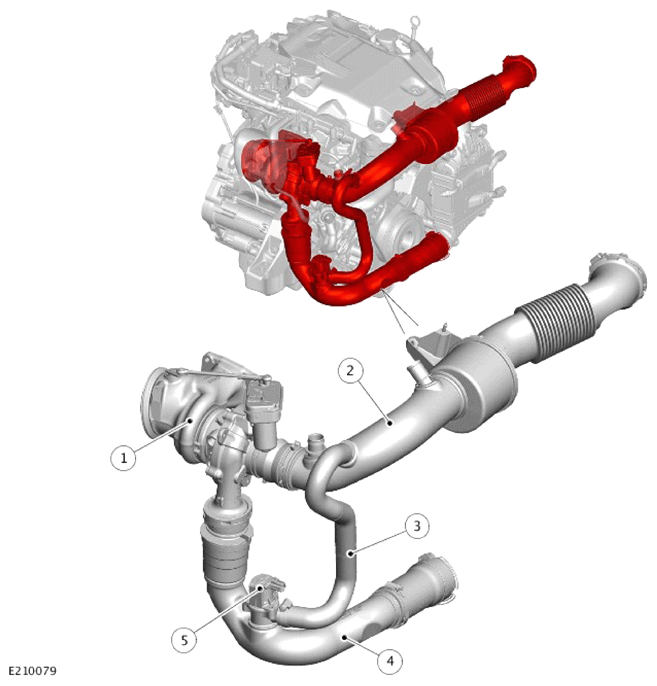

| ITEM | DESCRIPTION |
|---|---|
| 1 | Turbocharger |
| 2 | Clean air intake pipe |
| 3 | CRV hose |
| 4 | Charge air pipe |
| 5 | CRV valve |
The CRV is located in the charge air pipe and secured with 3 screws. The charge air pipe connects the compressor outlet and the charge air cooler. The CRV is controlled with a PWM signal by the PCM .
During a quick throttle closing event the CRV prevents the charge air flow from turning around and flowing through the compressor, which would cause compressor surge. The CRV allows the pressurized air to recirculate from the charge air pipe to the compressor intake, preventing compressor surge during the quick throttle closing events.
