Compressor RECIRCULATION Valve
WARNING: This page is about a different variant/trim than selected.

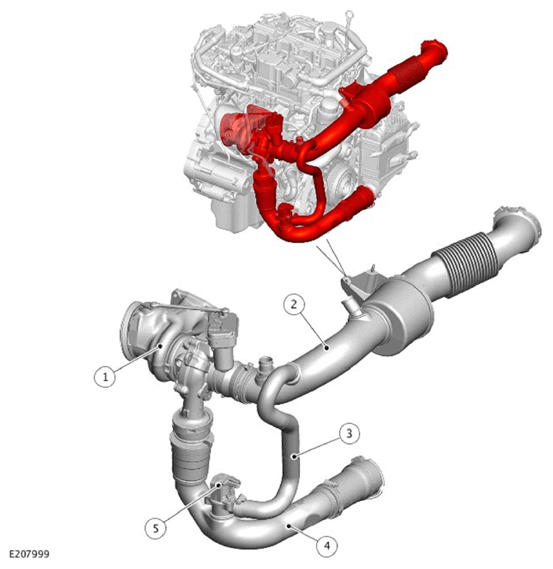

| ITEM | DESCRIPTION |
|---|---|
| 1 | Turbocharger |
| 2 | Clean air duct |
| 3 | Compressor Recirculation Valve (CRV) hose |
| 4 | Charge air duct |
| 5 | CRV valve |
The Compressor Recirculation Valve (CRV) is located in the charge air duct and secured with 3 screws. The charge air duct connects the compressor outlet and the charge air cooler. The CRV is controlled with a PWM signal by the Powertrain Control Module (PCM).
During a quick throttle closing event the CRV prevents the charge air flow from turning around and flowing through the compressor, which would cause compressor surge. The CRV allows the pressurized air to recirculate from the charge air duct to the compressor intake, preventing compressor surge during the quick throttle closing events.
