General Equipment

WARNING: This page is about a different variant/trim than selected.
EQUIPMENT NAME
Engine stand
Hydraulic jib crane
WARNING: Be prepared to collect escaping engine coolant.
CAUTION:
  • Be prepared to collect escaping fuel.
  • Be prepared to collect escaping oil.
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions, before any repairs are done to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  3. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  4. Remove the hood.

    Refer to: HOOD

  5. Remove the transmission.

    Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL

  6. Remove the Air Conditioning (A/C) compressor.

    Refer to: AIR CONDITIONING COMPRESSOR - INGENIUM I4 2.0L PETROL

  7. Remove the secondary bulkhead center panel.

    Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL

  8. G15319908Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the wiring harness clip.

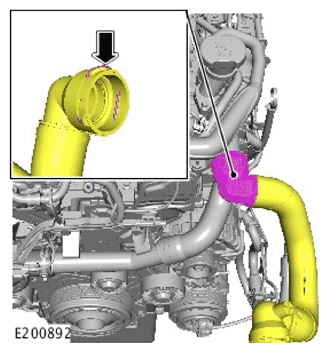

  9. G12004855Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the engine coolant hose.

  10. G15319910Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 engine coolant hoses.

  11. G15319911Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 engine coolant hoses.

  12. G12004858Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the Low Pressure (LP) fuel line.
    • Disconnect the breather pipe.
  13. G15319913Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the closing panel.
  14. G15319914Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the bolt.
    • Disconnect the 2 electrical connectors.
    • Release the wiring harness clip.
    • Release the wiring harness grommet.
  15. G12004861Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1633-01

    • Install and tighten the 2 bolts.

      Torque  : 25 Nm

  16. G12004862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the nut.

  17. G12004863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the nut.

  18. WARNING: This step requires the aid of another technician.
    G15319918Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1633-01

    • Use the special tool and a suitable hydraulic jib crane to carefully remove the engine.

      General Equipment: Hydraulic jib crane

  19. G12002744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the bracket.
  20. G14055513Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1673

    • Install and tighten the 4 bolts.

      Torque  : 40 Nm

  21. G14055514Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine assembly onto a suitable engine stand.

      General Equipment: Engine stand

    • Remove the hydraulic jib crane.

      General Equipment: Hydraulic jib crane

    • Remove the special tool.

      Special Tool(s): JLR-303-1633-01
