Engine - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2422511): Part(S)

WARNING: This page is about a different variant/trim than selected.

STEP	PART NAME	QUANTITY
Step 6	Engine mount nut(s)	1
Step 7	Engine mount nut(s)	1

WARNING: Be prepared to collect escaping engine coolant.

CAUTION:

Be prepared to collect escaping fuel.
Be prepared to collect escaping oil.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

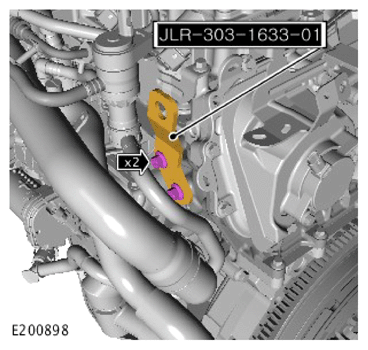

- Install the special tool.
  Special Tool(s): JLR-303-1633-01
- Install and tighten the 2 bolts.
  Torque : 25 Nm
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

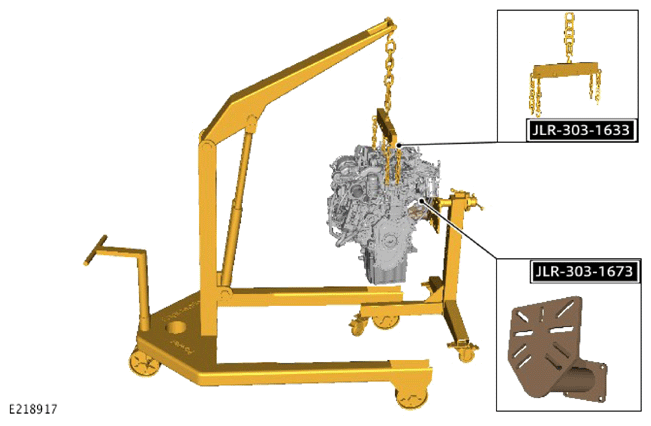

- Install the special tool.
  Special Tool(s): JLR-303-1633-01
- Install a suitable hydraulic jib crane to the special tools as illustrated.
  General Equipment: Hydraulic jib crane
- Remove the engine from the engine stand.
  General Equipment: Engine stand
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

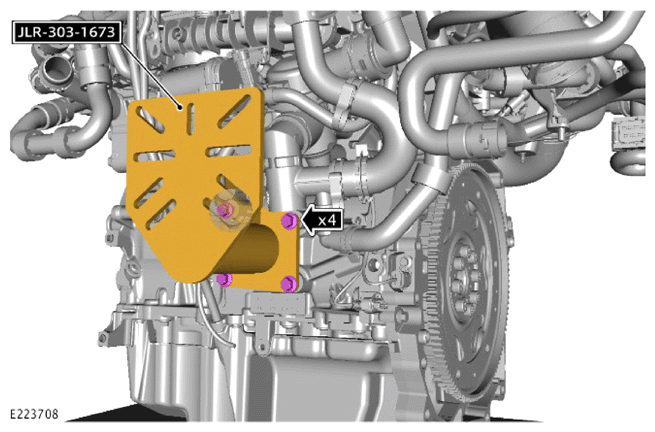

- Remove the 4 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1673
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

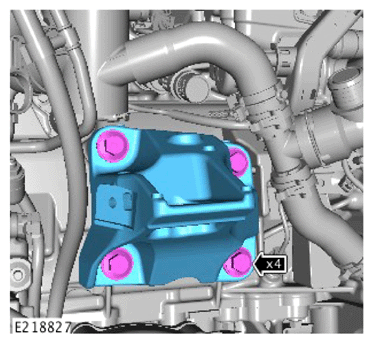

- Install the bracket.
- Install and tighten the 4 bolts.
  Torque : 63 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

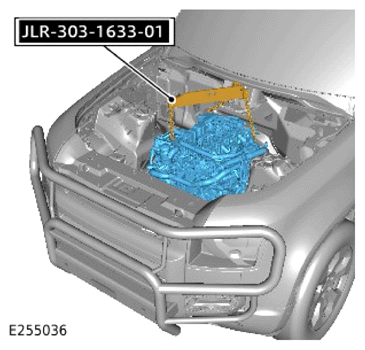

- Use the special tool and a suitable hydraulic jib crane to carefully install the engine.
- Remove the hydraulic jib crane.
  General Equipment: Hydraulic jib crane
- Remove the special tool.
  Special Tool(s): JLR-303-1633-01
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

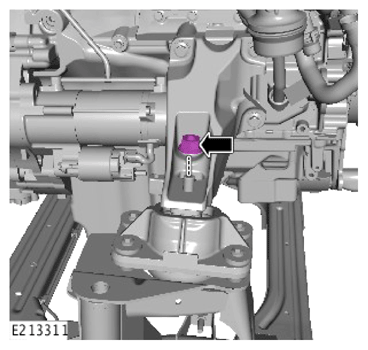

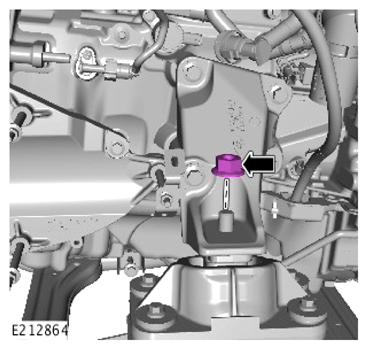

Install and tighten the new nut.

Renew Part: Engine mount nut(s) Quantity: 1 .

Torque : 110 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new nut.

Renew Part: Engine mount nut(s) Quantity: 1 .

Torque : 110 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1633-01
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the 2 electrical connectors.
- Tighten the bolt.
  Torque : 7 Nm
- Install the wiring harness clip.
- Install the wiring harness grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

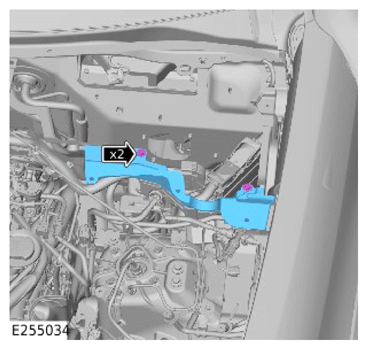

- Install the closing panel.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

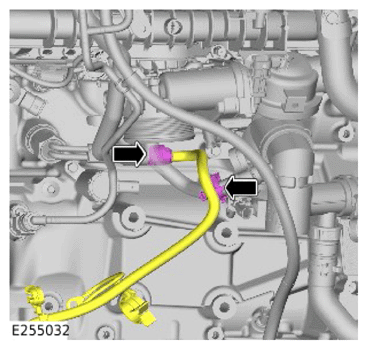

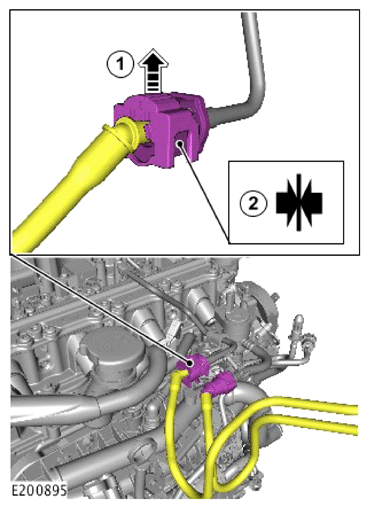

- Connect the Low Pressure (LP) fuel line.
- Connect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

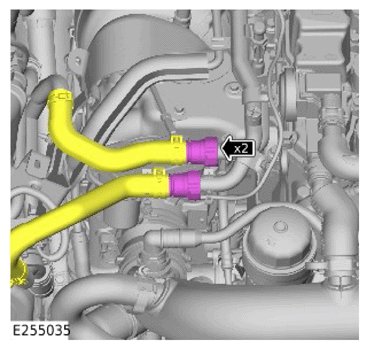

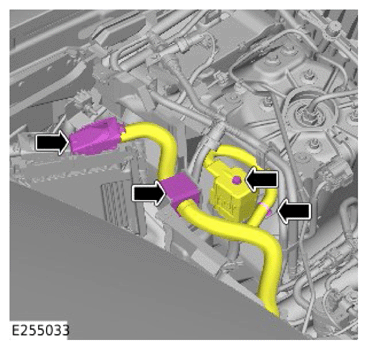

Connect the 2 engine coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

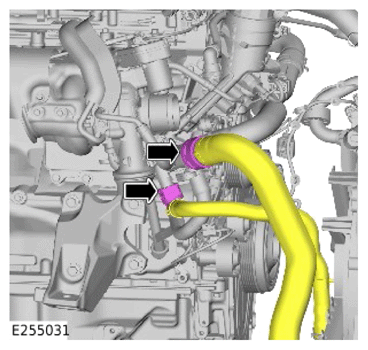

Connect the 2 engine coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

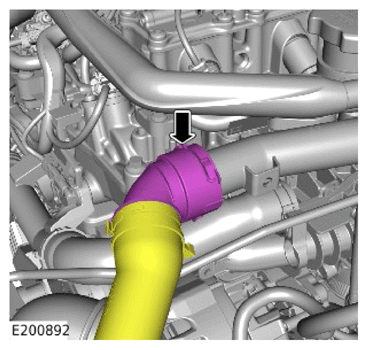

Connect the engine coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install the wiring harness clip.
Install the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Install the Air Conditioning (A/C) compressor.
Refer to: AIR CONDITIONING COMPRESSOR - INGENIUM I4 2.0L PETROL
Install the transmission.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL
Install the hood.
Refer to: HOOD
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
