Engine - V8 S/C 5.0L Petrol (G2796528): Specifications

	SPECIFICATIONS
Engine oil	SAE 0W-20 STLJR.03.5006

DESCRIPTION	CAPACITY
Engine oil dry fill including filter	9.65 Liters	20.39 US pints	10.19 US quart
Engine oil, service fill with oil filter change	8 Liters	16.9 US pints	8.4 US quart

ITEM	SPECIFICATION
Type	5.0 liter, Longitudinal 8, Petrol engine, twin overhead camshaft, 4 valves per cylinder
Cylinder arrangement	Longitudinal 8
Cylinder numbering	No. 1 from the accessory drive end
Bore	92.5 mm
Stroke	93 mm
Capacity	4999.72 cm3
Compression ratio	9:5:1
Direction of rotation	Clockwise viewed at accessory drive
Maximum power	386 kW (525 PS) at 6000-6500 rpm
Maximum Torque	625 Nm (461 lb/ft) at 2500-5500 rpm
Engine fuel injection system	Multihole central spray guided Direct Injection

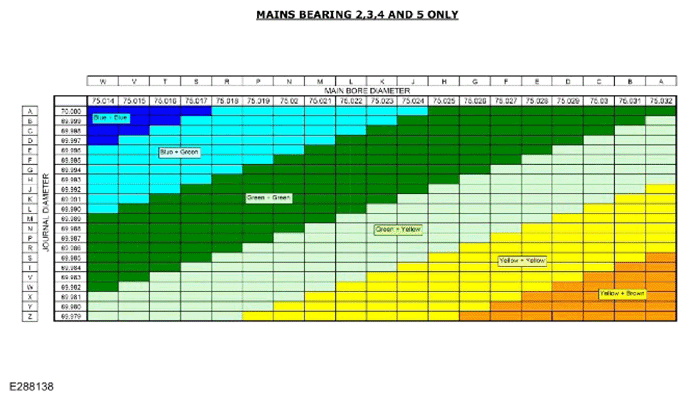

BEARING SELECTION CHART
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

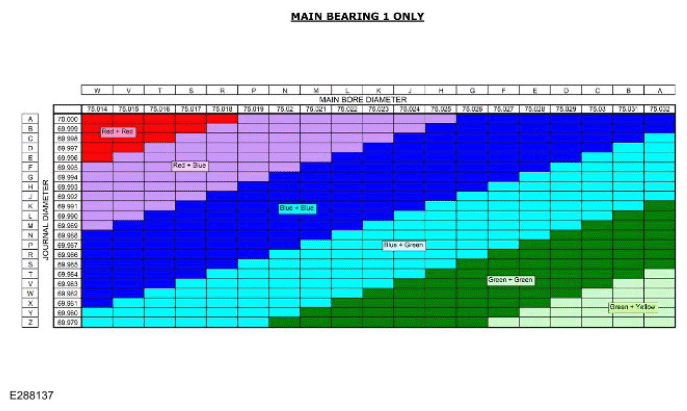

BEARING SELECTION CHART
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

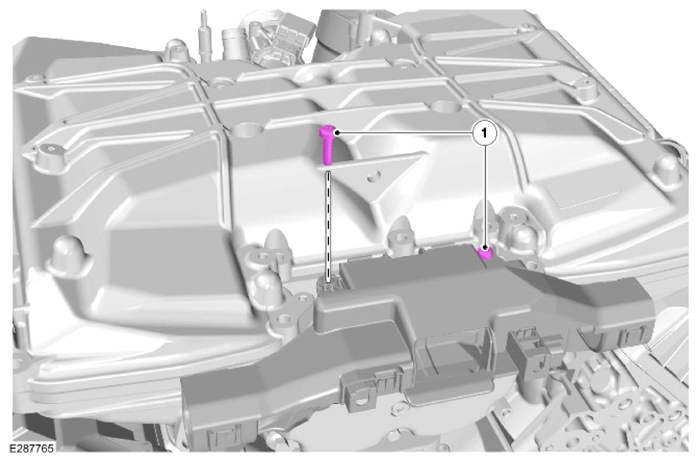

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine wiring harness bracket bolts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

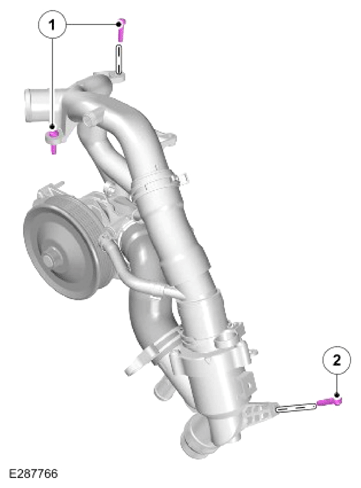

	DESCRIPTION	NM	LB-FT	LB-IN
1	Thermostat housing assembly upper screws	9	-	80
2	Thermostat housing assembly lower bolt	9	-	80

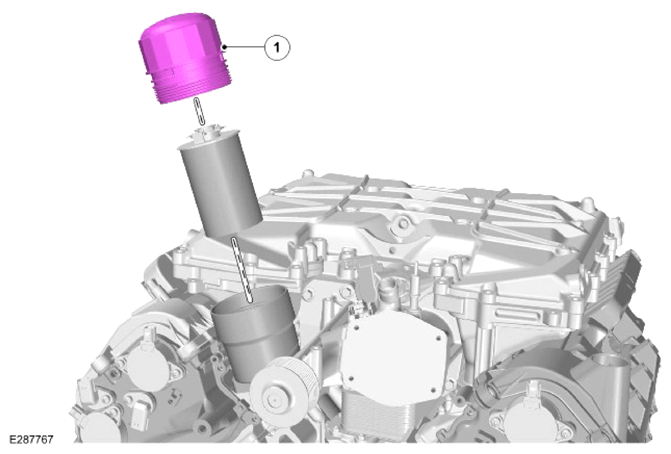

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil filter cap	28	21	-

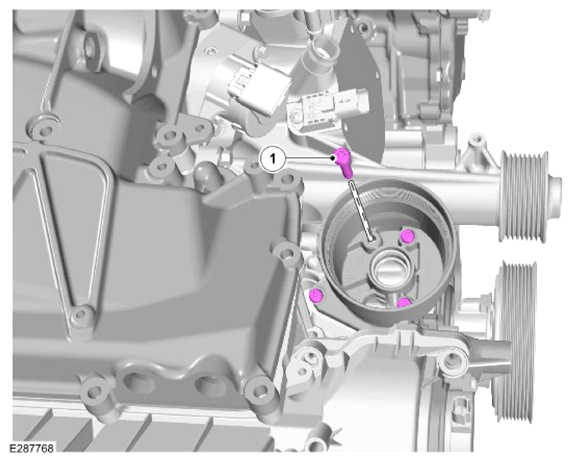

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil filter housing bolts	12	9	-

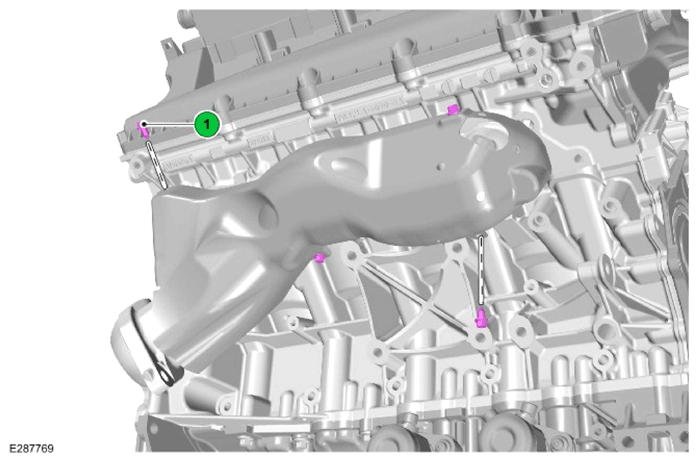

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right exhaust manifold heatshield bolts	2.5	-	22

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

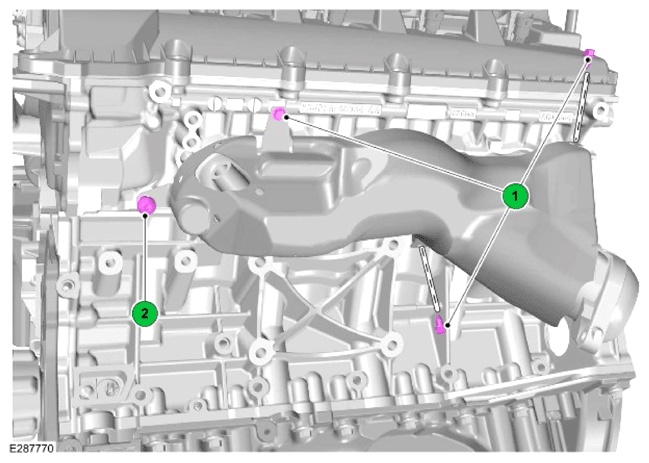

1	Left exhaust manifold heatshield M6.3x13 bolts	2.5	-	22
2	Left exhaust manifold heatshield M8x30 bolt	2.5	-	22

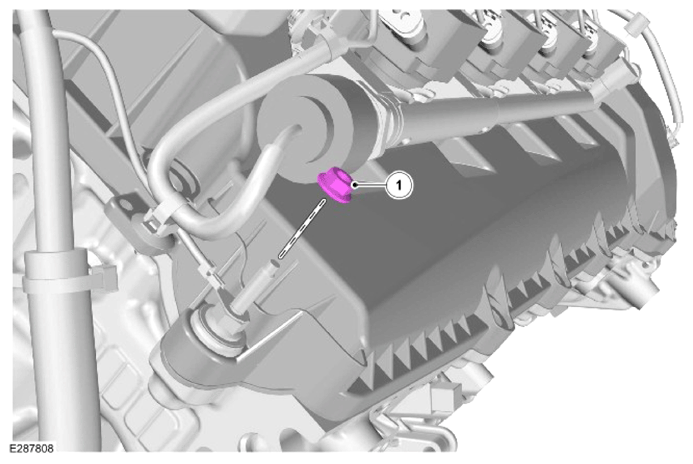

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

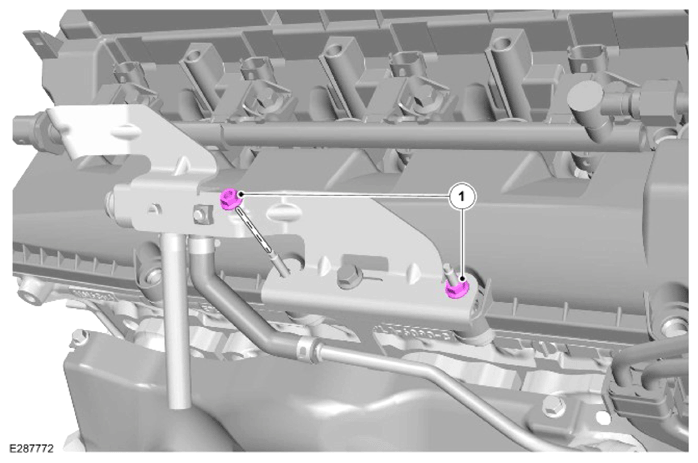

1	Left differential pressure sensor assembly nuts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

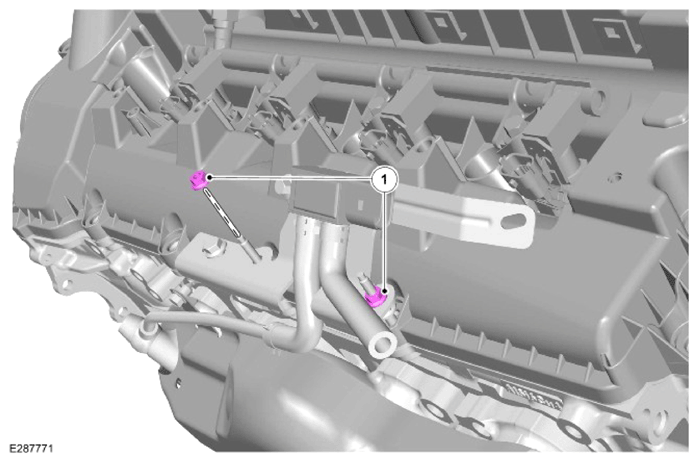

1	Right differential pressure sensor assembly nuts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

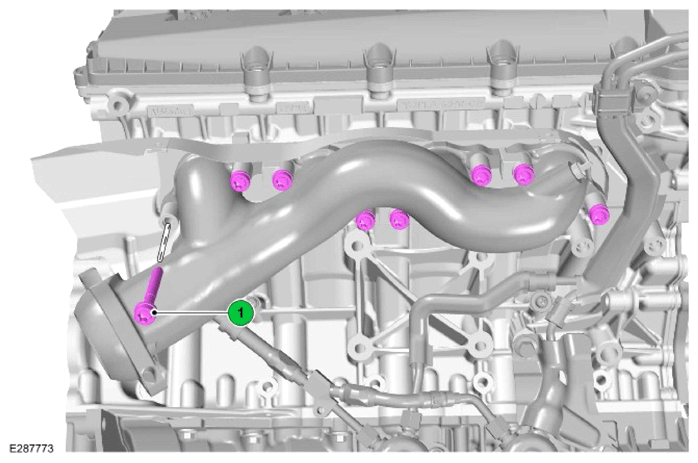

1	Right exhaust manifold bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

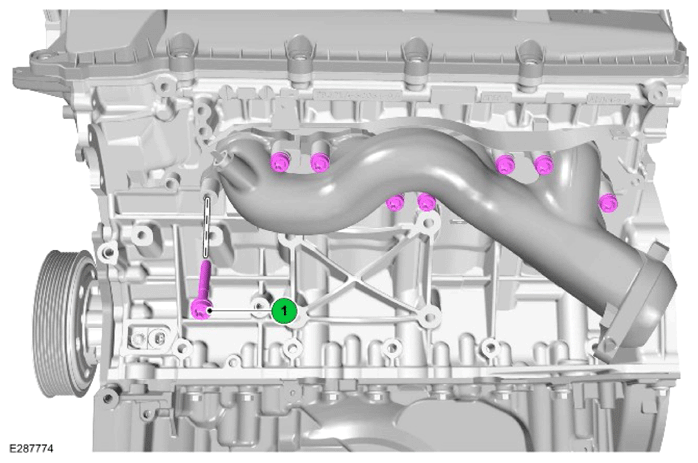

1	Left exhaust manifold bolts	A**	A**	A**

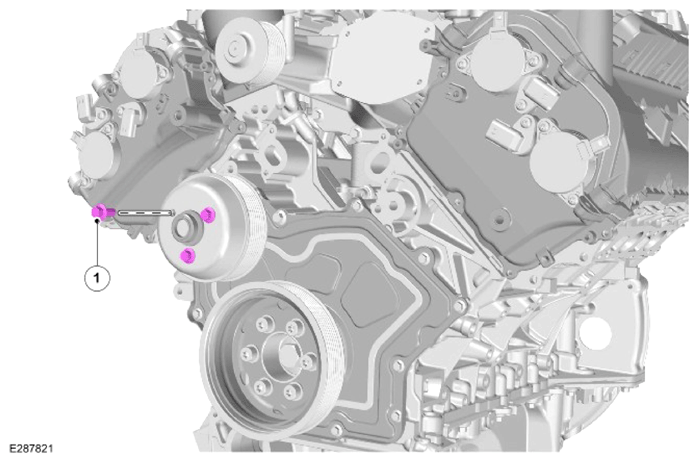

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Idler pulley bracket bolts	25	18	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

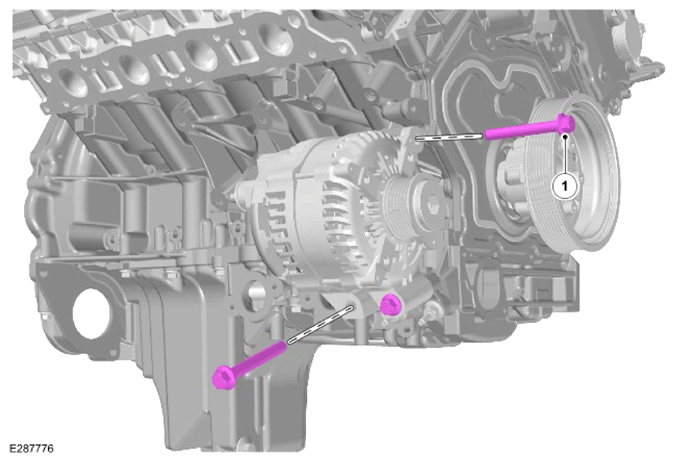

1	Generator to engine bolts	48	35	-

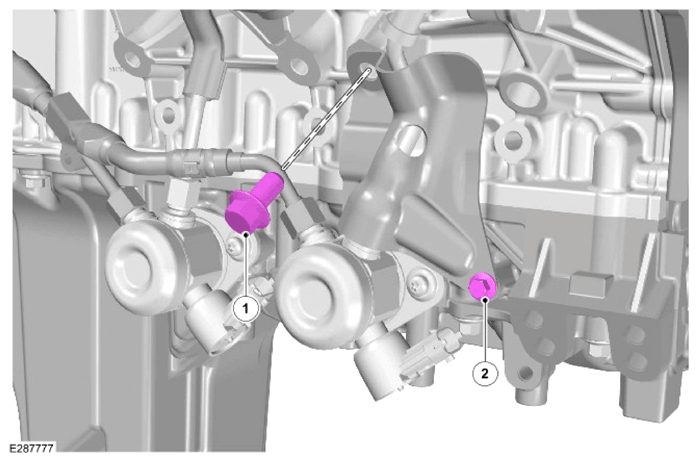

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel line cover M10 bolt	29	21	-
2	Fuel line cover M6 bolt	12	9	-

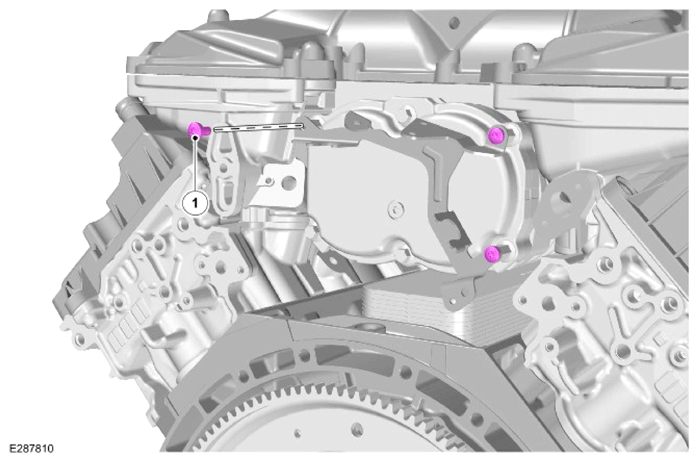

COMPONENT TORQUE LOCATION

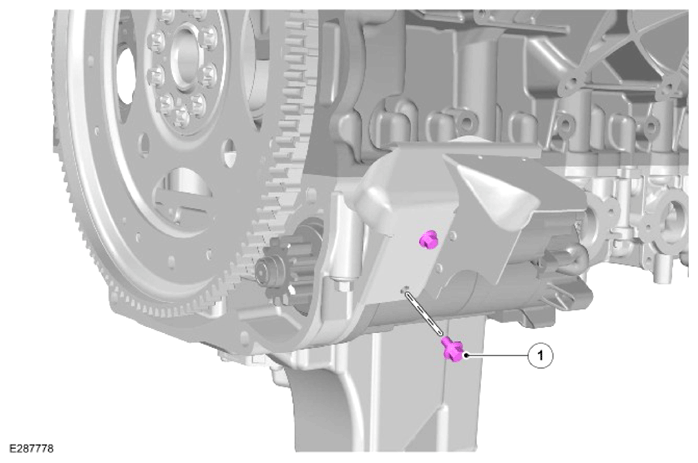

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Starter motor cover bolts	6	-	53

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

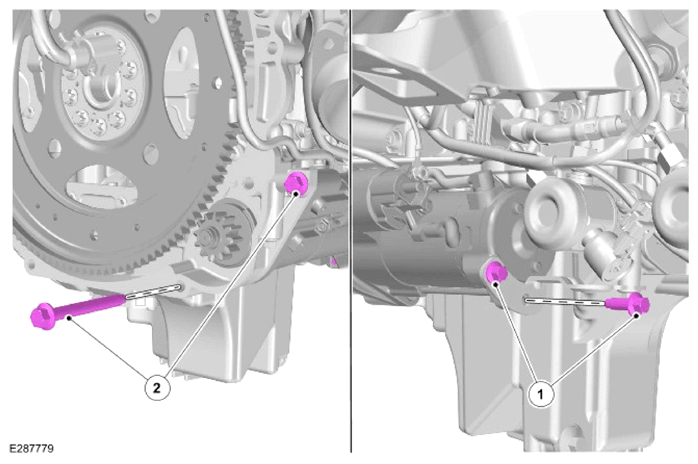

	DESCRIPTION	NM	LB-FT	LB-IN
1	Starter motor rear bolts	47	35	-
2	Starter motor front bolts	25	18	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel line bracket bolts	12	9	-
2	Fuel line unions	20	15	-

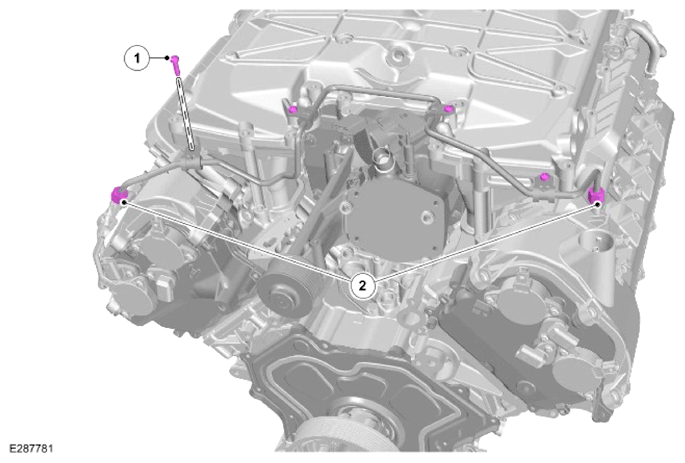

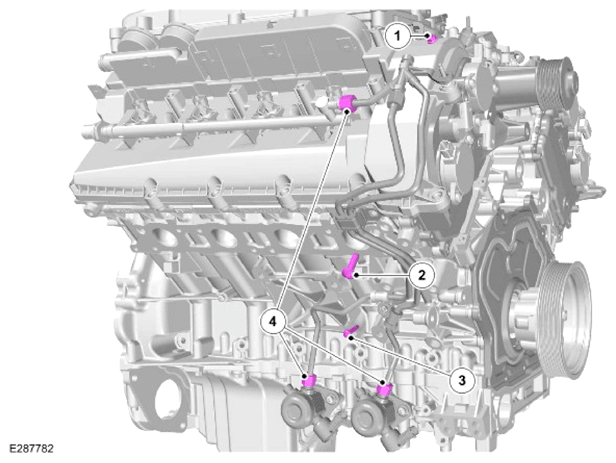

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	High Pressure (HP) fuel line bracket nut	6	-	53
2	HP  fuel line bracket M8 bolt	12	9	-
3	HP  fuel line bracket M6 bolt	26	19	-
4	HP  fuel line unions	20	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	HP  fuel line bracket bolts	12	9	-
2	HP  fuel line unions	20	15	-

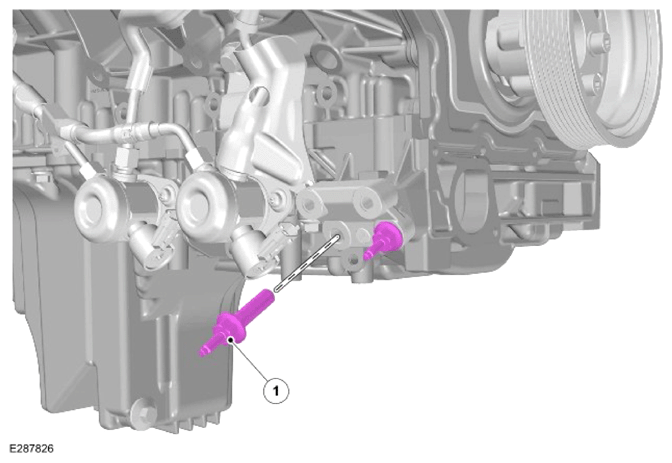

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	HP  fuel pump bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine wiring harness ground cable bolts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Engine wiring harness ground cable bolt	6	-	53

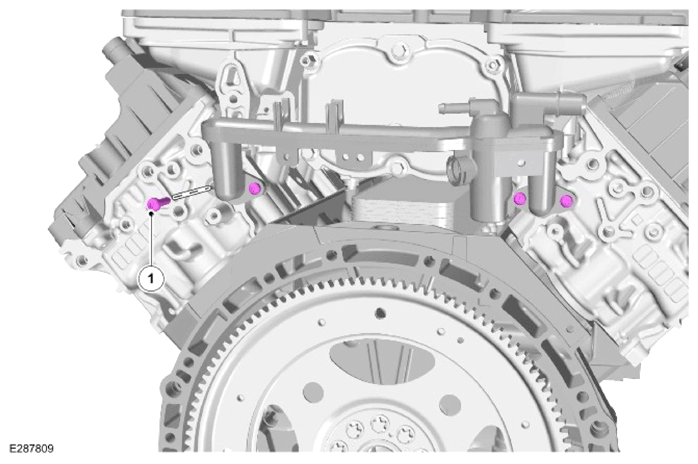

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

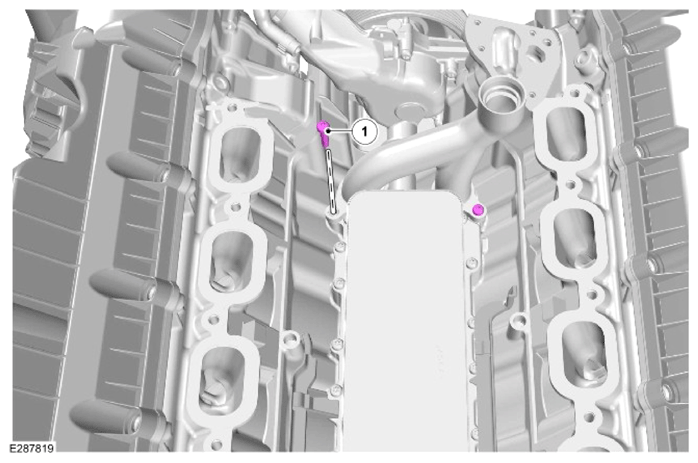

	DESCRIPTION	NM	LB-FT	LB-IN
1	Cylinder block coolant outlet pipe bolts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Wiring harness bracket bolts	12	9	-

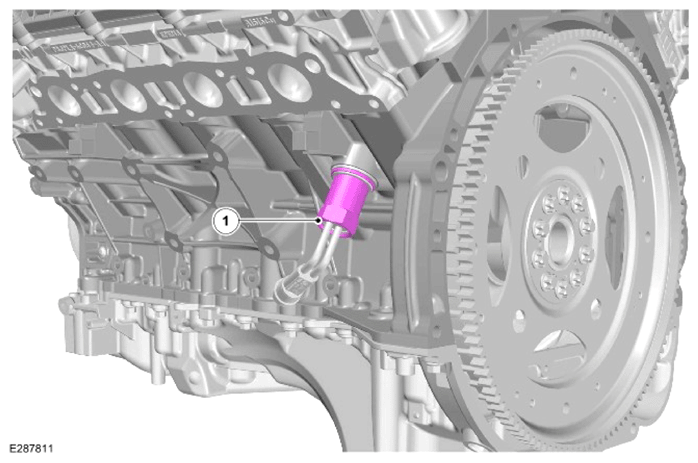

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

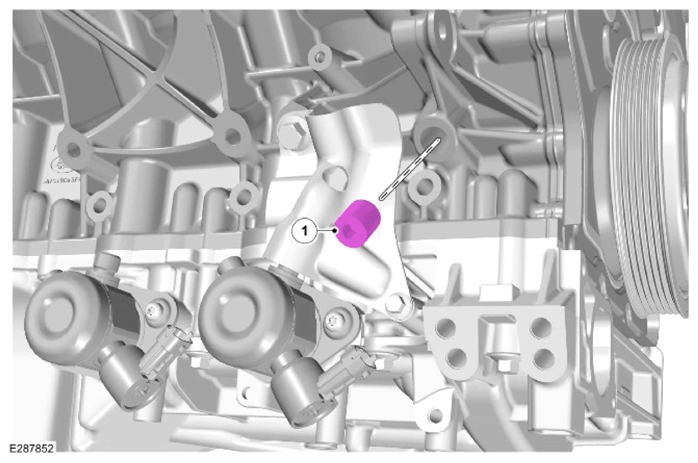

1	Cylinder block heater	50	37	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

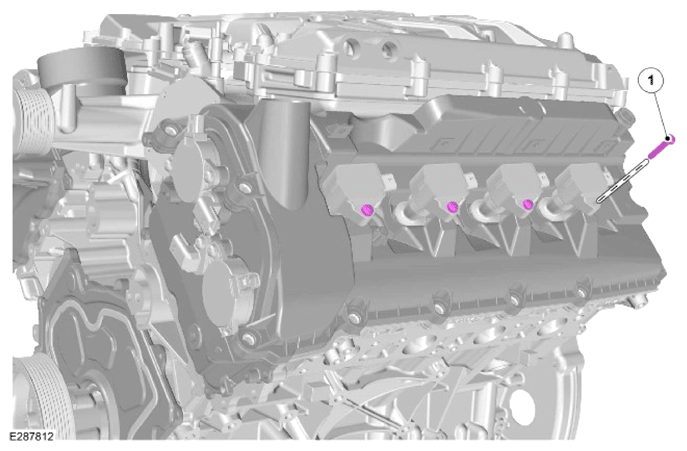

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ignition coils bolts	8	-	71

COMPONENT TORQUE LOCATION

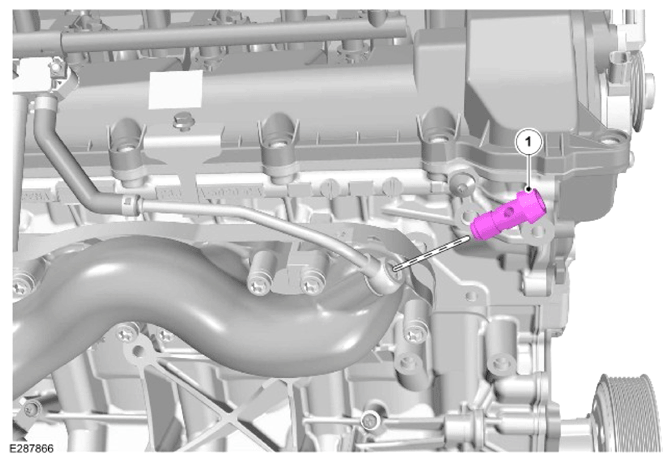

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

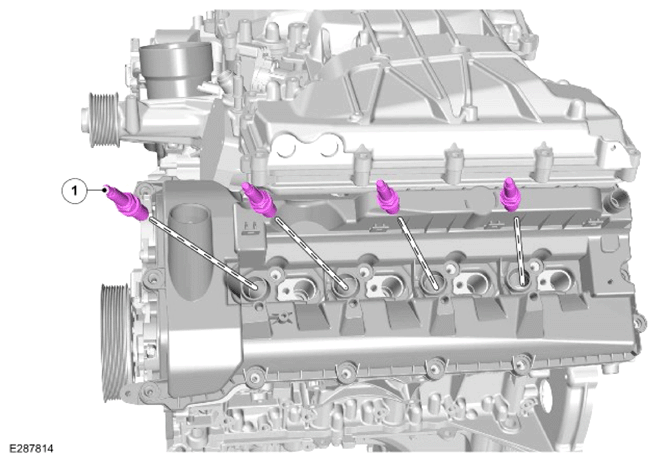

	DESCRIPTION	NM	LB-FT	LB-IN
1	Spark plugs	20	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

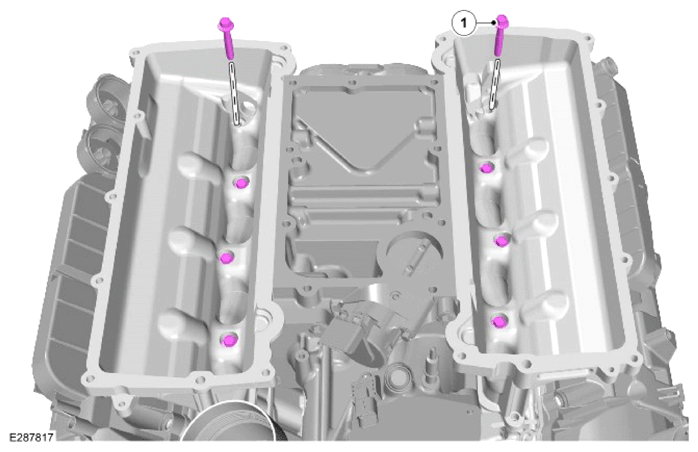

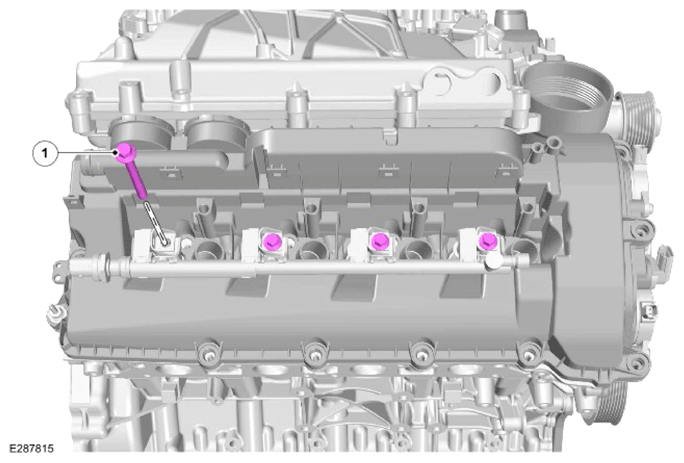

1	Fuel rail bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Charge air cooler assembly	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

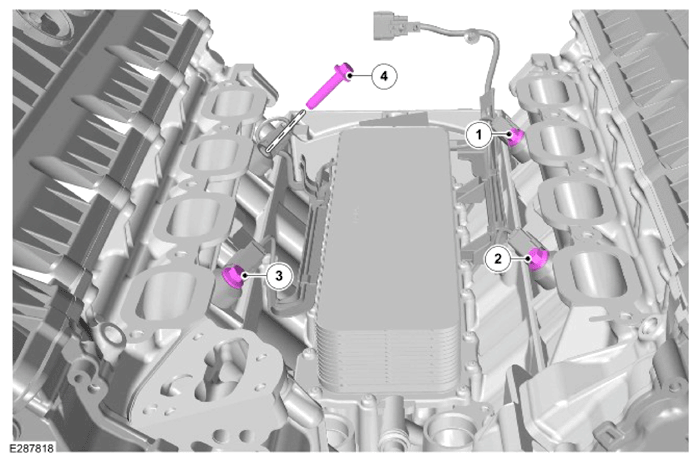

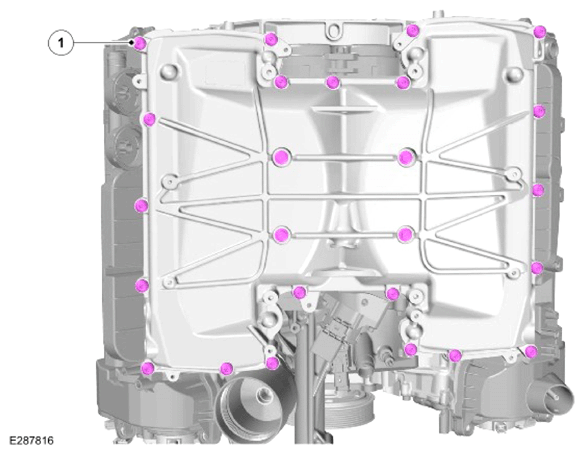

1	Supercharger assembly bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Rear left knock sensor bolt	20	15	-
2	Front left knock sensor bolt	20	15	-
3	Front right knock sensor bolt	20	15	-
4	Rear right knock senor bolt	20	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Cylinder block coolant outlet tube	12	9	-

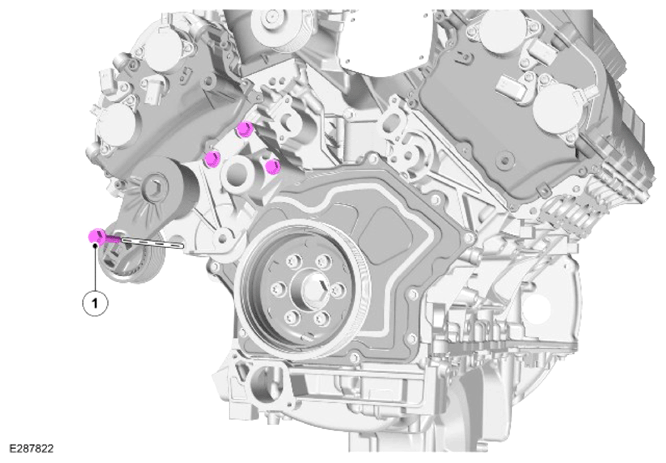

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

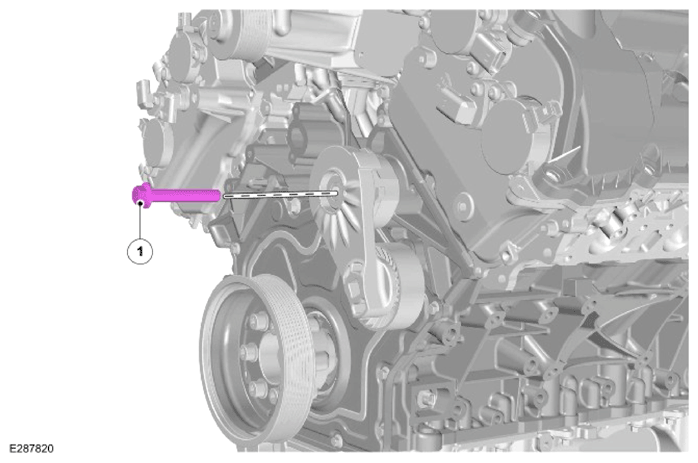

	DESCRIPTION	NM	LB-FT	LB-IN

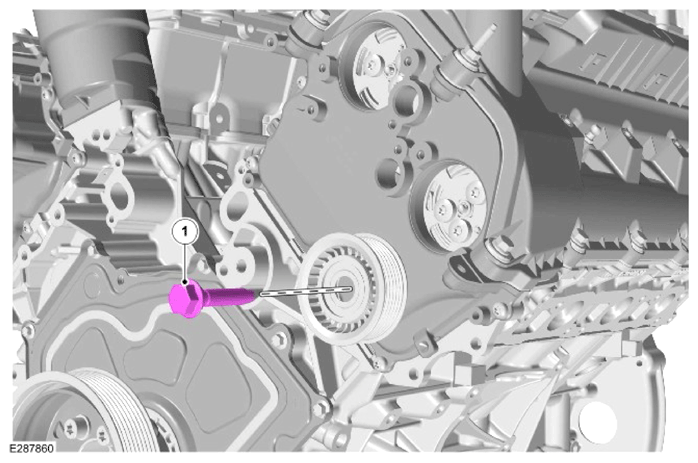

1	Accessory drive belt tensioner bolt	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Viscous fan pulley bolt	25	18	-

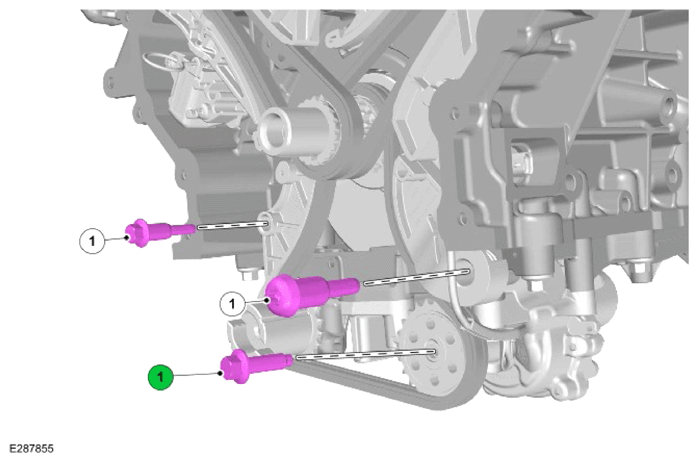

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Accessory drive belt tensioner bracket bolts	25	18	-

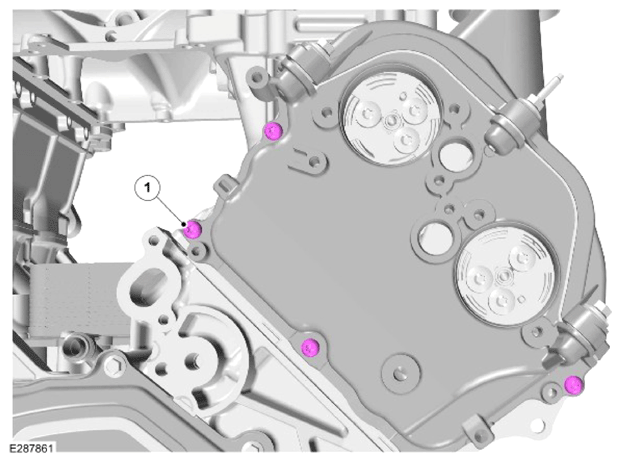

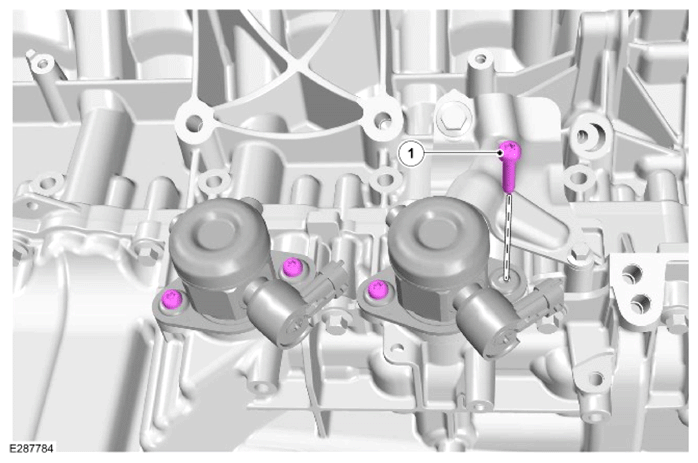

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

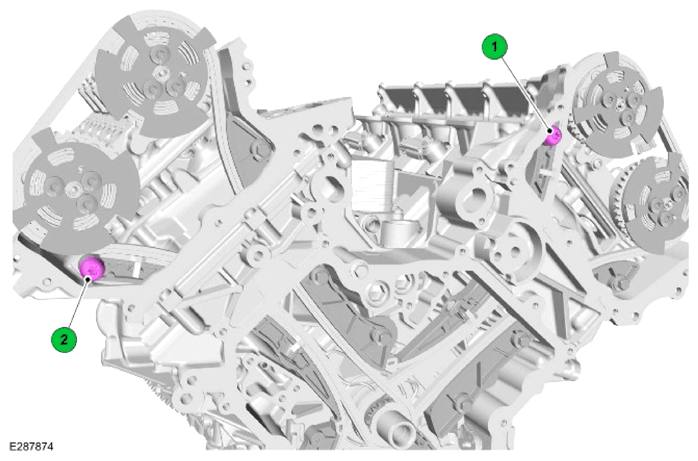

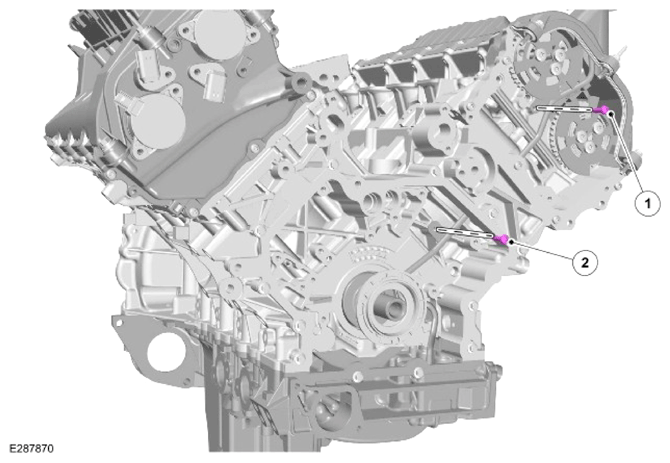

	DESCRIPTION	NM	LB-FT	LB-IN

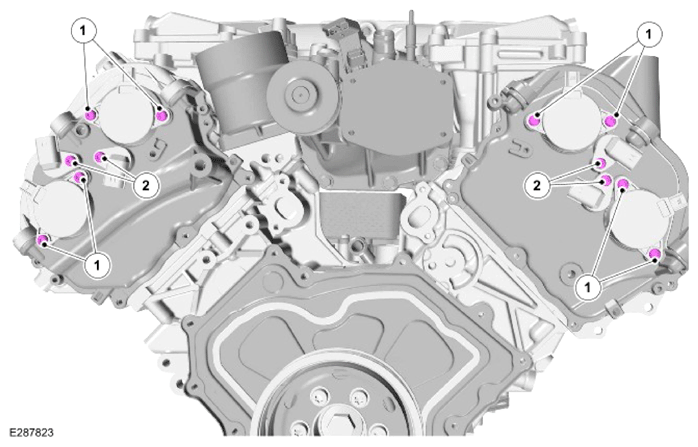

1	Variable Camshaft Timing (VCT) solenoid bolts	9	-	80
2	Camshaft Position Sensor (CMP) bolts	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

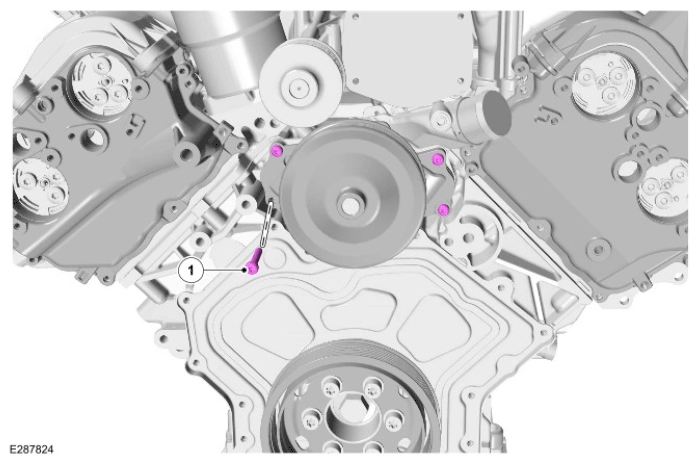

1	Engine coolant pump bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

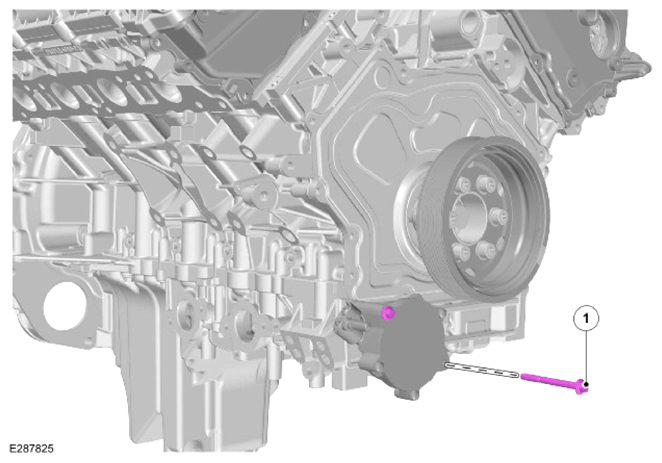

	DESCRIPTION	NM	LB-FT	LB-IN
1	Brake vacuum pump bolts	12	9	-

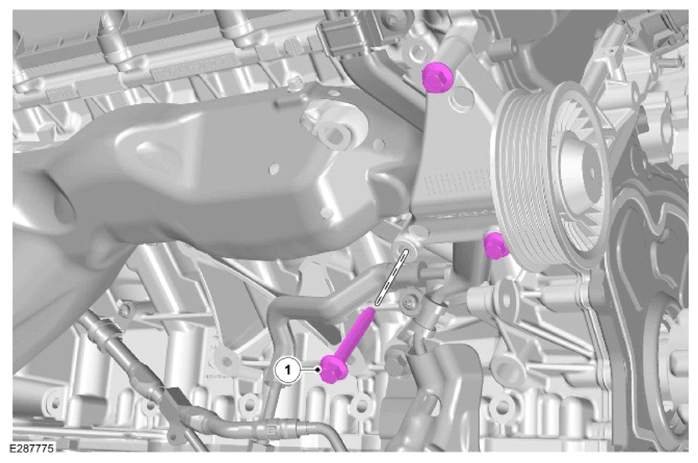

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Generator bracket bolts	48	35	-

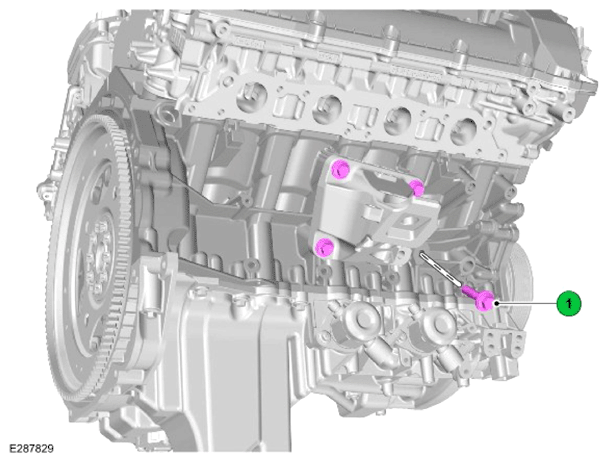

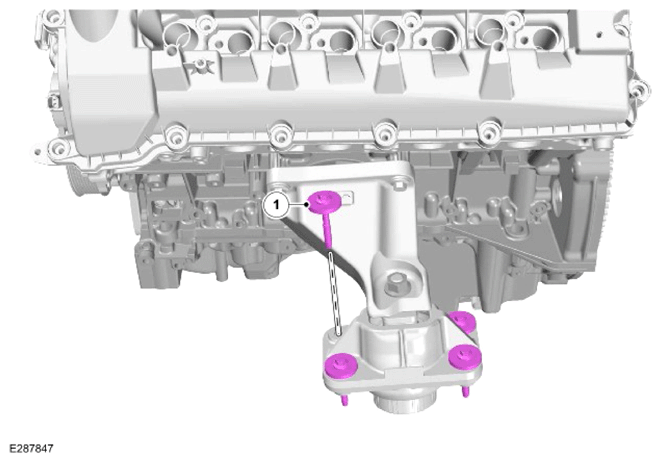

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT

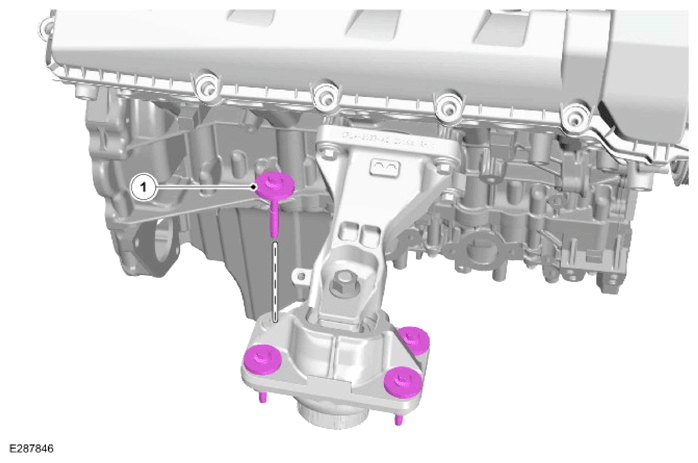

1	Left engine mount bracket bolts	Stage 1 - 45 Nm	Stage 2 - 60 Degrees	Stage 1 - 33 lb-ft	Stage 2 - 60 Degrees

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT
1	Right engine mount bracket bolts	Stage 1 - 45 Nm	Stage 2 - 60 Degrees	Stage 1 - 33 lb-ft	Stage 2 - 60 Degrees

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

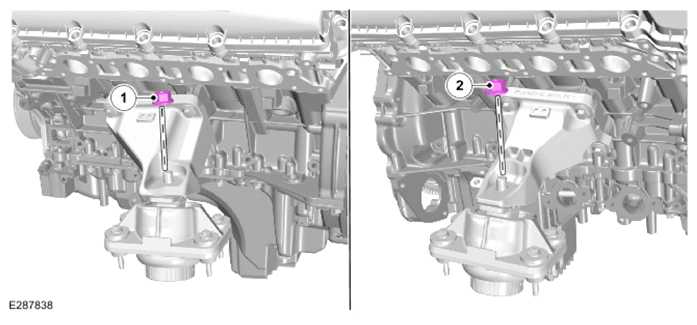

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left engine mount nut	9	-	80
2	Right engine mount nut	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right engine mount bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left engine mount bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT	LB-IN

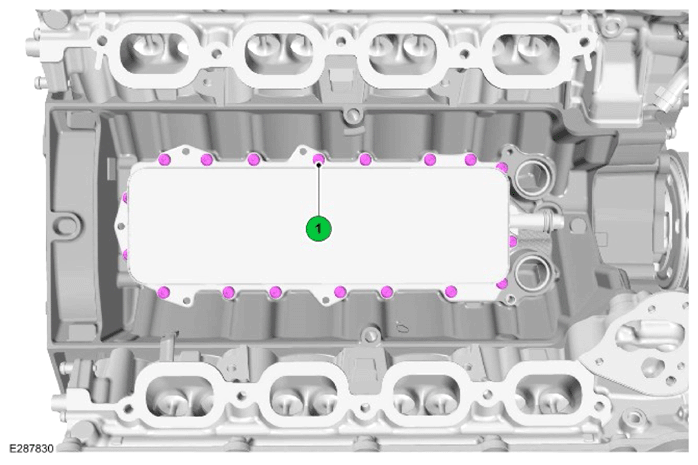

1	Oil cooler bolts	A**		A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT

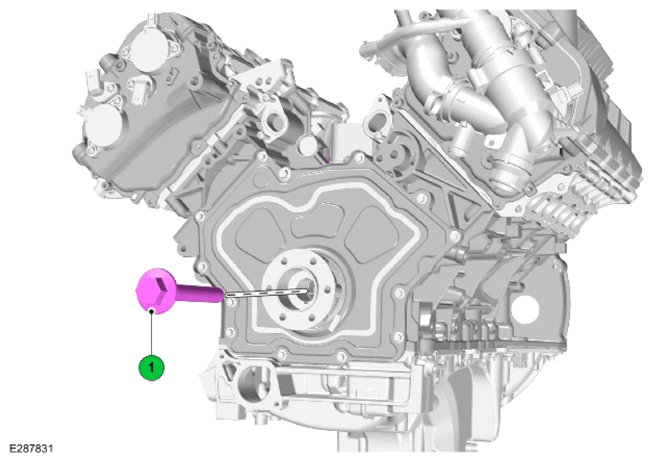

1	Crankshaft pulley bolt	Stage 1 - 200 Nm	Stage 2 - 270 Degrees	Stage 1 - 148 lb-ft	Stage 2 - 270 Degrees

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM		LB-FT	LB-IN

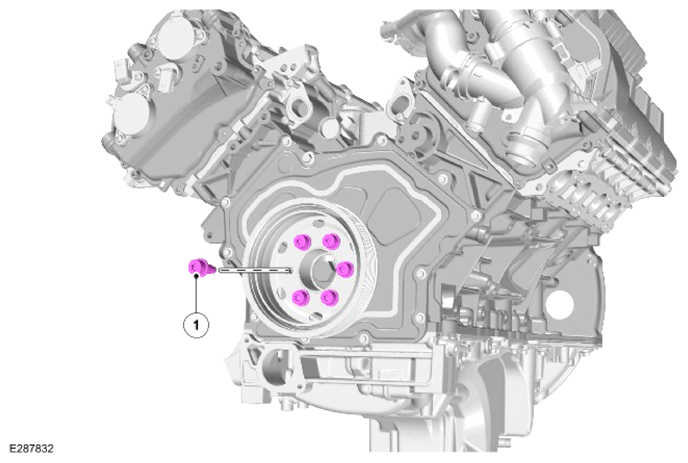

1	Crankshaft pulley bolts	A**		A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

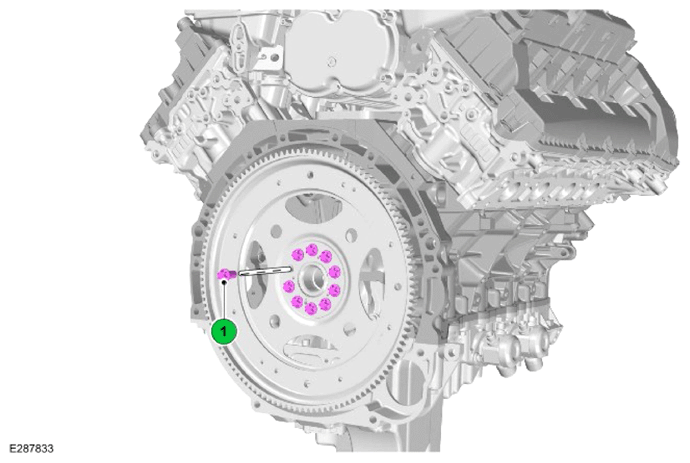

	DESCRIPTION	NM		LB-FT		LB-IN
1	Drive plate bolts	A**		A**		A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

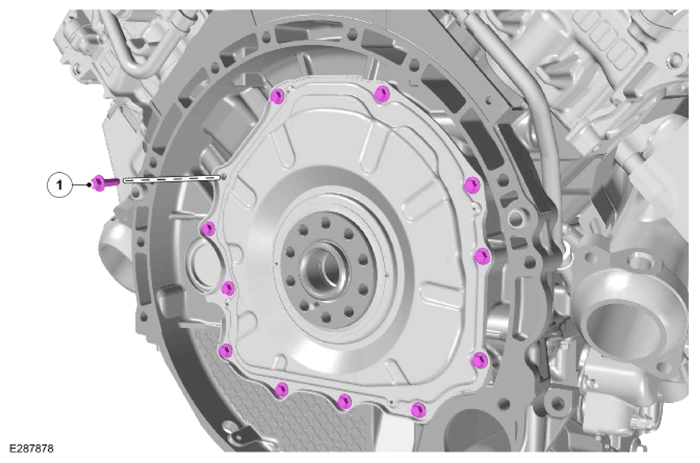

1	Crankshaft rear cover bolts	A**	A**	A**

COMPONENT TORQUE LOCATION

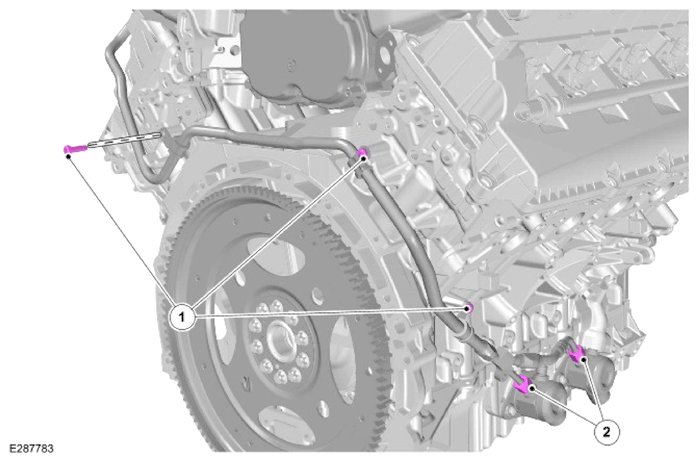

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

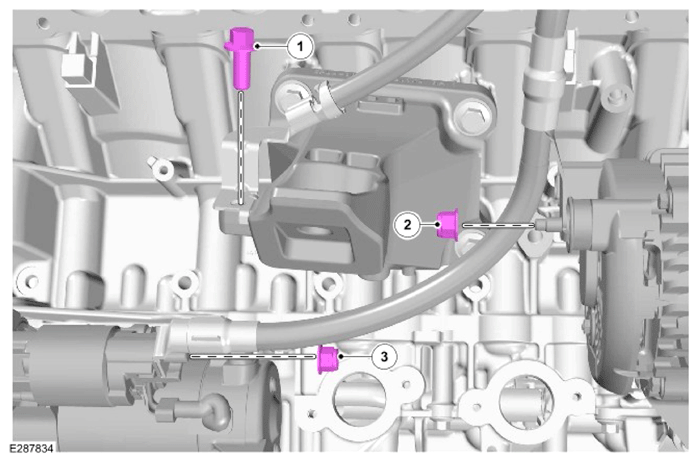

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ground cable bolt	9	-	80
2	Ground cable to generator nut	12	9	-
3	Ground cable to starter motor nut	12	9	-

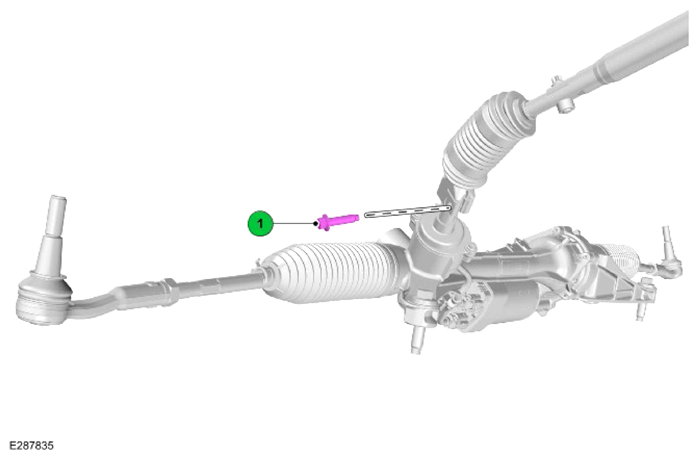

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Steering column bolt	30	22	-

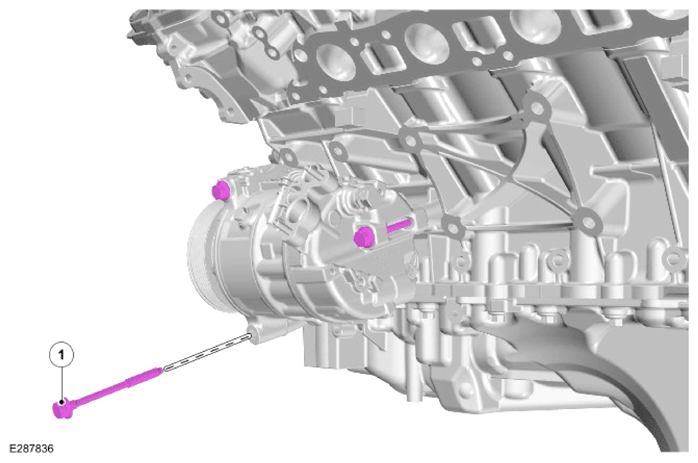

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Air Conditioning (A/C) compressor bolts	25	18	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

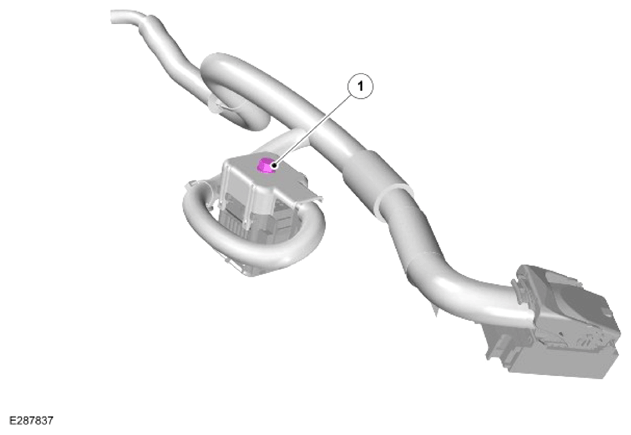

1	Electronic Control Unit (ECU) electrical connector bolt	7	-	62

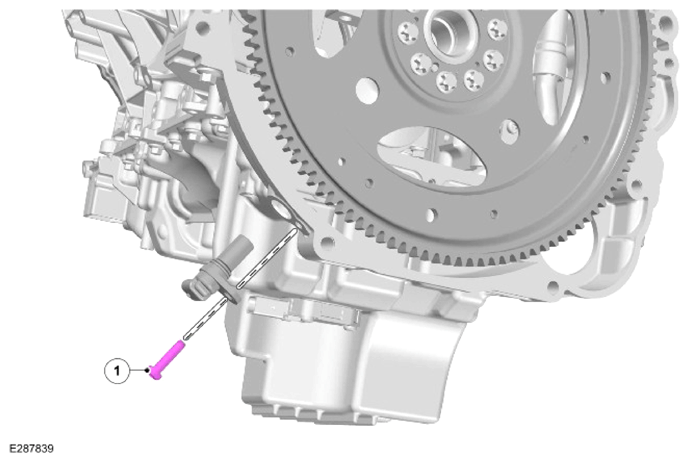

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

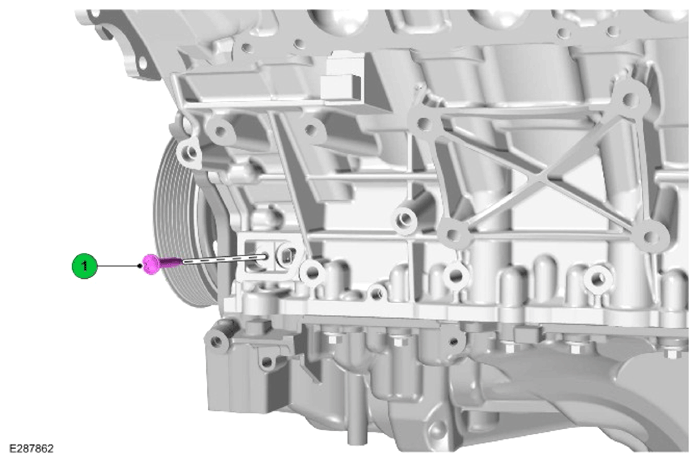

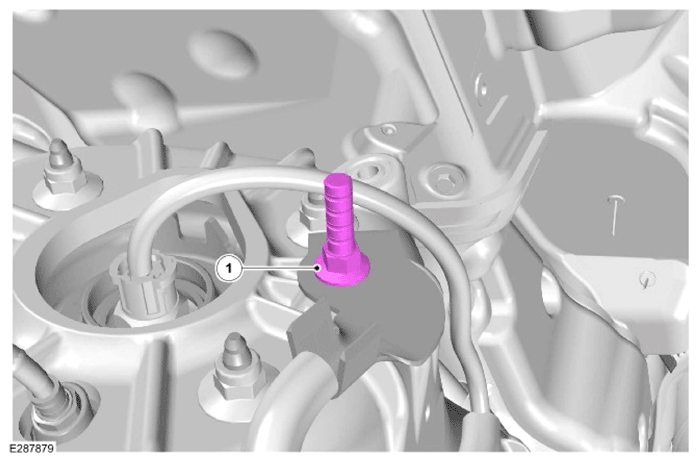

	DESCRIPTION	NM	LB-FT	LB-IN
1	Crankshaft Position Sensor (CKP) bolt	10	7	-

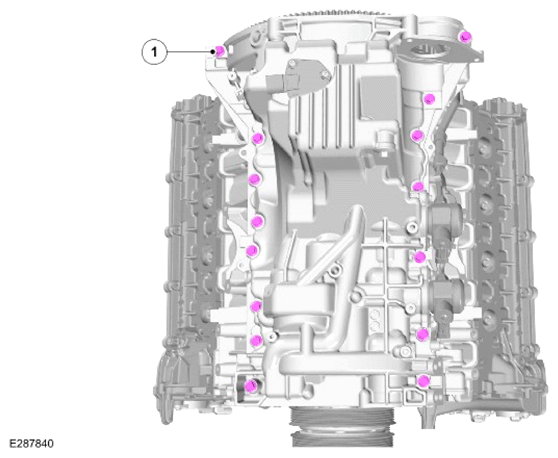

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil pan bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

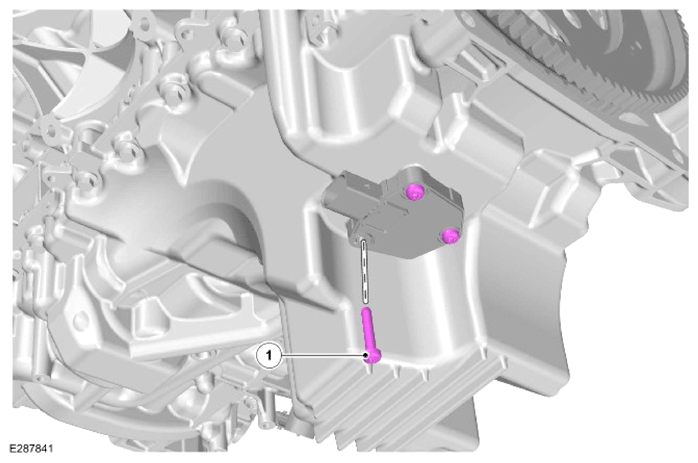

1	Oil level sensor bolts	12	9	-

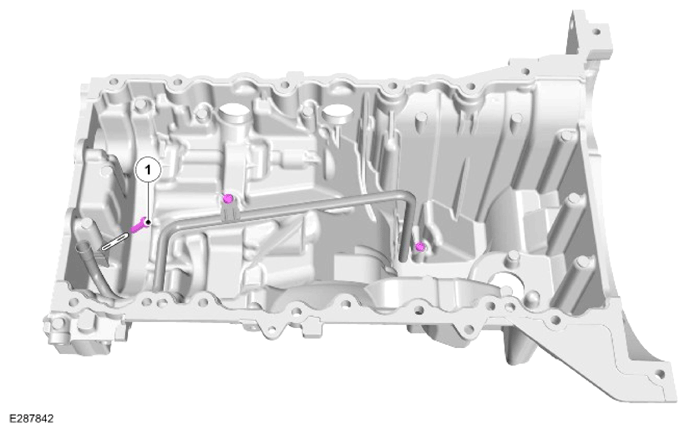

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil extraction line bolts	12	9	-

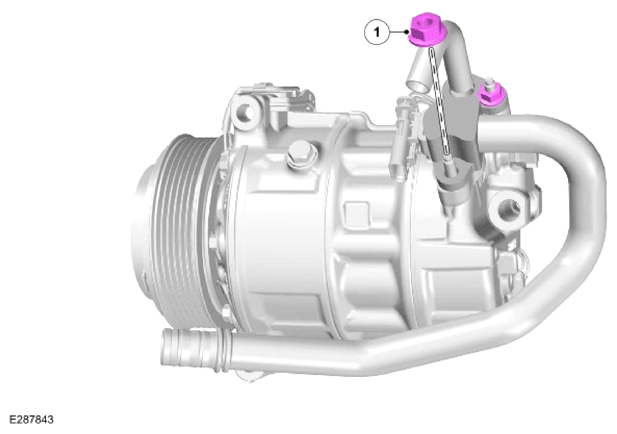

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	A/C  pipes to the A/C  compressor nuts	18	13	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

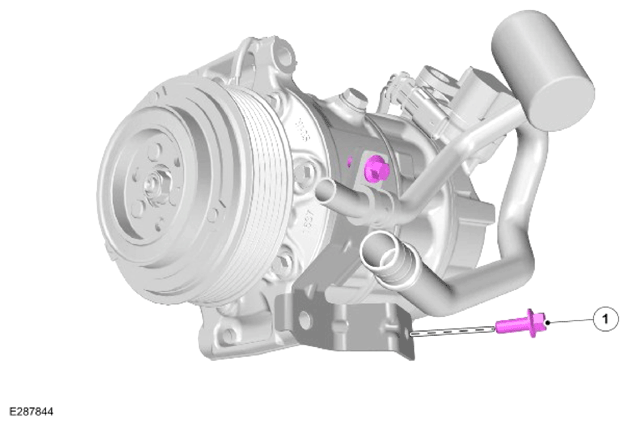

	DESCRIPTION	NM	LB-FT	LB-IN
1	A/C  pipe bracket bolts	9	-	80

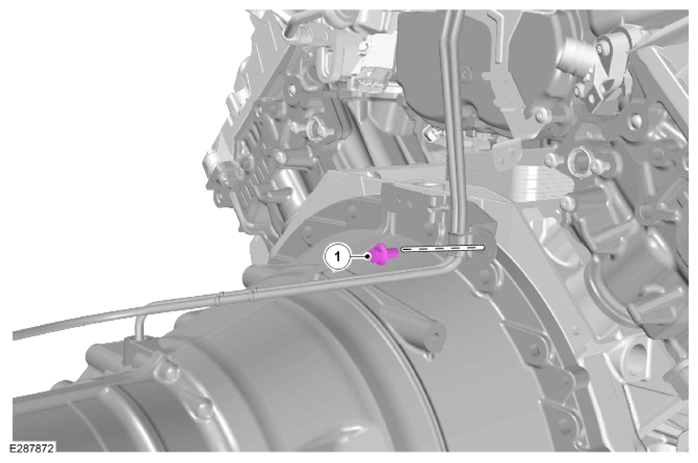

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

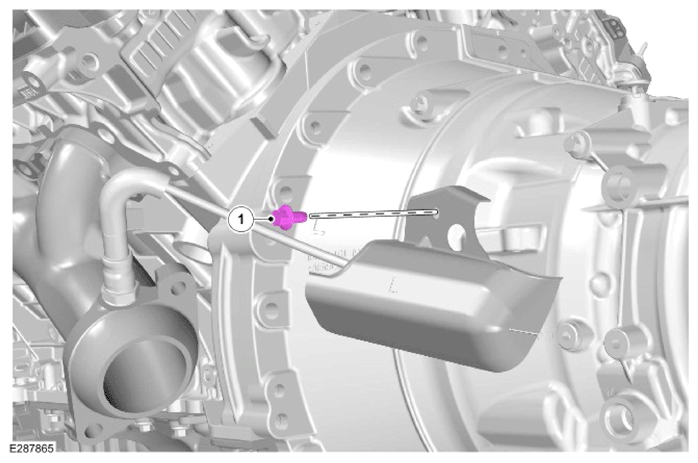

	DESCRIPTION	NM	LB-FT	LB-IN

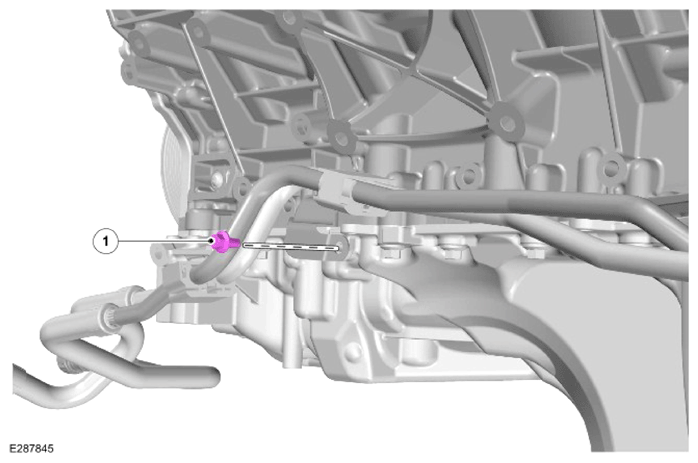

1	Transmission oil cooler pipes bracket bolt	9	-	80

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

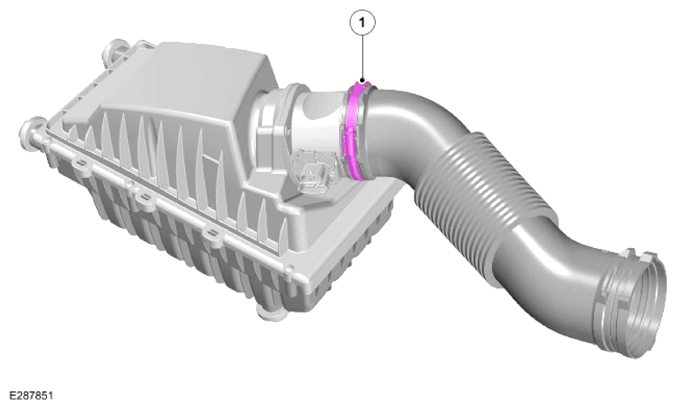

1	Right air filter housing outlet pipe clamp	3.5	-	31

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

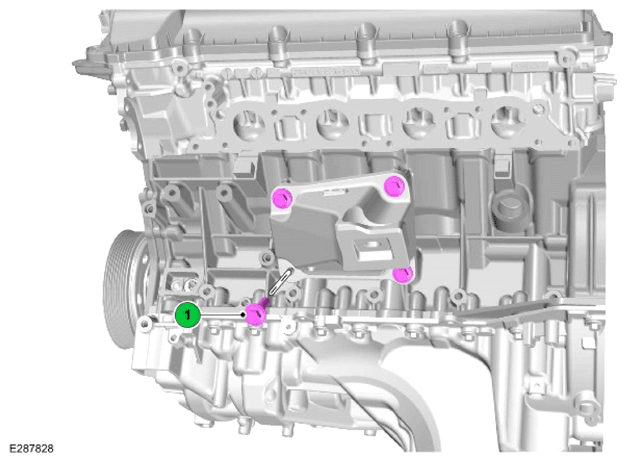

	DESCRIPTION	NM	LB-FT	LB-IN
1	Cylinder block oil plug	50	37	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

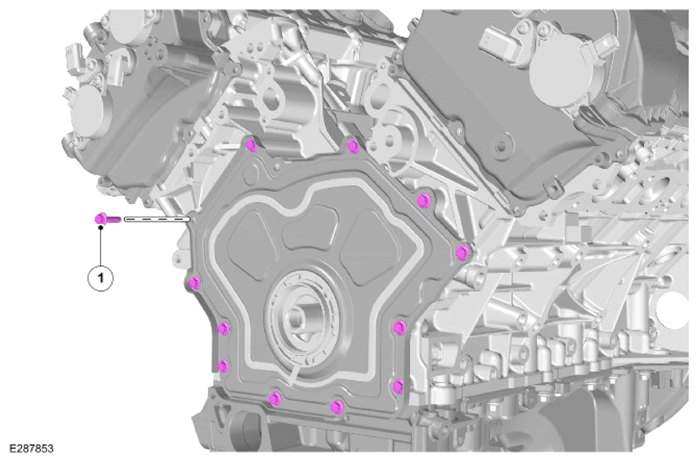

1	Engine front cover bolts	A**	A**	A**

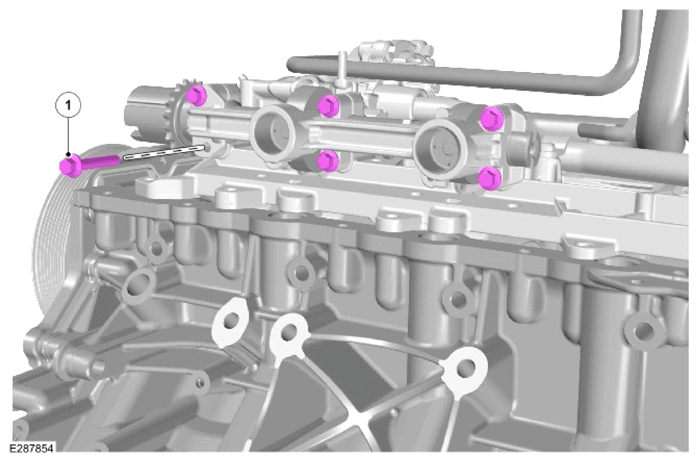

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel pump camshaft carrier bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Lower timing chain guide bolt	12	9	-
2	Lower timing chain tensioner bolt	12	15	-
3	Oil pump drive sprocket bolt	21	15	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN

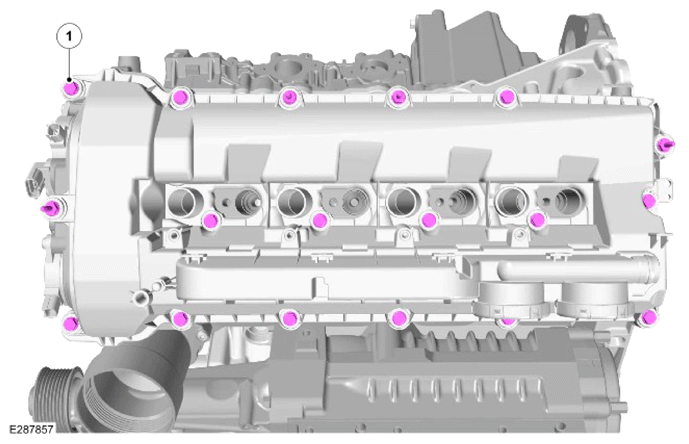

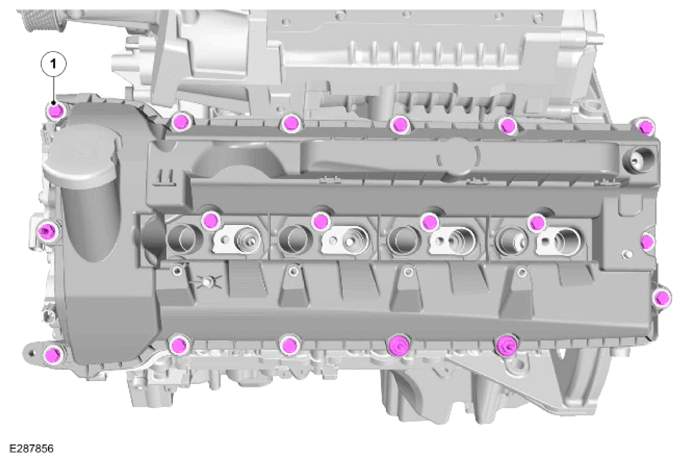

1	Left valve cover bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right valve cover bolts	A**	A**	A**

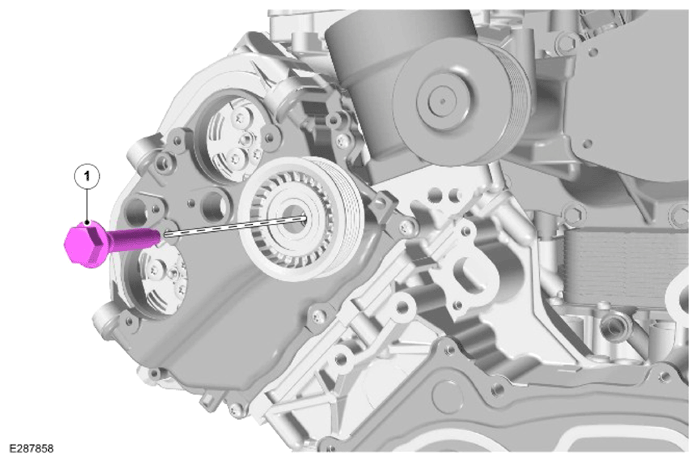

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right idler pulley bolt	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left idler pulley bolt	48	35	-

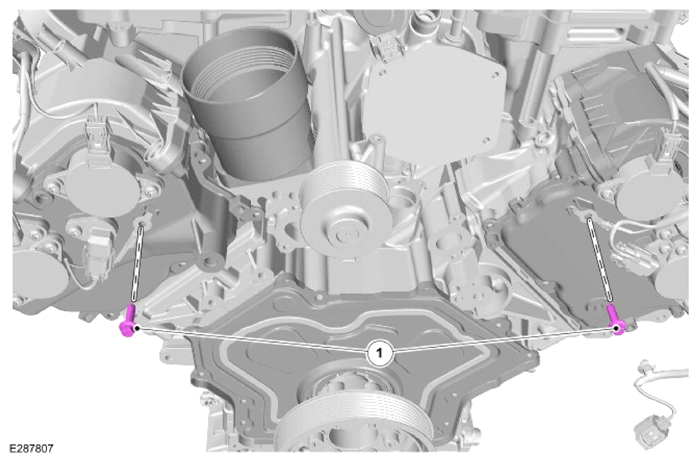

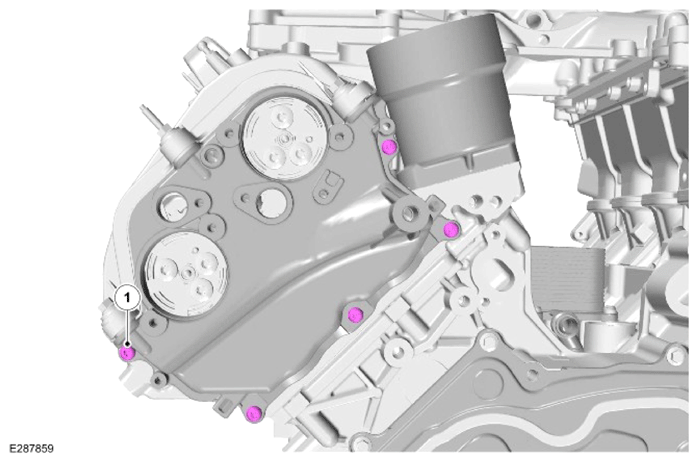

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right upper timing cover bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left upper timing cover bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil pump connector bolt	12	9	-

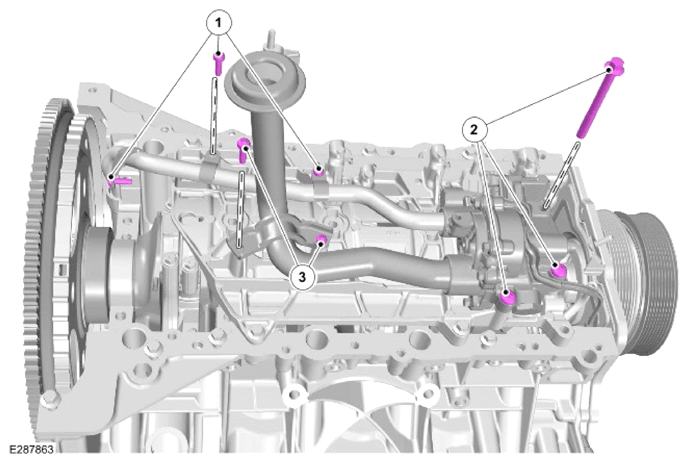

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil supply pipe bolts	12	9	-
2	Oil pump bolts	12	9	-
3	Oil pickup pipe bracket bolts	25	18	-

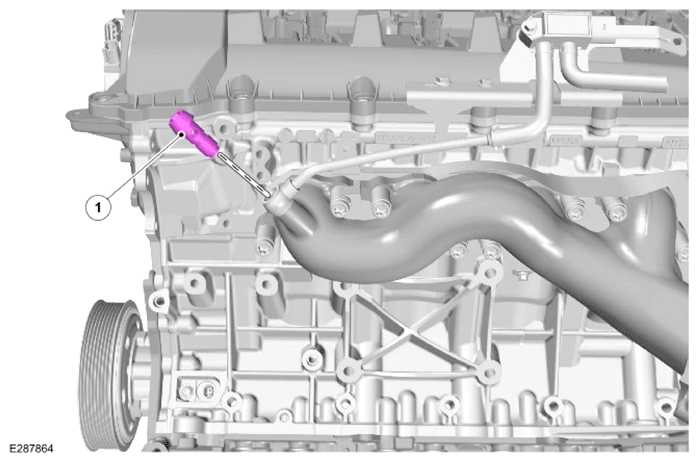

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left exhaust banjo bolt	50	37	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right exhaust banjo bolt	50	37	-

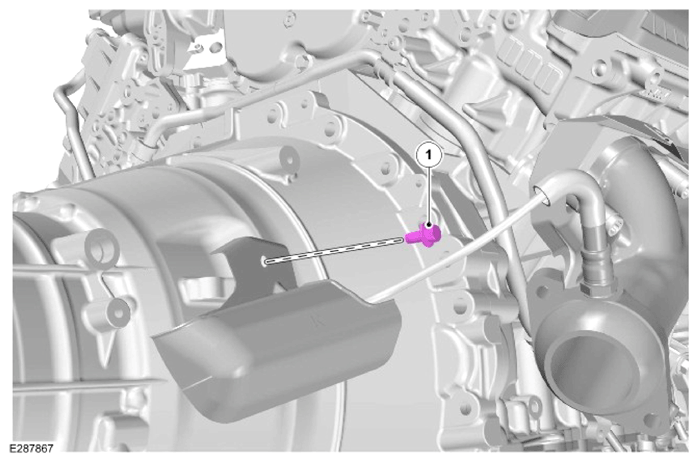

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left Heated Oxygen Sensor (HO2S) electrical connector heatshield bolt	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right HO2S  electrical connector heatshield bolt	10	7	-

COMPONENT TORQUE LOCATION

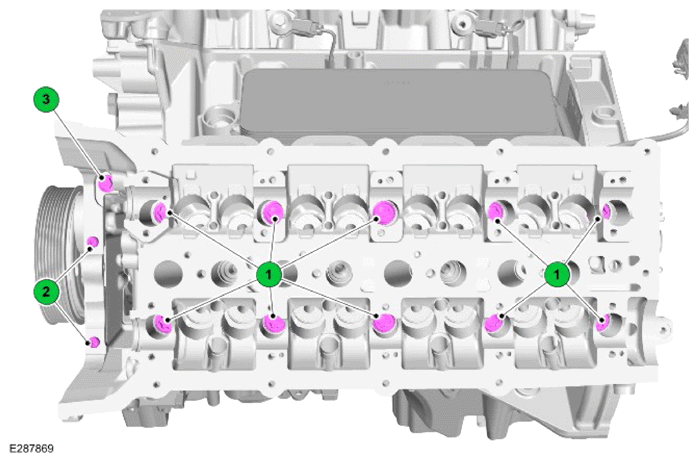

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Right cylinder head M8 bolt	12	9	9
2	Right cylinder head M6 bolts	25	18	-
3	Right cylinder head M11 bolts	A**	A**	A**

COMPONENT TORQUE LOCATION

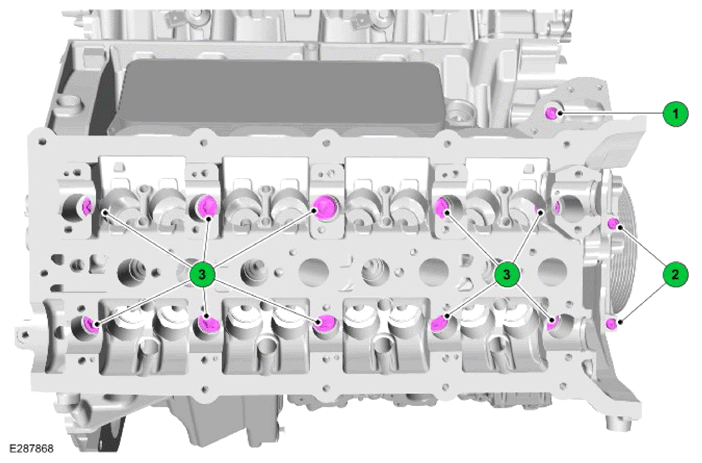

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left cylinder head M11 bolts	A**	A**	A**
2	Left cylinder head M6 bolt	25	18	-
3	Left cylinder head M8 bolt	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Oil drain tube upper bolt	10	7	-
2	oil drain tube lower bolt	10	7	-

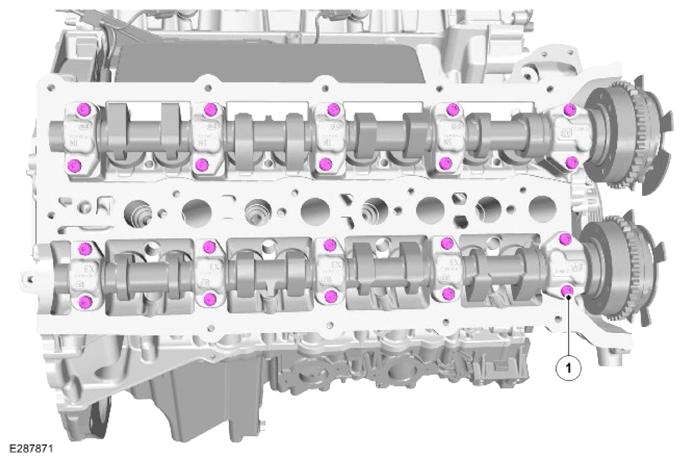

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left/Right camshaft bearing cap bolts	A**	A**	A**

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Transmission breather pipe	11	8	-

COMPONENT TORQUE LOCATION

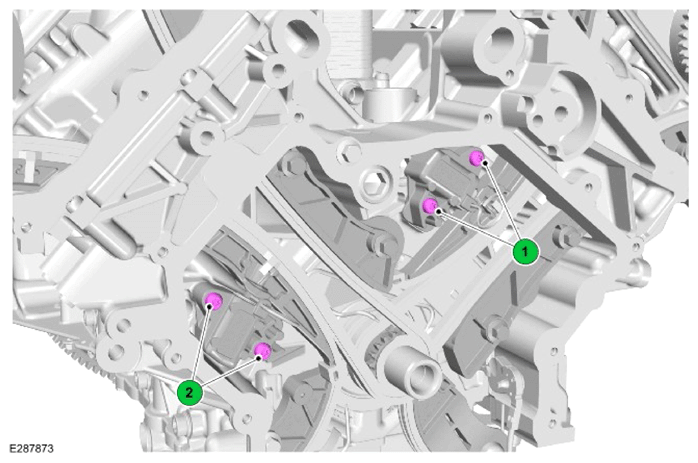

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left timing chain tensioner bolts	12	9	-
2	Right timing chain tensioner bolts	12	9	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left timing chain tensioner guide bolt	25	18	-
2	Right timing chain tensioner guide bolt	25	18	-

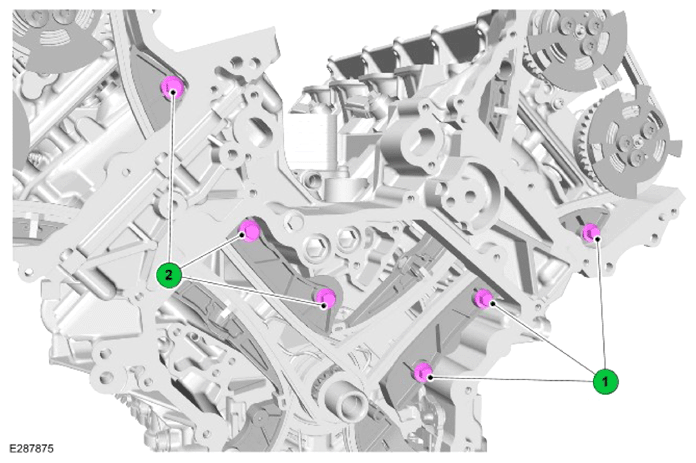

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left side timing chain guide bolts	12	9	-
2	Right side timing chain guide bolts	12	9	-

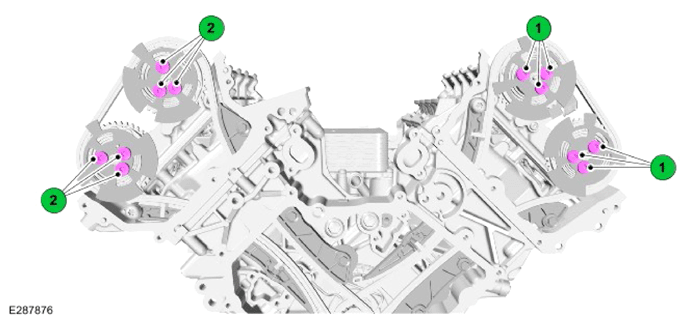

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Left VCT  unit bolts	32	24	-
2	Right VCT  unit bolts	32	24	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

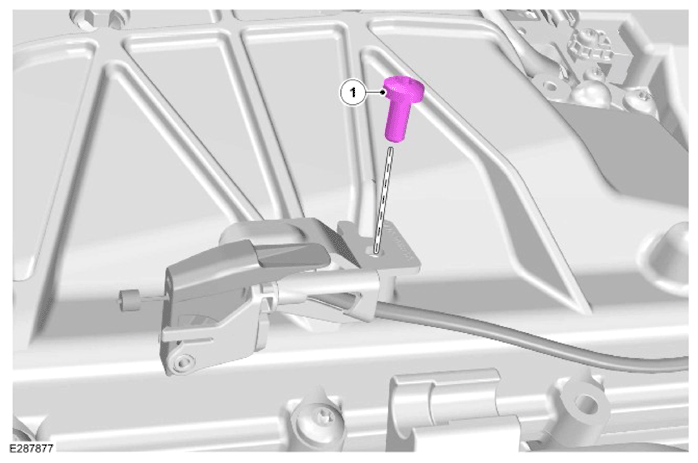

	DESCRIPTION	NM	LB-FT	LB-IN
1	Emergency Park Release (EPR) bracket bolt	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Ground cable to body bolt	12	9	-
