Instrument Cluster (G2323747): Specifications

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	Nm	LB-FT	LB-IN

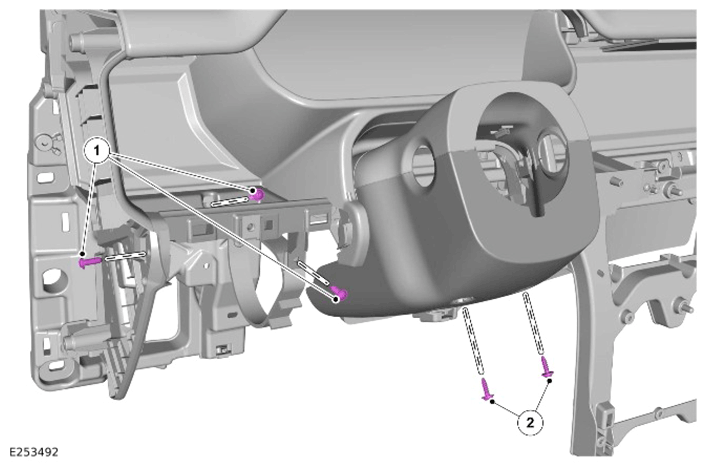

1	Instrument panel left upper tray bracket screw	1.7	-	15
2	Steering column lower trim panel screw	1.7	-	15

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	Nm	LB-FT	LB-IN

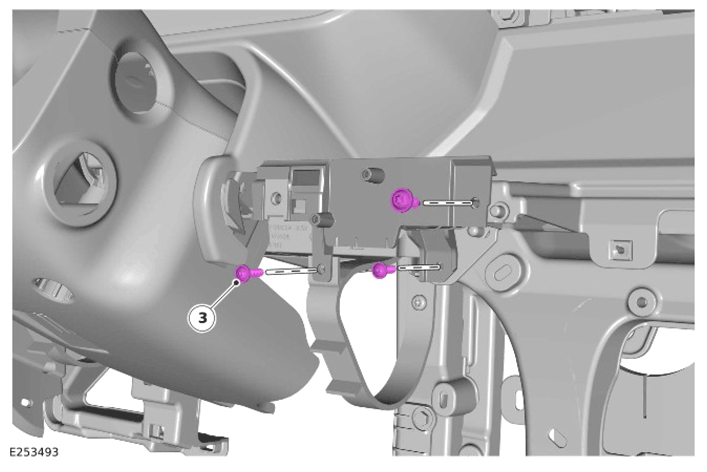

3	Instrument panel center upper tray bracket screw	1.7	-	15

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	Nm	LB-FT	LB-IN

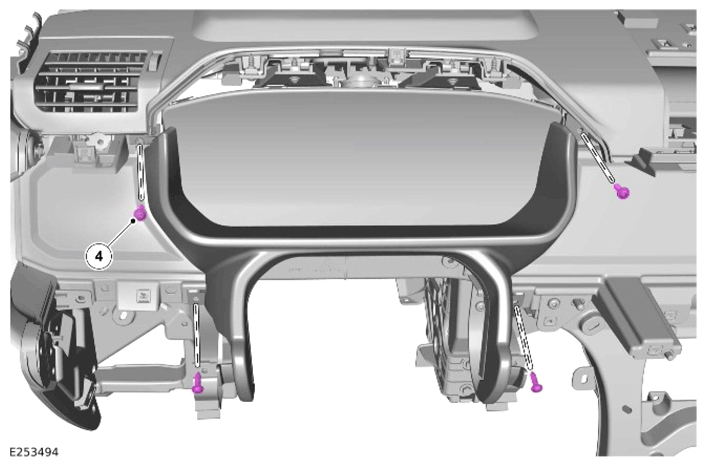

4	Steering column upper trim panel screw	1.7	-	15

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	Nm	LB-FT	LB-IN

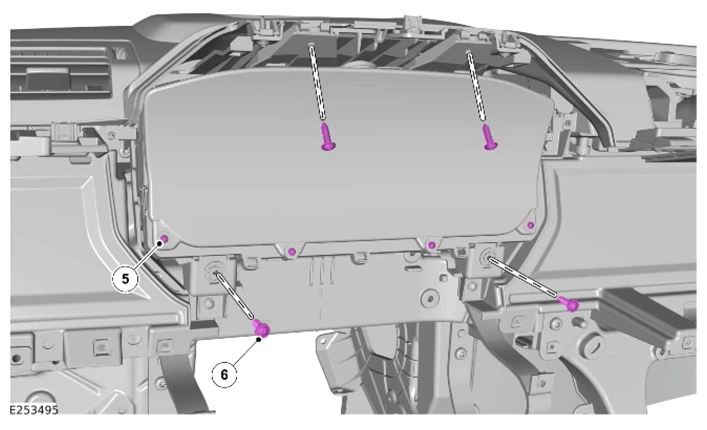

5	Instrument Cluster (IC) lens screw	2	-	18
6	IC screw	1.7	-	15
