Instrument Cluster Lens (G2323749): Installation

  1. CAUTION: Take extra care not to damage the component.

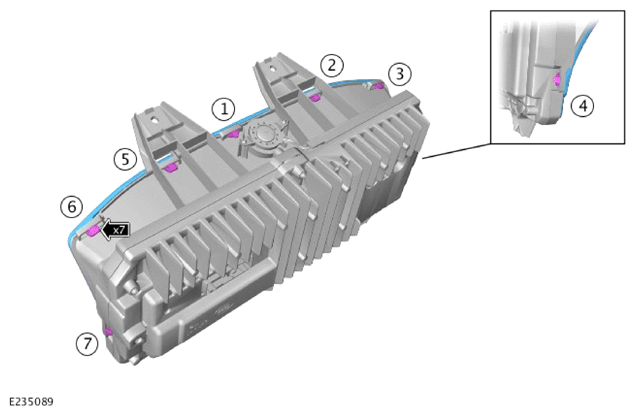

    G14454047Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the Instrument Cluster (IC) lens to the 7 clips in the sequence shown.
    • Install and tighten the 4 screws.

      Torque  : 2 Nm

  2. Install the IC.

    Refer to: INSTRUMENT CLUSTER

  3. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
