Instrument Cluster (G2323748): Removal

NOTE:
  • When a new instrument cluster is to be installed, the Jaguar Land Rover (JLR) approved diagnostic system must be connected to the vehicle and the instrument cluster renewal procedure followed. This will allow vehicle coding data and current service interval data to be correctly installed to the new instrument cluster.
  • For non-NAS markets - If a new instrument cluster is to be installed, a new Remote Function Actuator (RFA) will be required. All vehicle keys must be presented to complete the RFA  renewal.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. CAUTION: If the software number is K8D2-14C104-AC or L8B2-14C104-AC, a new RFA  will be required.
    NOTE: Non-NAS Markets only.

    Using the Land Rover diagnostic equipment, read the RFA  software number.

    General Equipment: Land Rover diagnostic equipment

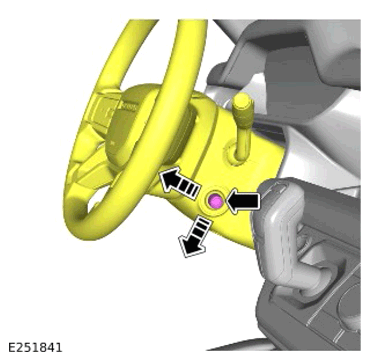

  2. G15310457Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Position the steering wheel as illustrated.

  3. Disconnect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  4. Remove the instrument panel lower trim.

    Refer to: DRIVERS INSTRUMENT PANEL LOWER TRIM

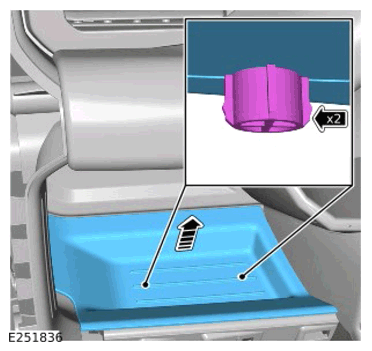

  5. G15310458Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the instrument panel left upper tray at the 2 fasteners.

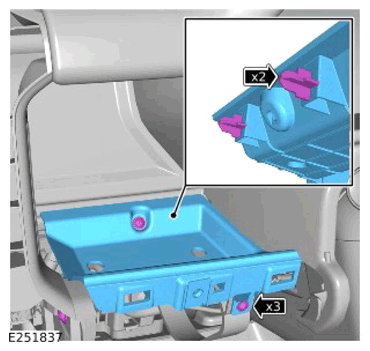

  6. G15310459Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws and 1 bolt.
    • Remove the bracket of the instrument panel left upper tray.

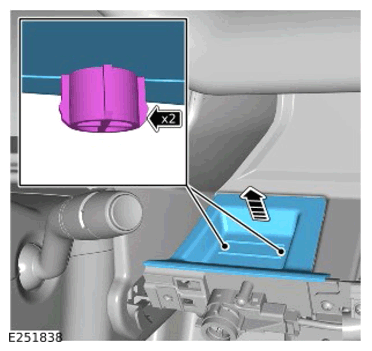

  7. G15310460Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the instrument panel center upper tray at the 2 fasteners.

  8. CAUTION: Take extra care not to damage the component.

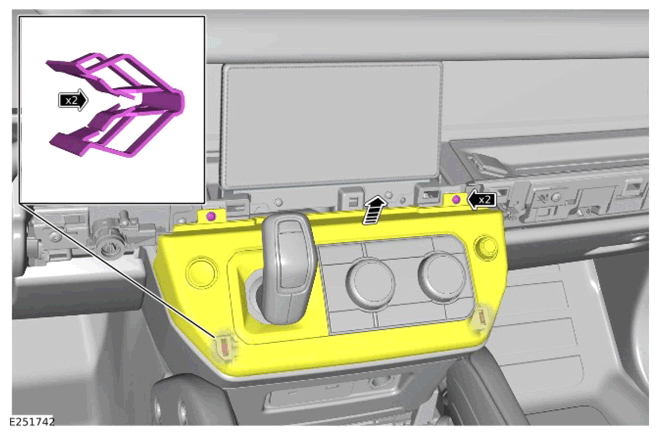

    G15309325Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Release the trim panel at the 2 clips.

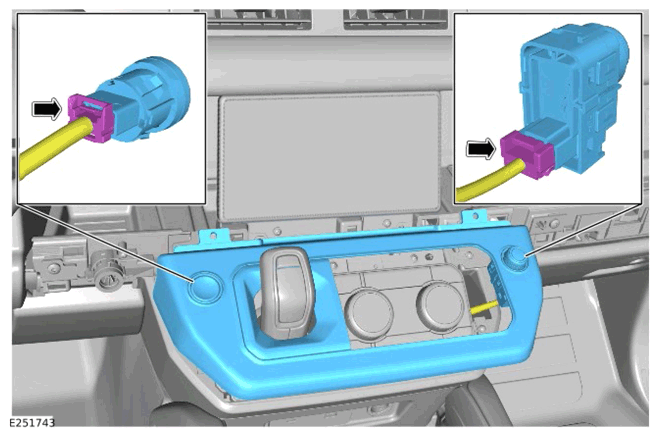

  9. G15309326Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors from the 2 switches.
    • Remove the trim panel.

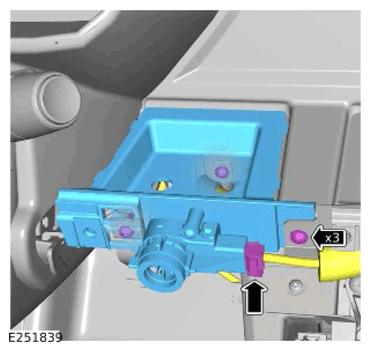

  10. G15310463Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Disconnect the electrical connector from the in-vehicle temperature sensor.
    • Remove the bracket of the instrument panel center upper tray.
  11. CAUTION:
    • Do not use metal tools during this operation, removal of the component(s) must be completed with a plastic trim tool.
    • Take extra care not to damage the component.

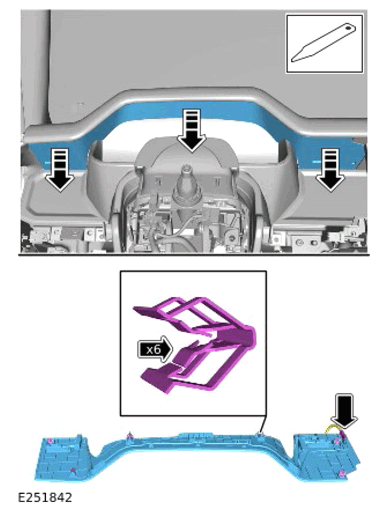

    G15310182Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a suitable plastic trim tool, release the 6 clips.
    • Disconnect the electrical connector from the ambience lighting wiring harness.
    • Remove the instrument cluster upper trim panel.

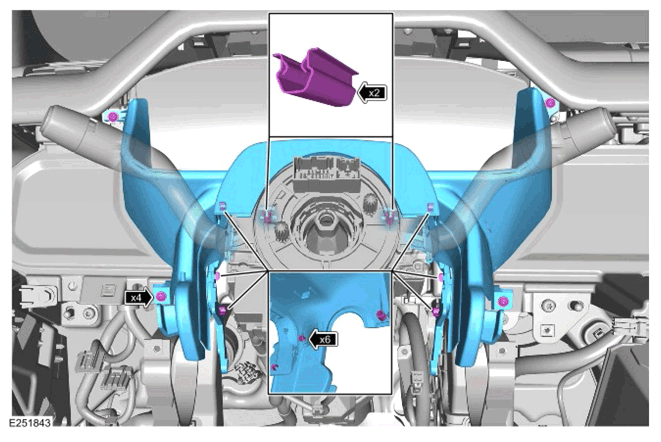

  12. G15310465Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 8 clips.
    • Remove the 4 screws.
    • Remove the steering column upper trim panel.
  13. CAUTION: Take extra care not to damage the component.

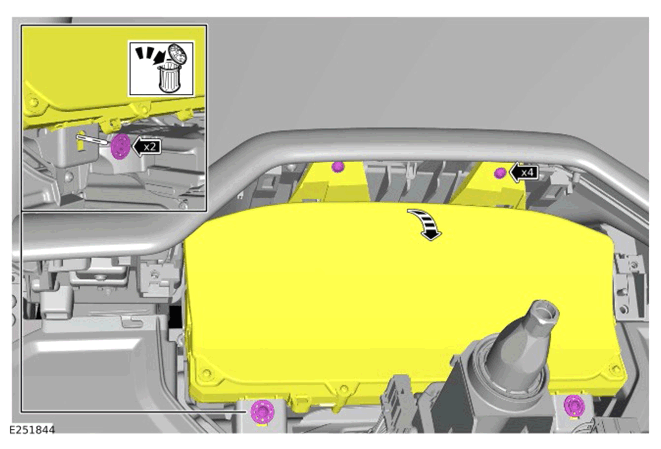

    G15310466Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 screws.
    • Remove and discard the 2 fasteners.
    • Release the instrument cluster.

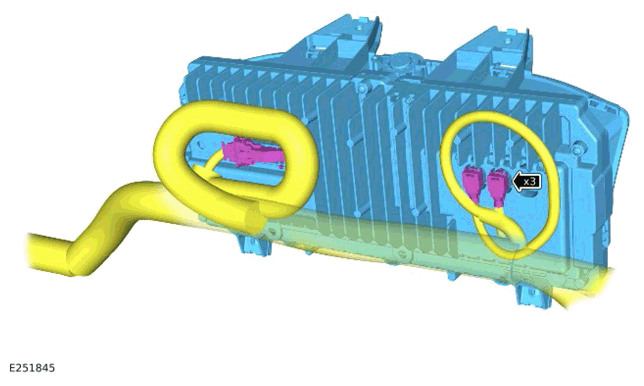

  14. G15310467Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 3 electrical connectors from the instrument cluster.
    • Remove the instrument cluster.
