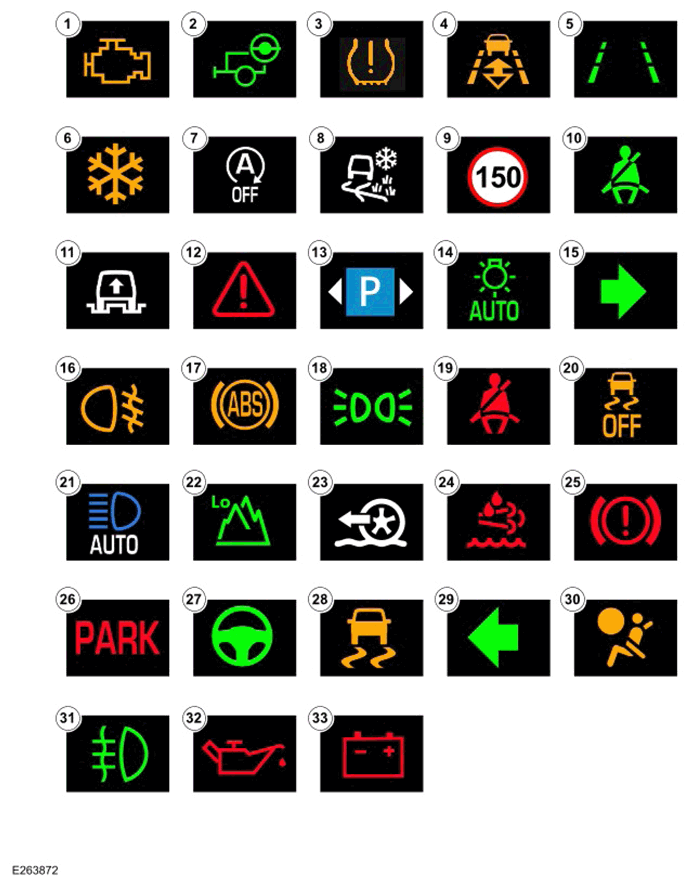

Warning Indicators
| ITEM | DESCRIPTION |
|---|---|
| 1 | Malfunction Indicator Lamp (MIL) warning indicator (amber) |
| 2 | Trailer turn signal warning indicator (green) |
| 3 | Tire Pressure Monitoring System Control Module (TPM) warning indicator (amber) |
| 4 | Follow mode warning indicator (amber) |
| 5 | Lane departure warning (green) |
| 6 | External temperature warning (amber) |
| 7 | Auto stop/start warning indicator |
| 8 | Grass gravel snow |
| 9 | Traffic sign speed |
| 10 | Seatbelt warning indicator (green) |
| 11 | Access mode indicator |
| 12 | Critical warning indicator (red) |
| 13 | Valid parking spaces on both sides |
| 14 | Auto light |
| 15 | Turn signal indicator active (green) |
| 16 | Rear fog lamps active warning indicator (amber) |
| 17 | Anti-Lock Brake System Control Module (ABS) warning indicator (amber) |
| 18 | Side lamps active warning indicator (green) |
| 19 | Seatbelt warning indicator (red) |
| 20 | Dynamic Stability Control (DSC) OFF warning indicator (amber) |
| 21 | Auto High Beam (AHB) active warning indicator (blue) |
| 22 | Range change selection |
| 23 | Low traction launch |
| 24 | Diesel Exhaust Fluid (DEF) (red) |
| 25 | Brake system warning indicator (red) |
| 26 | Electric Park Brake (EPB) system warning indicator (red) |
| 27 | Steering assist active (green) |
| 28 | DSC active warning indicator (amber) |
| 29 | Turn signal indicator active (green) |
| 30 | Airbag warning indicator (amber) |
| 31 | Front fog lamps active warning indicator (green) |
| 32 | Oil pressure warning indicator (red) |
| 33 | Charge warning indicator (red) |
The IPC features a number of warning indicators. The warning indicators are located in various positions in the IPC . The warning indicators illuminate in 1 of 5 colors which indicate at the level of importance of the warning as follows:
- Red = Warning
- Yellow = Caution
- Green = System operative
- Blue = Headlamp high beam operative
- White = Information.
The warning indicators are mainly located in 3 groups:
- In the speedometer display
- In the tachometer display
- In a central position at the top of the message center.
The IPC illuminates the warning indicators through signals from other system control modules and sensors. These signals are received by the IPC on the High Speed (HS) Controller Area Network (CAN) Human Machine Interface (HMI) systems bus. Some indicators are activated by an external system control module but the IPC contains the control logic.
