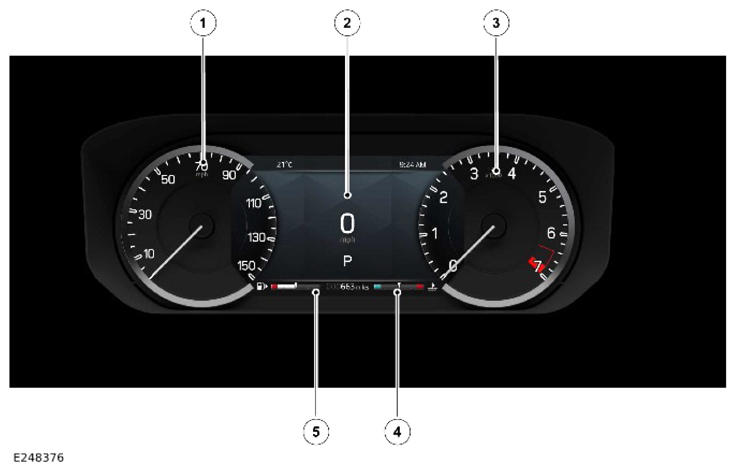

Instrument Panel Cluster - Conventional Display
| ITEM | DESCRIPTION |
|---|---|
| 1 | Speedometer |
| 2 | Message center |
| 3 | Tachometer |
| 4 | Engine coolant temperature gauge |
| 5 | Fuel gauge |
The IPC is located in the instrument panel. The IPC comprises 2 analog gauges, the speedometer and tachometer. Between the analog gauges, a 7 inch TFT display is provided for driver information.
The analog speedometer and tachometer are located in the IPC . The speedometer and tachometer are each driven by an electronic stepper motor. The characteristics of this type of motor produce damping of the pointer needle. Both of the gauges return to their respective zero positions when the ignition is switched OFF.
