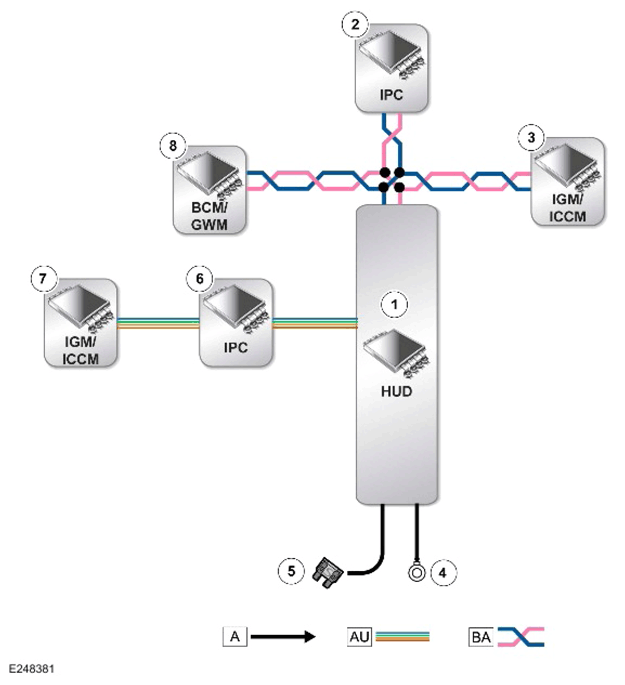

Control Diagram - 2 Of 2 - Head Up Display

G15310455Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = HARDWIRED: AU = APIX2: BA = HS CAN HMI SYSTEMS BUS.

ITEM DESCRIPTION
1 HUD
2 IPC
3 IGM/ICCM
4 Ground
5 Power supply
6 IPC
7 IGM/ICCM
8 BCM  /GWM
