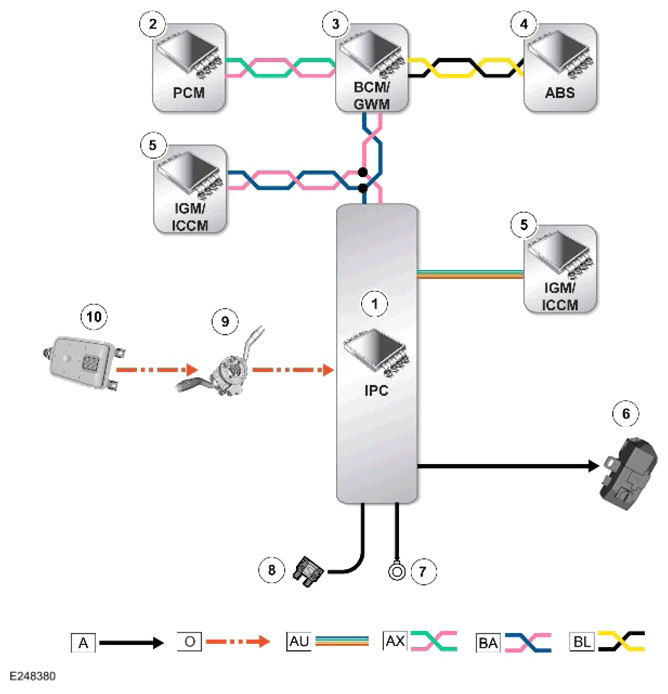

Control Diagram - 1 Of 2 - Instrument Panel Cluster
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: O = LIN : AU = APIX2: AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
IPC |
| 2 |
PCM |
| 3 |
BCM
/GWM |
| 4 |
ABS |
| 5 |
IGM/ICCM |
| 6 |
VIM |
| 7 |
Ground |
| 8 |
Power supply |
| 9 |
SWM |
| 10 |
Left steering wheel switch |
