Piston Cooling Oil Jet

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

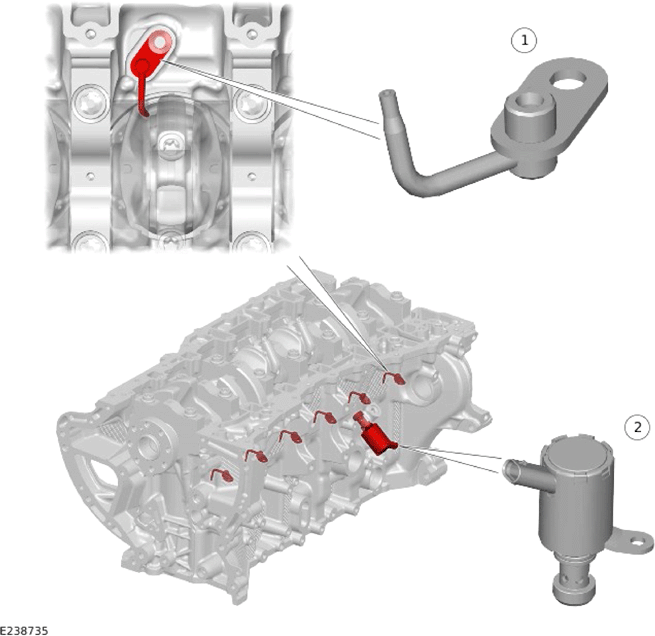

ITEM	DESCRIPTION
1	Piston cooling oil jet (quantity 6)
2	Piston cooling oil jet solenoid

The 6 piston cooling oil jets are located in the cylinder block. Each piston cooling oil jet is located adjacent to a cylinder and secured in the cylinder block with a bolt.

The piston cooling oil jets provide piston and gudgeon pin cooling and lubrication. Each piston cooling jet has a single outlet nozzle, which sprays oil into the cooling chamber in the piston. The jets are supplied by pressurized oil from the variable flow oil pump with integral vacuum pump through a drilling in the cylinder block. The oil supply to the drilling is controlled by a piston cooling oil jets solenoid, which is controlled by the PCM . The piston cooling oil jet solenoid can open and close the oil supply depending on engine speed and load.

In addition to supply oil to the piston cooling bore the oil lubricates the small end bearing and the gudgeon pin.
