Mass Air Flow And Temperature Sensor (G2815897): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: The ignition must be set to the OFF position before completing the following procedure.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Remove the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

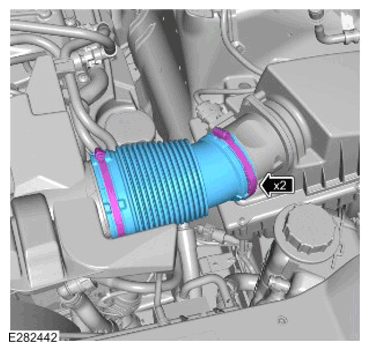

- Release the 2 clamps.
- Remove the clean air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

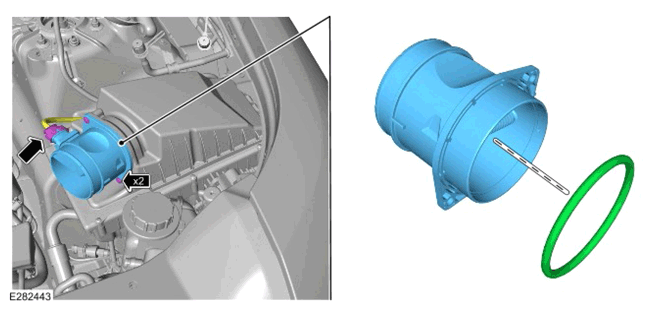

- Disconnect the electrical connector from the Mass Air Flow and Temperature (MAFT) sensor.
- Remove the 2 screws.
- Remove the MAFT sensor.
- Remove and discard the O-ring seal.
