Manifold Absolute Pressure And Temperature Sensor (G2817135): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - V8 S/C 5.0L PETROL
Remove the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

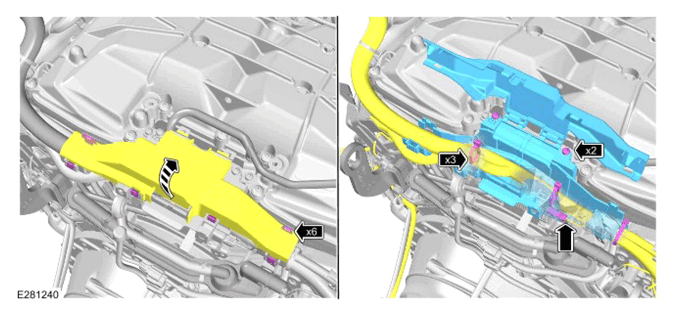

- Open the cover.
- Disconnect the electrical connector.
- Cut and remove the 3 cable ties.
- Remove and discard the 2 bolts.
- Remove the wiring bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

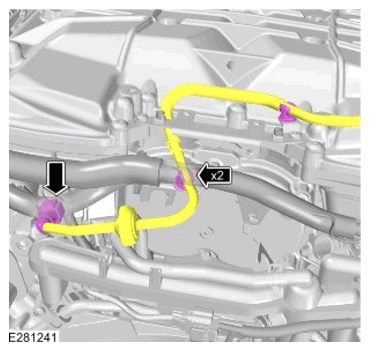

- Release the 2 clips.
- Disconnect the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the Manifold Absolute Pressure and Temperature sensor (MAPT).
- Remove the bolt.
- Remove the MAPT .
