Manifold Absolute Pressure And Temperature Sensor (G2817135): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

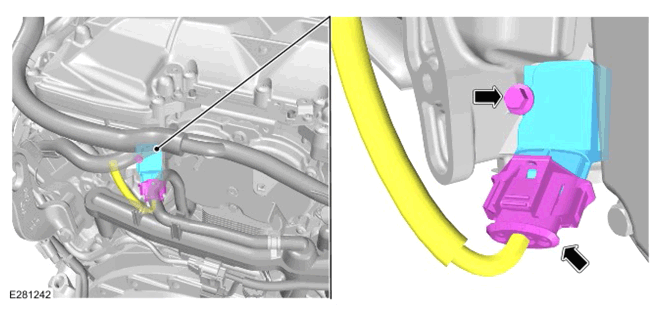

- Install the MAPT .
- Install and tighten the bolt.
  Torque : 5 Nm
- Connect the electrical connector to the MAPT .
- Connect the vacuum pipe.
- Secure the 2 clips.
- Install the wiring harness bracket.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
- Install the 3 cable ties.
- Connect the electrical connector.
- Close the cover.
Install the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Install the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - V8 S/C 5.0L PETROL
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
