Left Variable Camshaft Timing Solenoid (G2849398): Installation

WARNING: This page is about a different variant/trim than selected.

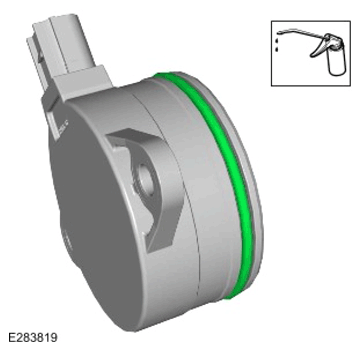

  1. G15306901Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lubricate the VCT  solenoid O-ring seal with clean engine oil.

    • Install the VCT  solenoid.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

    • Connect the electrical connector to the VCT  solenoid.
  3. Install the thermostat housing.

    Refer to: THERMOSTAT HOUSING

  4. Connect the 12V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
