Left Pre Catalyst Heated Oxygen Sensor (G2823237): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Remove the transmission undershield.

    Refer to: TRANSMISSION UNDERSHIELD

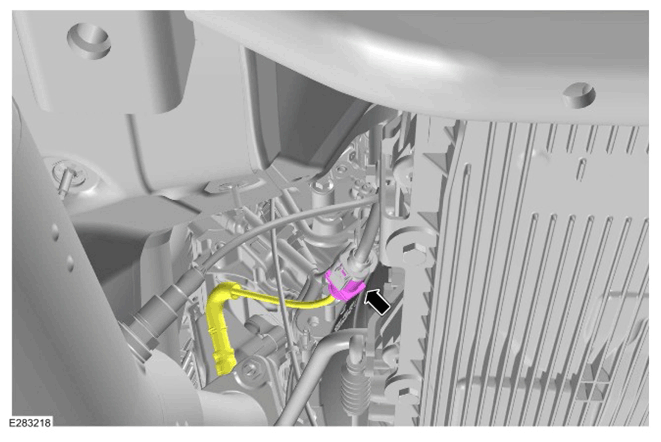

  3. G15306889Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector from the left pre Heated Oxygen Sensor (HO2S).

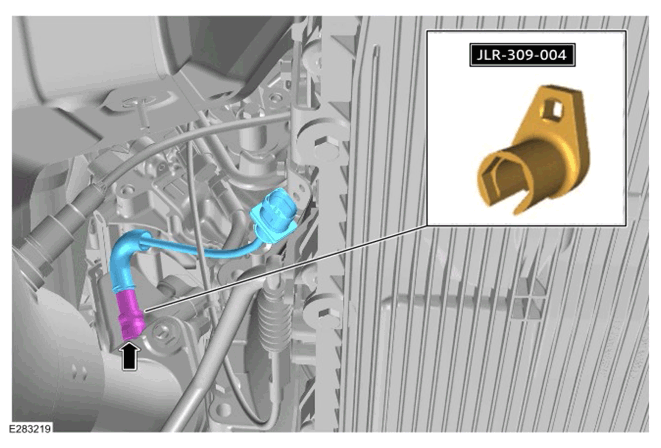

  4. G15306890Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the left pre HO2S  .

    Remove the Special Tool(s): JLR-309-004
