Left Post Catalyst Heated Oxygen Sensor (G2796694): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Remove the transmission undershield.

    Refer to: TRANSMISSION UNDERSHIELD

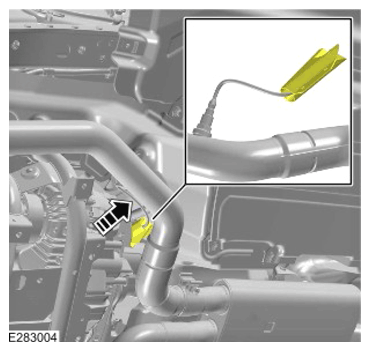

  3. G15306872Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the left post catalyst Heated Oxygen Sensor (HO2S) electrical connector heatshield.

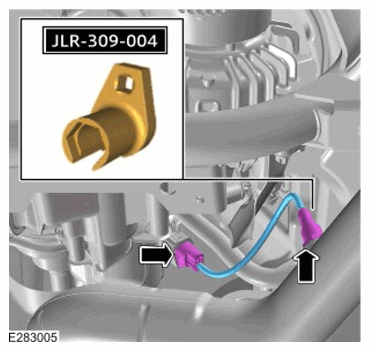

  4. G15306873Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the left post catalyst HO2S  .
    • Use the special tool to remove the left post catalyst HO2S  .

      Special Tool(s): JLR-309-004
