Left Mid Catalyst Heated Oxygen Sensor (G2796693): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Remove the transmission undershield.

    Refer to: TRANSMISSION UNDERSHIELD

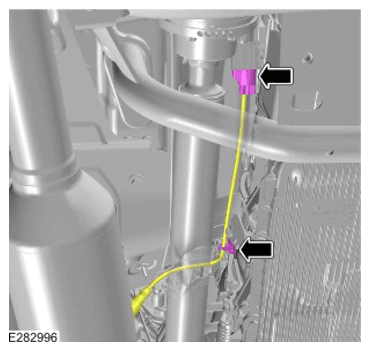

  3. G15306868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the left mid catalyst Heated Oxygen Sensor (HO2S).
    • Release the wiring harness from the clip.

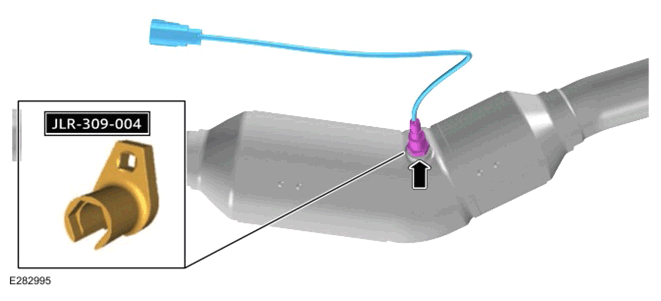

  4. G15306869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the left mid catalyst HO2S  .

    Special Tool(s): JLR-309-004
