Left Camshaft Position Sensor (G2796674): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: The ignition must be set to the OFF position before completing the following procedure.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the thermostat housing.
Refer to: THERMOSTAT HOUSING

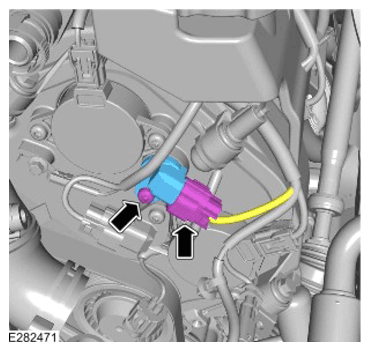

NOTE: Illustration shows the exhaust Camshaft Position Sensor (CMP) sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the CMP .
- Remove the bolt.
- Remove the CMP .

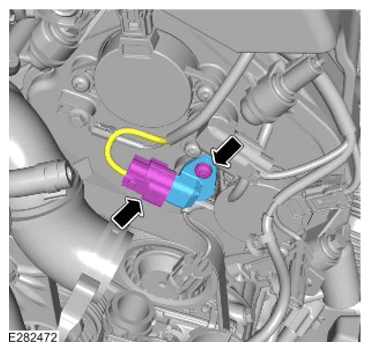

NOTE: Illustration shows the intake CMP .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector from the CMP .
- Remove the bolt.
- Remove the CMP .
