Fuel Rail Pressure And Temperature Sensor (G2859239): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions, when preforming any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Clean all the fuel line unions and the surrounding area before working on the fuel system.
Refer to: FUEL INJECTION COMPONENT CLEANING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

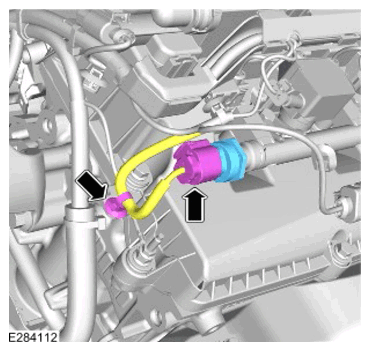

- Disconnect the 2 pipes.
- Release the pipe.
- Remove the Noise, Vibration and Harshness (NVH) cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Disconnect the electrical connector.
- Remove the Fuel Rail Pressure and Temperature (FRPT) sensor.
