Fuel Rail Pressure And Temperature Sensor (G2859239): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: During lubrication, keep the component vertically as shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Lubricate the FRPT sensor with Molykote W15 as shown.
- Install and tighten the FRPT sensor.
  Torque : 38 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

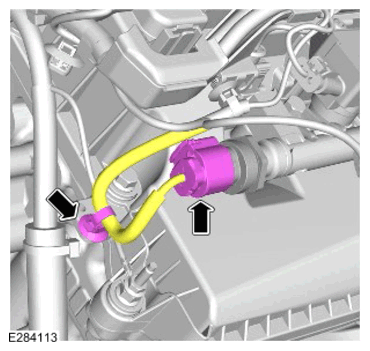

- Connect the electrical connector.
- Secure the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

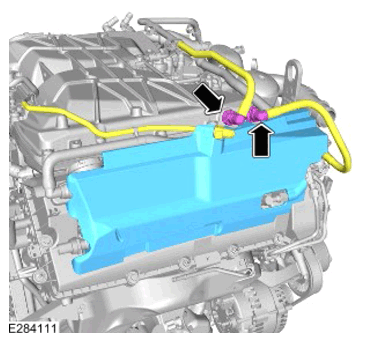

- Install the NVH cover.
- Secure the pipe.
- Connect the 2 pipes.
Install the cowl panel.
Refer to: COWL PANEL
Install the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Bleed the fuel system.
Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING
