Engine Coolant Temperature Sensor (G2796678): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Since injury such as scalding could be caused by escaping steam or coolant, do not remove the engine coolant temperature sensor while the system is hot.
CAUTION:
The ignition must be set to the OFF position before completing the following procedure.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - V8 S/C 5.0L PETROL

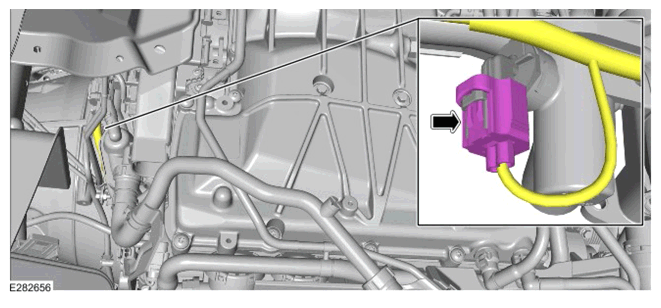

Disconnect the electrical connector from the engine coolant temperature sensor.
-
CAUTION: Be prepared to collect escaping coolant.

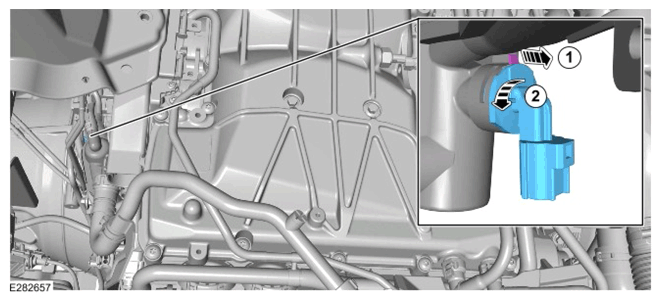

- Pull the locking tab as illustrated.
- Rotate and remove the engine coolant temperature sensor.
