Engine Coolant Temperature Sensor (G2796678): Installation

WARNING: This page is about a different variant/trim than selected.

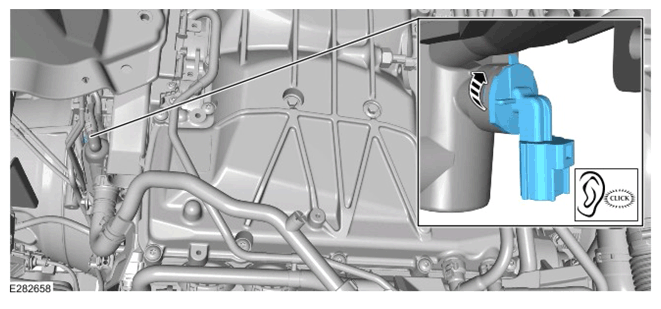

  1. CAUTION: An audible click is heard when the engine coolant temperature sensor is located correctly.
    G15306835Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Rotate and install the engine coolant temperature sensor as illustrated.

  2. Connect the electrical connector to the engine coolant temperature sensor.
  3. Install the secondary bulkhead center panel.

    Refer to: SECONDARY BULKHEAD CENTER PANEL - V8 S/C 5.0L PETROL

  4. Fill the engine cooling system with the correct amount of coolant.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
