Crankshaft Position Sensor (G2796676): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  2. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  3. Remove the transmission undershield.

    Refer to: TRANSMISSION UNDERSHIELD

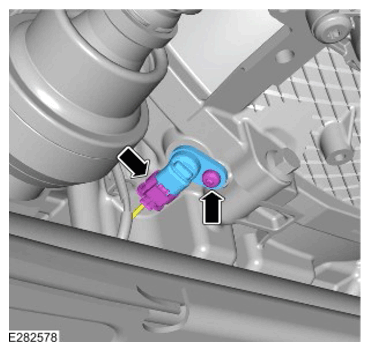

  4. G15306821Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector from the Crankshaft Position Sensor (CKP).
    • Remove the bolt.
    • Remove the CKP  .
