Oil Pressure And Temperature Sensor (G2318746): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Be prepared to collect escaping oil.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  2. Remove the cooling fan.

    Refer to: VISCOUS COOLING FAN

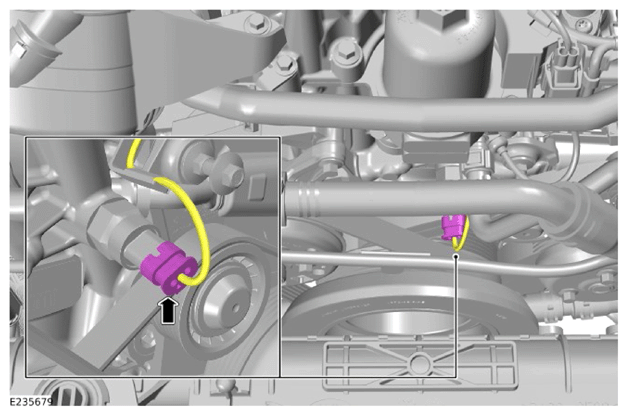

  3. G14066835Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

  4. NOTE: Position an absorbent cloth to collect escaping fluid.

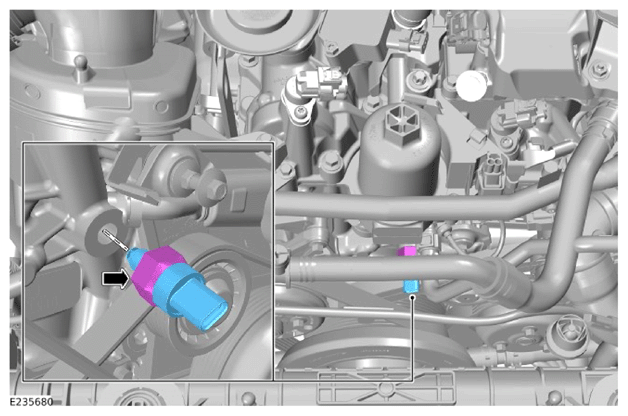

    G14066836Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the oil pressure and temperature sensor.
