Engine Coolant Temperature Sensor (G2416602): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the Belt Integrated Starter Generator (BISG).
Refer to: BELT INTEGRATED STARTER GENERATOR
Remove the air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Remove the air filter housing.
Refer to: AIR FILTER HOUSING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

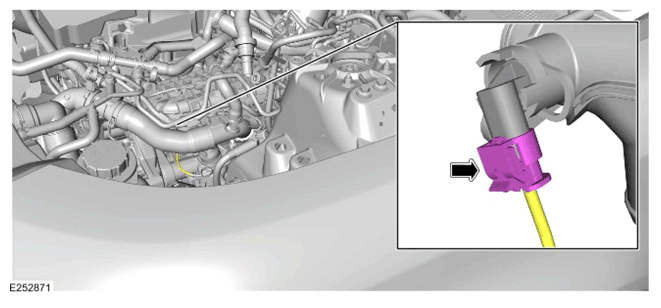

Disconnect the electrical connector from the Engine Coolant Temperature (ECT) sensor.
WARNING: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

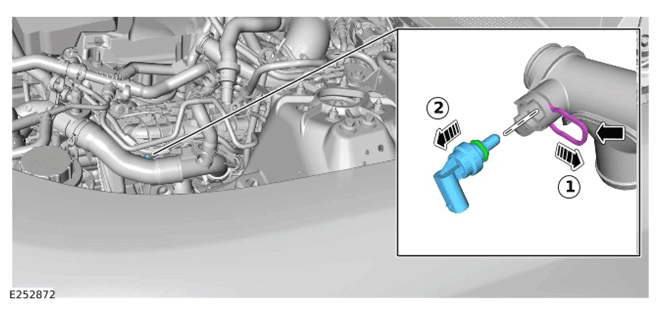

- Remove the ECT sensor clip.
- Remove the ECT sensor.
- Remove discard the O-ring seal.
