Adaptive Speed Control Module - Vehicles Without: SVR (G2160223): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the 12V system.
Refer to: SPECIFICATIONS
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Remove the front bumper.
Refer to: FRONT BUMPER

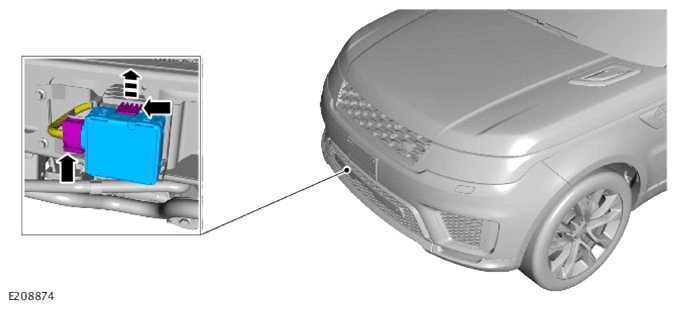

- Disconnect the electrical connector.
- Remove the adaptive cruise control module.
