Spark Plugs (G2796646): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 fuel lines.
- Remove the oil filler cap.
- Remove the Noise, Vibration and Harshness (NVH) material.
- Install the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 4 electrical connectors.
- Remove the 4 bolts.
- Remove the 4 ignition coil-on-plugs.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the pipe connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

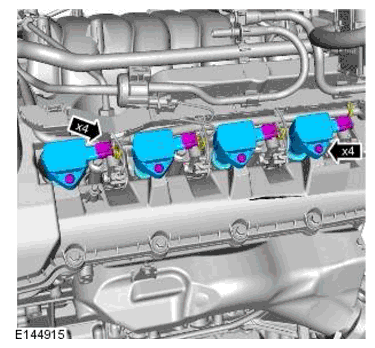

Disconnect the 4 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

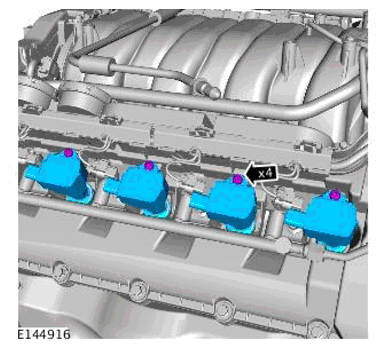

- Remove the 4 bolts.
- Remove the 4 ignition coil-on-plugs.
NOTE: Repeat this step on the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

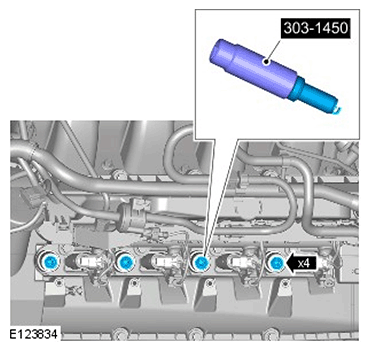

Remove the 4 spark plugs.

Special Tool(s): 303-1450
