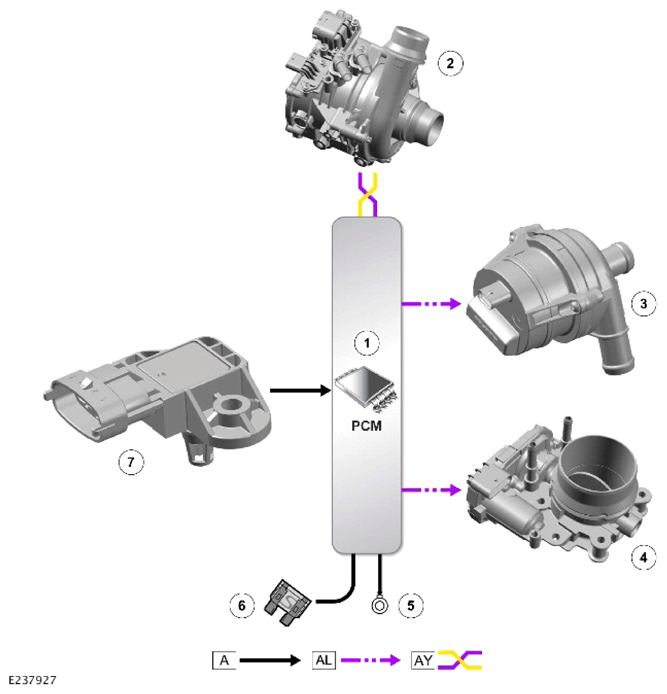

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Electric supercharger |
| 3 | Charge air coolant pump |
| 4 | Electric supercharger bypass valve |
| 5 | Ground |
| 6 | Power supply |
| 7 | Pressure and temperature sensor - Charge air cooler |
