Evaporative Emissions - V8 S/C 5.0L Petrol: Specifications
WARNING: This page is about a different variant/trim than selected.

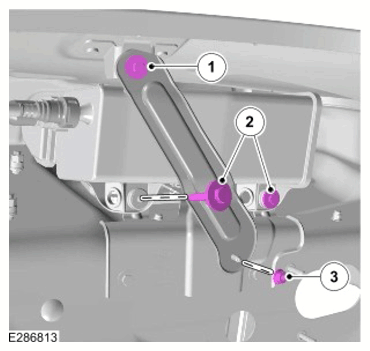

| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATIONS
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Evaporative emission canister bracket bolt | 10 | 7 | - |
| 2 | Evaporative emission canister to body bolts | 10 | 7 | - |
| 3 | Evaporative emission canister bracket nut | 10 | 7 | - |
NOTE:
This component is available at the NAS and China market vehicles only.

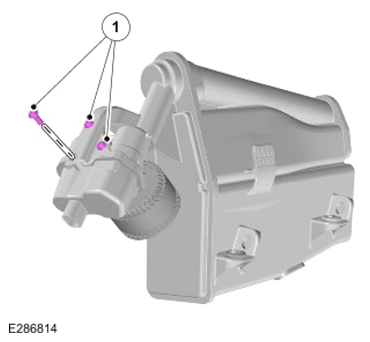

| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATIONS
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Diagnostic module tank leakage pump screws | 1.8 | - | 16 |
