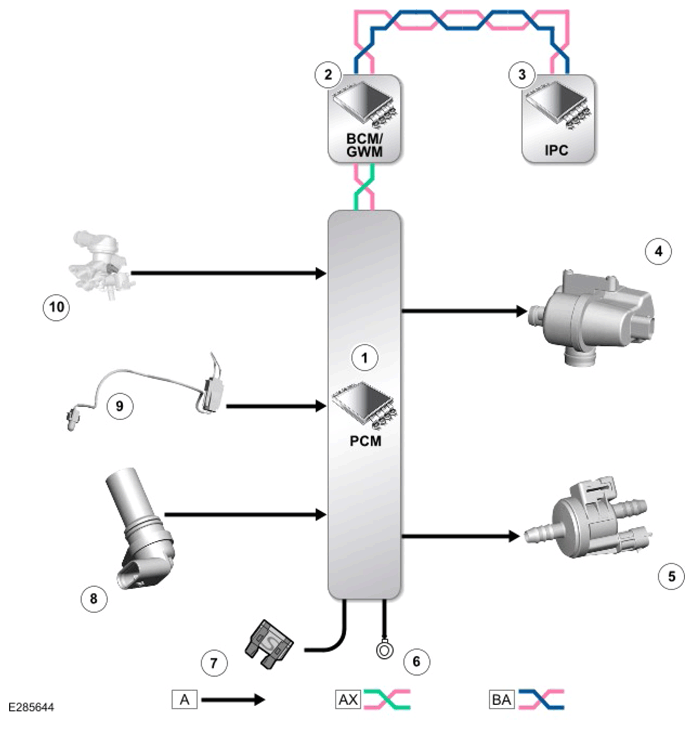

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AX = FLEXRAY: BA = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 3 | IPC |
| 4 | DMTL pump |
| 5 | Purge valve |
| 6 | Ground |
| 7 | Power supply |
| 8 | Crankshaft Position Sensor (CKP) |
| 9 | Ambient Air Temperature (AAT) sensor |
| 10 | Engine Coolant Temperature sensor (ECT) |
