Starter Motor (G2796642): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Note the position of the cable.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

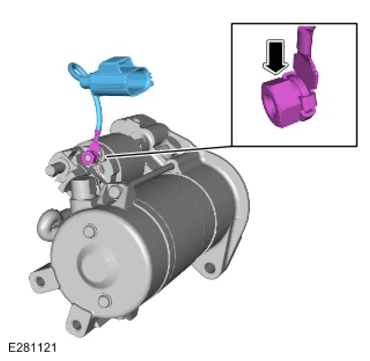

- Install the cable to the starter motor.
- Tighten the nut.
  Torque : 7 Nm
NOTE: Note the different lengths of the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

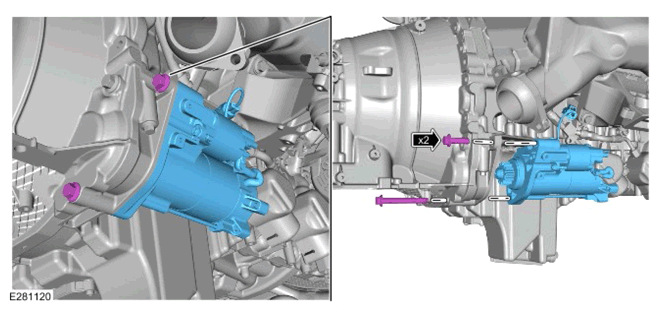

- Install the starter motor as illustrated.
- Install and tighten the 2 starter motor bolts.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

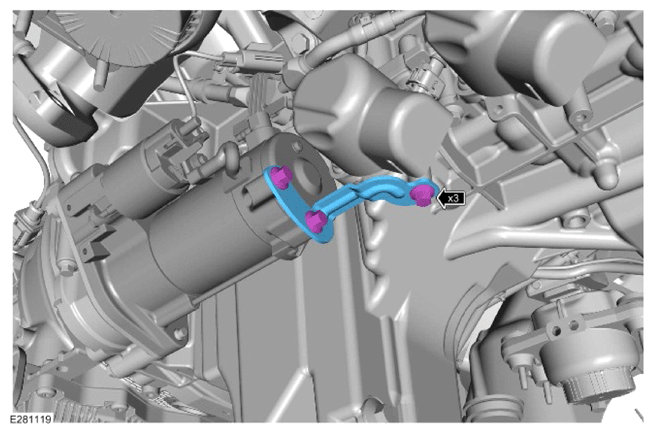

- Install the starter motor bracket.
- Install and tighten the 3 bolts.
  Torque : 47 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

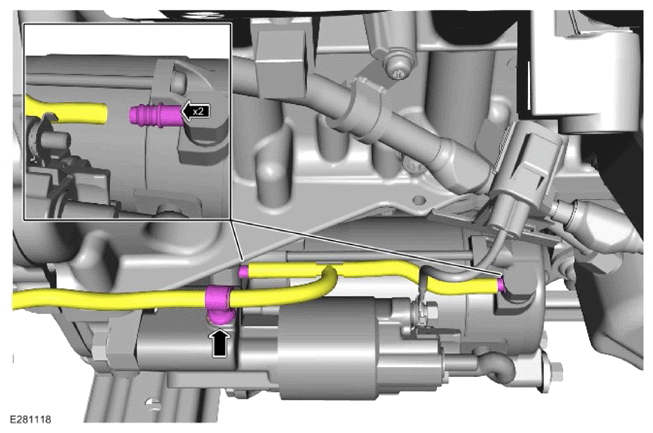

- Reposition the breather pipe assembly to the starter motor.
- Connect the 2 breather pipe connectors.
- Secure the breather pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

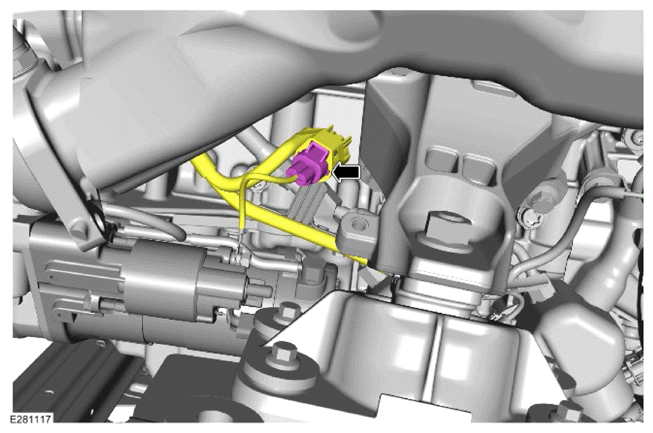

Connect the starter motor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

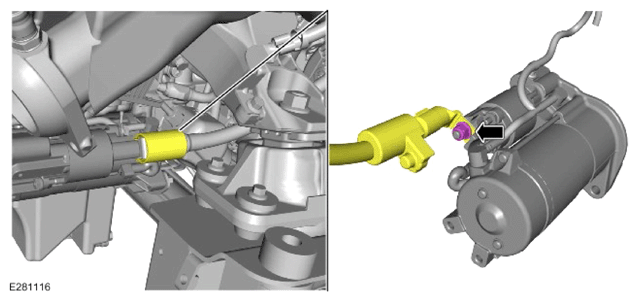

- Connect the positive cable to the starter motor.
- Install and tighten the nut.
  Torque : 12 Nm
- Reposition the positive cable shield to the original position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the heatshield to the starter motor.
- Install and tighten the 2 bolts.
  Torque : 6 Nm
Install the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
