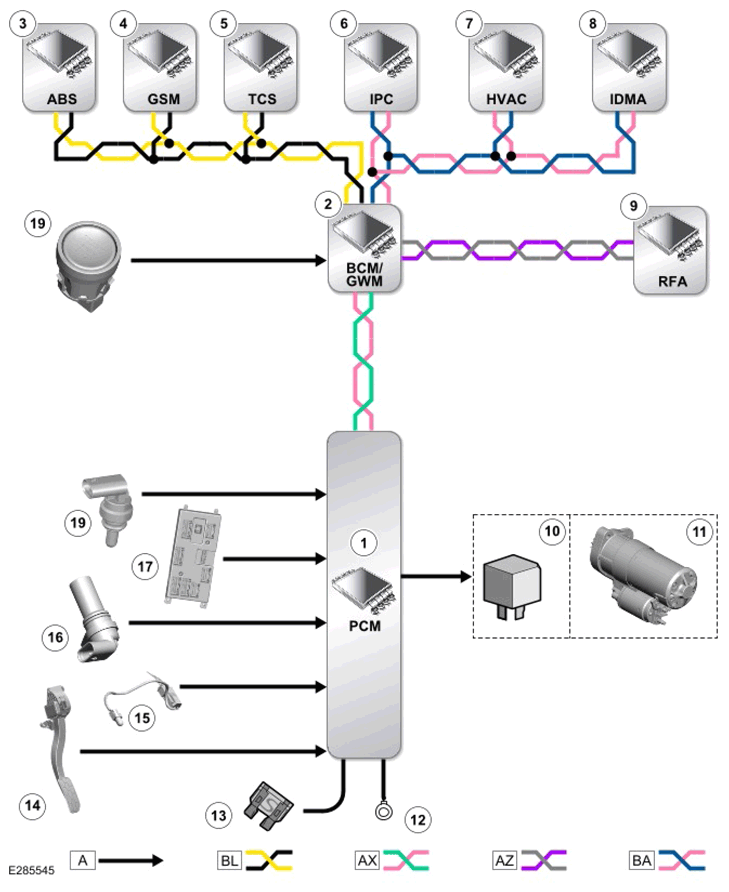

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: BL = HS CAN UNDERBODY SYSTEMS BUS: AX = FLEXRAY: AZ = HS CAN BODY SYSTEMS BUS: BA = HS CAN HMI SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | BCM /GWM |
| 3 | Integrated Power Brake control module Anti-Lock Brake System Control Module (ABS) |
| 4 | Gear Shift Module (GSM) |
| 5 | TCS |
| 6 | IPC |
| 7 | HVAC |
| 8 | IDMA |
| 9 | RFA |
| 10 | Starter relay |
| 11 | Starter motor |
| 12 | Ground |
| 13 | Power supply |
| 14 | Accelerator Pedal Position (APP) sensor |
| 15 | Ambient Air Temperature (AAT) sensor |
| 16 | CKP |
| 17 | Crank signal - BCM /GWM |
| 18 | Engine Coolant Temperature sensor (ECT) |
| 19 | Ignition switch |
